Toyota TACOMA — SIDE WINDOW

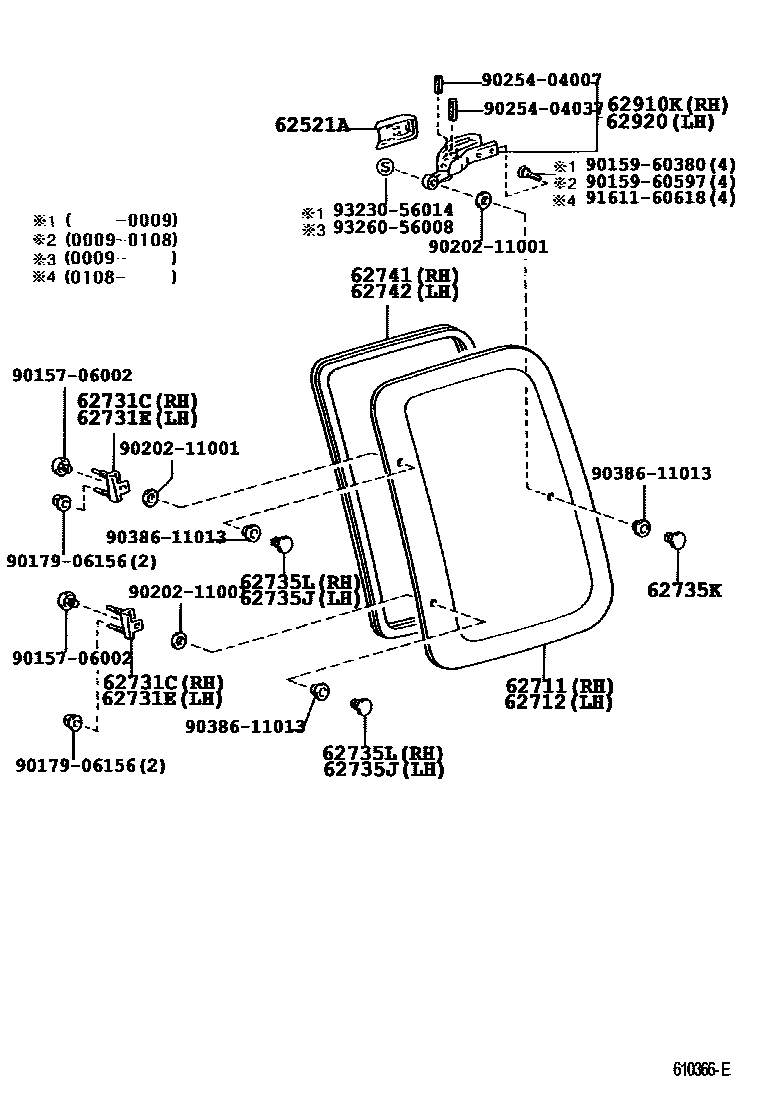

Parts diagram
62521ACOVER, QUARTER TRIM
main62521-89102-B0×2i199501-199706
BLUISH GRAY,TRIM1#
main62521-89102-B1×2i199706-200009
MD. MOON MIST,TRIM1#
main62521-89102-E1×2i199501-200009
OAK,TRIM4#
62711GLASS, QUARTER WINDOW, RH
main62711-04020i199501-200009
*TEM,T=3.4,BLUE
main62711-04030i199501-199808
*TEM,T=3.4,GRAY
main62711-04050i199808-200009
*TEM,T=3.4,GRAY
main62711-04060i200009-200309
*TEM,T=3.4,GREEN
main62711-04070i200009
*TEM,T=3.5,GRAY
main62711-04080i200309
*TT,T=3.4,GREEN
62712GLASS, QUARTER WINDOW, LH
main62712-04020i199501-200009
*TEM,T=3.4,BLUE
main62712-04030i199501-199808
*TEM,T=3.4,GRAY
main62712-04050i199808-200009
*TEM,T=3.4,GRAY
main62712-04060i200009-200309
*TEM,T=3.4,GREEN
main62712-04070i200009
*TEM,T=3.5,GRAY
main62712-04080i200309
*TT,T=3.4,GREEN
62731CHINGE, QUARTER WINDOW, RH
main62731-89101×2i199501-199706
UPPER
main62731-89102i199706-200009
LOWER
62731EHINGE, QUARTER WINDOW, LH
main62731-89101i200009
LOWER
main62731-89102i199706-200009
UPPER
62735JRETAINER, QUARTER WINDOW HINGE, LH
main62735-35010×4i199501-199706
62735KRETAINER, QUARTER WINDOW HINGE
main62735-35010×2i199501-200009
62735LRETAINER, QUARTER WINDOW HINGE, RH
main62735-35010×2i199706-200009
62741WEATHERSTRIP, QUARTER WINDOW, RH
main62741-04010i200009
(L)
main62741-35010i199501-200009
(J)
62742WEATHERSTRIP, QUARTER WINDOW, LH
main62742-04010i199706-200009
(L)
main62742-35010i199501-200009
(J)
62910KLOCK ASSY, QUARTER WINDOW, RH
main62910-35010-B0i199501-199706
BLUISH GRAY,TRIM1#
main62910-35010-B2i199706-200009
MD. MOON MIST,TRIM1#
main62910-35010-E0i199501-200009
OAK,TRIM4#
main62910-35030-B0i200009-200105
MD.CHARCOAL,TRIM1#
main62910-35030-E0i200009-200105
MD.OAK,TRIM4#
main62910-35031-B0i200105-200401
MD.CHARCOAL,TRIM1#
main62910-35031-E0i200105-200401
MD.OAK,TRIM4#
main62910-35032-B0i200402-200409
MD.CHARCOAL,TRIM1#
main62910-35032-E0i200402-200409
MD.OAK,TRIM4#
62920LOCK ASSY, QUARTER WINDOW, LH
main62910-35010-B0i199501-199706
BLUISH GRAY,TRIM1#
main62910-35010-B2i199706-200009
MD. MOON MIST,TRIM1#
main62910-35010-E0i199501-200009
OAK,TRIM4#
main62910-35030-B0i200009-200105
MD.CHARCOAL,TRIM1#
main62910-35030-E0i200009-200105
MD.OAK,TRIM4#
main62910-35031-B0i200105-200402
MD.CHARCOAL,TRIM1#
main62910-35031-E0i200105-200402
MD.OAK,TRIM4#
main62910-35032-B0i200402
MD.CHARCOAL,TRIM1#
main62910-35032-E0i200402
MD.OAK,TRIM4#
9015706002
main90157-06002
9015960380
main90159-60380
9015960597
main90159-60597
9017906156
main90179-06156
9020211001
main90202-11001
9025404007
main90254-04007
9025404037
main90254-04037
9038611013
main90386-11013
9161160618
main91611-60618
9323056014
main93230-56014
9326056008
main93260-56008

23 parts on this diagram · 1 diagram in section

SIDE WINDOW for Toyota TACOMA

This section contains 23 genuine Toyota parts for the SIDE WINDOW system of the Toyota TACOMA. Key components include: COVER, QUARTER TRIM, GLASS, QUARTER WINDOW, RH, GLASS, QUARTER WINDOW, LH, HINGE, QUARTER WINDOW, RH, HINGE, QUARTER WINDOW, LH.
