Toyota TACOMA — PARTIAL ENGINE ASSEMBLY

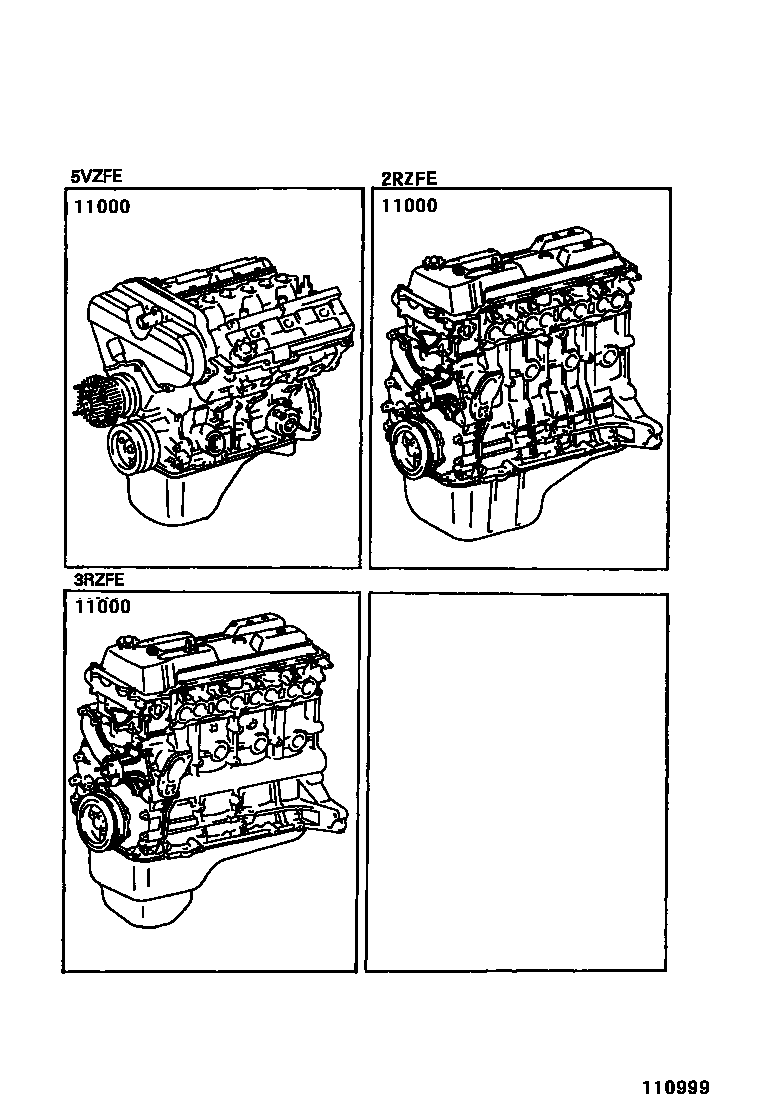

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-62180i199501-199608
main19000-62181i199608-199705
main19000-62182i199705-199708
sub12180-75021
main19000-62183i199708-199901
main19000-62220i199501-199608
main19000-62221i199608-199705
main19000-62222i199705-199708
sub12180-75021
main19000-62223i199708-199901
main19000-62243i199802-199901
main19000-62320i200009-200404
main19000-62350i199901-200009
main19000-62370i199901-200009
main19000-62380i199901-200009
main19000-62570i200404
main19000-62590i200404
main19000-75140i199501-199706
main19000-75300i199802-199804
main19000-75301i199804-200009
main19000-75330i199706-199804
main19000-75331i199804-200009
main19000-75510i199908-200009
CALIFORNIA(LEV) SPEC
main19000-75520i200009-200108
CALIFORNIA(LEV) SPEC
main19000-75690i200108-200404
main19000-75C80i200404
main19000-75C90i200404

1 parts on this diagram · 1 diagram in section
