Toyota TACOMA — MIRROR

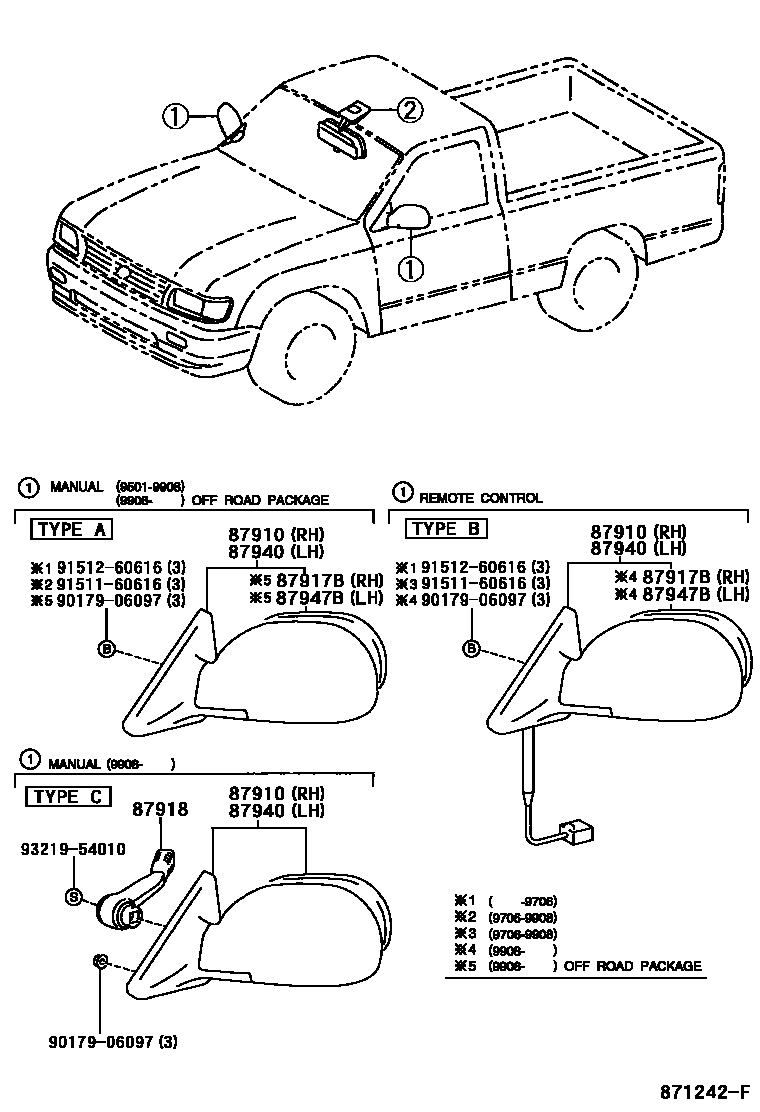

Parts diagram
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-04030i199501-199908
TYPE A:REFER TO ILLUSTRATION & MANUAL
main87910-04080i199908-200009
TYPE C:REFER TO ILLUSTRATION & MANUAL
main87910-04090-B0i200009-200409
TYPE C:REFER TO ILLUSTRATION & MANUAL,SILVER ME.,1C8
main87910-04090-C0i200009-200409
TYPE C:REFER TO ILLUSTRATION & MANUAL,BLACK MC.,209
main87910-04090-D0i199908-200009
TYPE C:REFER TO ILLUSTRATION & MANUAL,RED MM,3K4
main87910-04090-D1i200009-200409
TYPE C:REFER TO ILLUSTRATION & MANUAL,RED,3L5
main87910-04090-D2i200009-200409
TYPE C:REFER TO ILLUSTRATION & MANUAL,RED M.M.,3P1
main87910-35220i199501-199908
TYPE B:REFER TO ILLUSTRATION & ELECTRIC REMOTE CONTROL
main87910-35560i199908-200009
TYPE A:REFER TO ILLUSTRATION & OFF ROAD PACKAGE
main87910-35580i200009-200409
TYPE B:REFER TO ILLUSTRATION & ELECTRIC REMOTE CONTROL
main87910-35840i199908-200009
TYPE B:REFER TO ILLUSTRATION & ELECTRIC REMOTE CONTROL
87917BMIRROR, OUTER REAR VIEW, RH
main87931-35840i199908-200009
87918KNOB, CONTROL OUTER MIRROR
main87918-04010×2i199908-200009
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-04040i199501-199908
TYPE A:REFER TO ILLUSTRATION & MANUAL
main87940-04090i200009-200409
TYPE C:REFER TO ILLUSTRATION & MANUAL
main87940-04100-B0i200009-200409
TYPE C:REFER TO ILLUSTRATION & MANUAL,SILVER ME.,1C8
main87940-04100-C0i200009-200409
TYPE C:REFER TO ILLUSTRATION & MANUAL,BLACK MC.,209
main87940-04100-D0i199908-200009
TYPE C:REFER TO ILLUSTRATION & MANUAL,RED MM,3K4
main87940-04100-D1i200009-200409
TYPE C:REFER TO ILLUSTRATION & MANUAL,RED,3L5
main87940-04100-D2i200009-200409
TYPE C:REFER TO ILLUSTRATION & MANUAL,RED M.M.,3P1
main87940-35210i199501-199908
TYPE B:REFER TO ILLUSTRATION & ELECTRIC REMOTE CONTROL
main87940-35530i199908-200006
TYPE A:REFER TO ILLUSTRATION & OFF ROAD PACKAGE
main87940-35531i200006-200009
TYPE A:REFER TO ILLUSTRATION & OFF ROAD PACKAGE
main87940-35551i200009-200409
TYPE B:REFER TO ILLUSTRATION & ELECTRIC REMOTE CONTROL
main87940-35750i199908-200006
TYPE B:REFER TO ILLUSTRATION & ELECTRIC REMOTE CONTROL
main87940-35751i200006-200009
TYPE B:REFER TO ILLUSTRATION & ELECTRIC REMOTE CONTROL
87947BMIRROR, OUTER REAR VIEW, LH
main87961-35750i199908-200006
main87961-35751i200006-200009
9017906097
main90179-06097
9151160616
main91511-60616
9151260616
main91512-60616
9321954010
main93219-54010

9 parts on this diagram · 2 diagrams in section

MIRROR for Toyota TACOMA

This section contains 15 genuine Toyota parts for the MIRROR system of the Toyota TACOMA. Key components include: LENS AND COVER, MAP LAMP, MIRROR ASSY, INNER REAR VIEW, BULB, INNER REAR VIEW MIRROR LAMP, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH.
