Toyota TACOMA — METER

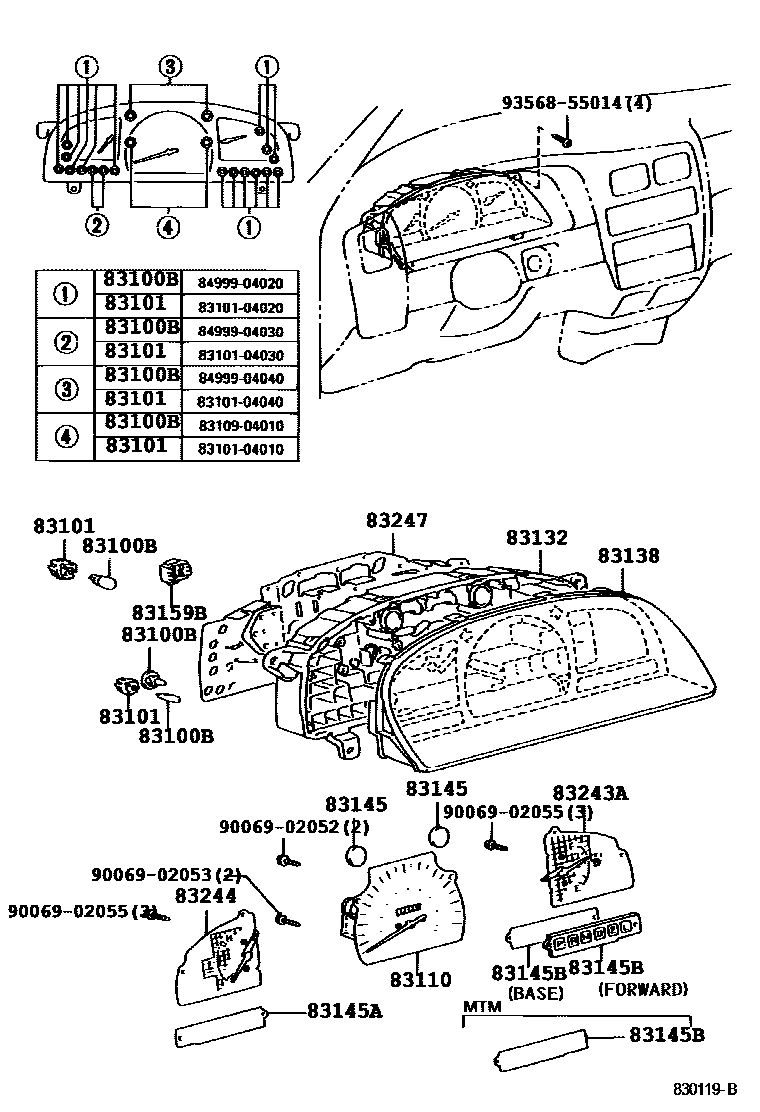

Parts diagram
83100BBULB, COMBINATION METER, NO.1
main83109-04010i199501-200009
14V 3.4W(GREEN CAP),NO.4
main83109-04020i200009-200409
14V 3.4W(AMBER CAP),NO.4
main83120-04050i200009-200409
12V 1.4W,W(SOCKET),NO.1
main83120-04070i200009-200109
14V 3.4W,W(SOCKET)
main83120-04090i199501-199706
14V 1.12W,NO.5
main83120-0W020i200109-200409
14V 2.0W,W(SOCKET),NO.2
main84999-04020i199501-200009
14V 1.4W,NO.1
main84999-04030i199501-200009
14V 2W,NO.2
main84999-04040i199501-200009
14V 3.4W,NO.3
main90010-06003i200009-200409
14V 3.0W,W(SOCKET),NO.5
main90011-11004i199706-200009
12V 3.0W,W(TACHOMETER),NO.3
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-04010i199501-200009
NO.4
main83101-04020i199501-200009
NO.1
main83101-04030i199501-200009
NO.2
main83101-04040i199501-200009
NO.3
main83101-04050i199706-200009
W(TACHOMETER),NO.3
83110SPEEDOMETER ASSY
main83110-04080i199501-199706
main83110-04090i199501-199609
CANADA SPEC
main83110-04100i199501-199706
W(TACHOMETER)
main83110-04110i199501-199706
W(TACHOMETER)
main83110-04120i199609-199706
CANADA SPEC & W(TACHOMETER)
main83110-04130i199501-199609
CANADA SPEC & W(TACHOMETER)
main83220-04010i199706-200009
main83220-04030i199706-200009
W(TACHOMETER)
main83220-04040i199706-199909
CANADA SPEC & W(TACHOMETER)
main83220-04120i200009-200409
W(TACHOMETER)
main83220-04130i200009-200409
CANADA SPEC & W(TACHOMETER)
main83220-04140i200009-200409
83132CASE, COMBINATION METER
main83132-04030i199501-199706
main83132-04040i199501-199706
main83132-04050i199501-199706
W(TACHOMETER)
main83841-04050i199706-200009
main83841-04060i199706-200009
main83841-04100i199706-200009
W(TACHOMETER)
main83841-04450i200009-200409
W(TACHOMETER)
main83841-04850i200309-200409
83138GLASS, SPEEDOMETER
main83138-04040i199501-199609
CANADA SPEC & W(*66) OR CANADA SPEC & W(*CRC)
main83138-04050i199501-199706
W(TACHOMETER)
main83852-04050i200009-200409
main83852-04100i199706-200009
CANADA SPEC & W(TACHOMETER); W(TACHOMETER)
main83852-04110i199706-200009
W(TACHOMETER)
main83852-04140i199802-200009
W(TACHOMETER)
main83852-04850i200309-200409
W(TACHOMETER & VSC)
83145LENS, METER, NO.1
main83145-0W010×2i200009-200409
main83831-04100i200009-200409
W(TACHOMETER)
83145ALENS, METER, NO.2
main83145-04110i200009-200409
main83145-04130i199501-199509
W(TACHOMETER)
main83145-04131i199509-199706
W(TACHOMETER)
main83145-04140i199609-199706
CANADA SPEC & W(TACHOMETER)
main83831-04160i199706-199909
CANADA SPEC & W(TACHOMETER)
main83833-04100i200009-200409
W(TACHOMETER)
83145BLENS, METER, NO.3
main83145-04120i199501-200009
main83145-04150i199501-199706
W(TACHOMETER)
main83145-04180i199501-200009
BASE
main83145-04190i199501-200009
FORWARD
main83831-04450i200009-200409
W(TACHOMETER)
main83831-04530i200009-200409
main83834-04100i199706-200009
CANADA SPEC & W(TACHOMETER); W(TACHOMETER)
83159BRELAY ASSY, METER
main83159-22170i199501-200009
83243AGAUGE SUB-ASSY, FUEL RECEIVER
main83243-04030i199609-199706
CANADA SPEC & W(*66) OR CANADA SPEC & W(*CRC)
main83243-04040i199501-199706
main83243-04050i199501-199706
W(TACHOMETER)
main83243-04060i199501-199706
W(TACHOMETER)
main83243-04070i199501-199609
CANADA SPEC & W(TACHOMETER)
main83243-04080i199501-199609
CANADA SPEC & W(TACHOMETER)
main83882-04050i199706-200009
COLD SPEC OR W(CRUISE CONTROL) OR W(*66)
main83882-04060i199706-200009
main83882-04100i199706-200009
W(TACHOMETER)
main83882-04160i199706-199909
CANADA SPEC & W(TACHOMETER)
main83882-04450i200009-200409
W(TACHOMETER)
main83882-04530i200009-200409
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
main83244-04040i199501-199706
W(*66) OR W(*CRC)
main83244-04050i199501-199706
main83244-04060i199609-199706
CANADA SPEC; CANADA SPEC OR CANADA SPEC & W(*66) OR CANADA SPEC & W(*CRC)
main83244-04070i199501-199609
CANADA SPEC & W(TACHO METER) OR W(TACHO METER)
main83244-04080i199501-199706
W(TACHOMETER)
main83883-04050i199706-200009
COLD SPEC OR W(CRUISE CONTROL) OR W(*66)
main83883-04060i199706-200009
main83883-04100i199706-200009
CANADA SPEC & W(TACHOMETER); W(TACHOMETER)
main83883-04140i199802-200009
W(TACHOMETER)
main83883-04450i200009-200409
W(TACHOMETER)
main83883-04530i200009-200409
83247PLATE, METER CIRCUIT
main83247-04060i199609-199706
CANADA SPEC & W(*66) OR CANADA SPEC & W(*CRC)
main83247-04070i199501-199706
main83247-04080i199501-199706
W(TACHOMETER)
main83247-04090i199501-199509
W(TACHOMETER)
main83861-04010i199509-199706
W(TACHOMETER)
main83861-04050i199706-200009
main83861-04060i200009-200109
main83861-04100i199706-200009
CANADA SPEC & W(TACHOMETER); W(TACHOMETER)
main83861-04110i199706-200009
CANADA SPEC & W(TACHOMETER); W(TACHOMETER)
main83861-04450i200009-200305
W(TACHOMETER)
main83861-04620i200109-200409
W(TACHOMETER)
main83861-04740i200305-200409
main83861-04850i200309-200409
W(TACHOMETER)
9006902052
main90069-02052
9006902053
main90069-02053
9006902055
main90069-02055
9356855014
main93568-55014

16 parts on this diagram · 8 diagrams in section

METER for Toyota TACOMA

This section contains 41 genuine Toyota parts for the METER system of the Toyota TACOMA. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, CASE, COMBINATION METER, GLASS, SPEEDOMETER.
