Toyota TACOMA — FRONT SPRING & SHOCK ABSORBER

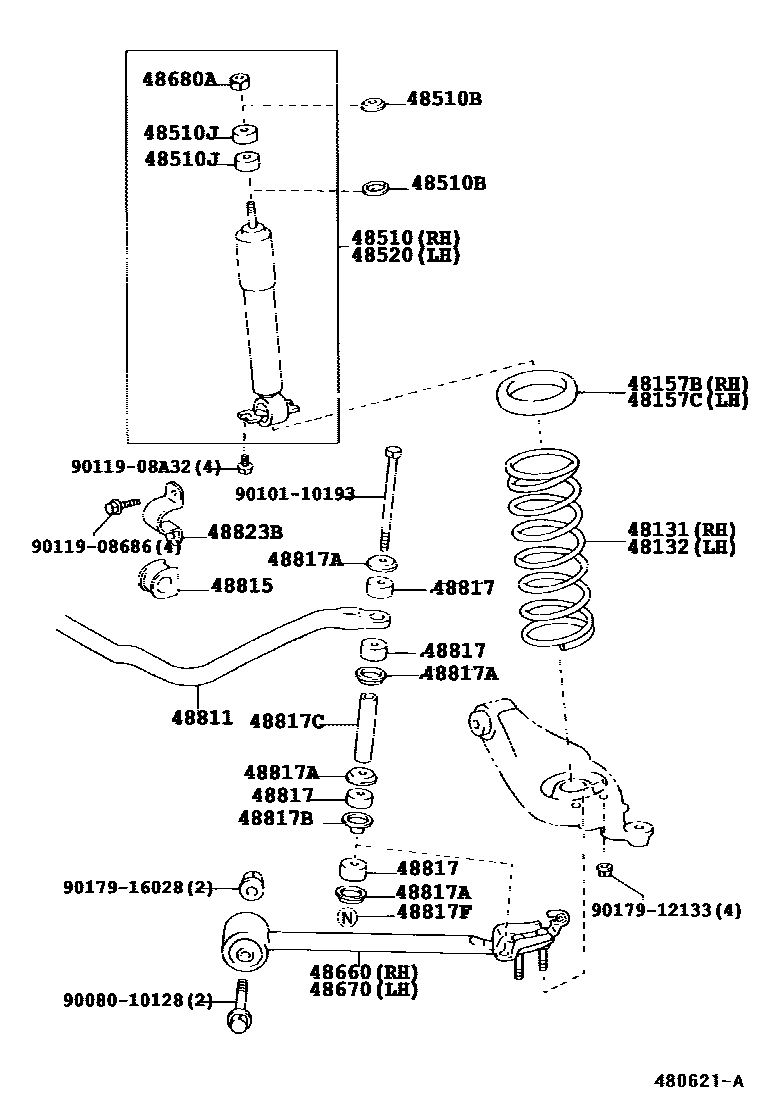

Parts diagram
48131SPRING, FRONT COIL, RH
main48131-04090i199501-200009
L=382.0
main48131-04110i199501-200009
L=379.5
main48131-04130i199501-200009
L=388.0
main48131-04150i199808-200009
L=368.5
main48131-04170i199802-200009
L=373.0
main48131-04190i200009
L=388.0
main48131-04210i200009
L=384.5
main48131-04350i200009
L=371.5
main48131-04360i200009
L=376.5
main48131-04390i200009
L=380.0
main48131-04430i200009-200212
main48131-04450i200009
L=345.5
main48131-AD060i200009
L=356.5
main48131-AD070i199802-200009
L=365.0,OFF ROAD PACKAGE
main48131-AD080i199802-200009
L=373.0
main48131-AD121i200009
L=338.5,OFF ROAD PACKAGE
main48131-AD160i200009
L=334.5,OFF ROAD PACKAGE
48132SPRING, FRONT COIL, LH
main48131-04100i199501-200009
L=386.0
main48131-04120i199501-200009
L=384.5
main48131-04140i199501-200009
L=393.5
main48131-04160i199808-200009
L=374.0
main48131-04180i199802-200009
L=381.5
main48131-04200i200009
L=392.5
main48131-04220i200009
L=390.5
main48131-04360i200009
L=376.5
main48131-04380i200009
L=384.5
main48131-04400i200009
L=388.5
main48131-04440i200009-200212
main48131-04460i200009
L=349.0
main48131-AD080i199802-200009
L=373.0,OFF ROAD PACKAGE
main48131-AD090i199802-200009
L=378.0
main48131-AD110i200009
L=360.0
main48131-AD131i200009
L=345.0,OFF ROAD PACKAGE
main48131-AD170i200009
L=338.0,OFF ROAD PACKAGE
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-35010i199501-200009
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-35010i199501-200009
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-09270i199802-199809
MARK 48510-04030
main48510-09280i199808-199809
MARK 48510-04040
main48510-39665i199812-200009
MARK 48510-35130
main48510-80012i200009-200409
MARK 48510-35170
main48510-80025i200009-200409
MARK 48510-35180; MARK 48510-35180,(J)
main48510-A9080i199802-200009
MARK 48510-AD020,OFF ROAD PACKAGE
main48510-A9140i200009-200409
MARK 48510-AD030
main48510-A9160i200009-200409
MARK 48510-AD050,OFF ROAD PACKAGE
main48511-39905i199501-199601
MARK 48511-3D010
main48511-39906i199601-199607
MARK 48511-3D011
main48511-80030i199607-199706
MARK 48511-3D011
main48511-80046i199706-200009
main48511-80083i200009-200409
MARK 48511-3D190
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
main90948-02069×4i199501-200009
main90948-02159×2i199802-200009
48510JCUSHION, FRONT SHOCK ABSORBER, NO.1
main90948-01002×4i199501-200009
main90948-01056×2i199802-200009
main90948-01080×4i200009
48520ABSORBER ASSY, SHOCK, FRONT LH
main48510-09270i199802-199809
MARK 48510-04030
main48510-09280i199812-200009
MARK 48510-04040
main48510-39665i199812-200009
MARK 48510-35130
main48510-80012i200009-200409
MARK 48510-35170
main48510-80025i200009-200409
MARK 48510-35180; MARK 48510-35180,(J)
main48510-A9080i199802-200009
MARK 48510-AD020,OFF ROAD PACKAGE
main48510-A9140i200009-200409
MARK 48510-AD030
main48510-A9160i200009-200409
MARK 48510-AD050,OFF ROAD PACKAGE
main48511-39905i199501-199601
MARK 48511-3D010
main48511-39906i199601-199607
MARK 48511-3D011
main48511-80030i199607-199706
MARK 48511-3D011
main48511-80046i199706-200009
main48511-80083i200009-200409
MARK 48511-3D190
48660BAR ASSY, STRUT, RH
main48660-35011i199501-200009
main48660-35020i200009
48670BAR ASSY, STRUT, LH
main48670-35011i199501-200009
main48670-35020i200009
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
main90179-12140×2i200009
main94184-61000×2i199501-200009
main94184-61001×2i200009
48811BAR, STABILIZER, FRONT
main48811-04030i199501-200009
main48811-04040i199802-200009
main48811-04090i200009
main48811-04110i200009
main48811-AD010i199802-200009
OFF ROAD PACKAGE
main48811-AD040i200009
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-04030×2i199501-200009
main48815-04040×2i199802-200009
main48815-04050×2i200009
main48815-35090×2i200009
main48815-AD010×2i199802-200009
OFF ROAD PACKAGE
main48815-AD020×2i200009
48817CUSHION, FRONT STABILIZER
main90948-01002×8i199501-200009
main90948-01061×4i200009
main90948-01080×4i200009
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
main90948-02004×8i199501-200009
main90948-02069×4i199802-200009
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
main90948-02034×2i199501-200009
main90948-02069×4i200009
48817CCOLLAR(FOR STABILIZER BAR)
main90440-14006×2i199501-200009
48817FNUT(FOR FRONT STABILIZER BAR)
main94184-61000×2i199501-200009
48823BCOVER, FRONT STABILIZER BRACKET
main48823-35050×2i199501-200009
main48823-35080×2i200009
9008010128
main90080-10128
9010110193
main90101-10193
9011908686
main90119-08686
9011908A32
main90119-08A32
9017912133
main90179-12133
9017916028
main90179-16028

25 parts on this diagram · 4 diagrams in section

FRONT SPRING & SHOCK ABSORBER for Toyota TACOMA

This section contains 52 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota TACOMA. Key components include: SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, INSULATOR, FRONT COIL SPRING, UPPER RH, INSULATOR, FRONT COIL SPRING, UPPER LH, CAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST.
