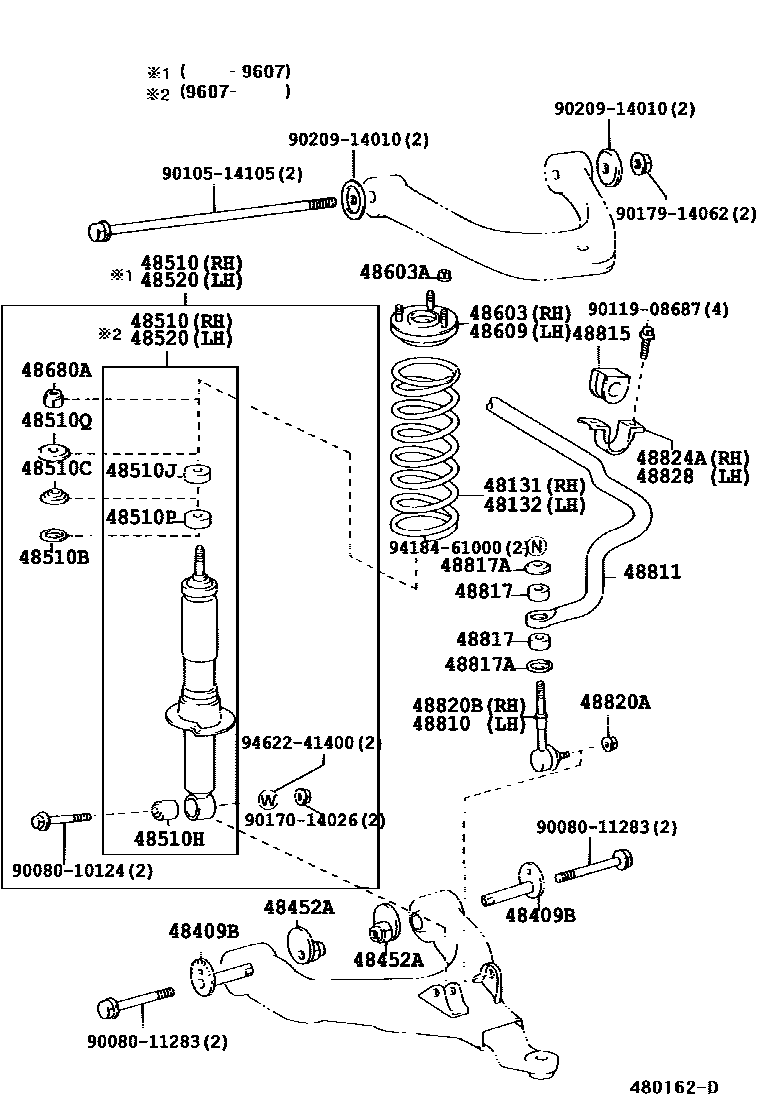

Toyota TACOMA — FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-04010i199501-200009

L=365.5

main48131-04020i200009

main48131-04030i199501-200009

L=370.5

main48131-04040i199501-200009

L=373.0

main48131-04050i200009

main48131-04060i199501-200009

L=378.0

main48131-04070i200009

main48131-04410i200009

main48131-AD010i200212

CANADA SPEC

main48131-AD030i199706-200009

OFF ROAD PACKAGE

main48131-AD140i200009

OFF ROAD PACKAGE

48132SPRING, FRONT COIL, LH

main48131-04030i199501-200009

L=370.5

main48131-04040i200009

main48131-04050i199501-200009

L=375.5

main48131-04070i199501-200009

L=380.5

main48131-04080i199501-200009

L=382.5

main48131-04320i200009

main48131-04420i200009

main48131-AD020i199706-200009

OFF ROAD PACKAGE

main48131-AD040i200009

OFF ROAD PACKAGE

main48131-AD050i199706-200009

OFF ROAD PACKAGE

main48131-AD150i200009

OFF ROAD PACKAGE

48409BCAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST

main48409-35040×4i199501-199509

main48409-35050×4i199509-200009

48452APLATE, FRONT SUSPENSION TOE ADJUST, NO.2

main48452-35010×4i199501-199509

main48452-35020×4i199509-200009

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09100i199501-199509

MARK 48510-04010

main48510-09101i199509-199607

MARK 48510-04011,(L)

main48510-09103i199607-199706

MARK 48510-04011,(L)

main48510-09110i199501-199509

MARK 48510-04020; MARK 48510-04020,W(GAS SHOCK)

main48510-09111i199601-199604

MARK 48510-04021; MARK 48510-04021,W(GAS SHOCK)

main48510-09113i199607-199706

MARK 48510-04021,(L); MARK 48510-04021,W(GAS SHOCK),(L)

main48510-09270i200009-200409

MARK 48510-04030,(L)

main48510-39565i199604-199607

MARK 48510-35110,(J)

main48510-39566i199607-199706

MARK 48510-35110,(J)

main48510-39575i199604-199607

MARK 48510-35120,(J); MARK 48510-35120,W(GAS SHOCK),(J)

main48510-39576i199607-199706

MARK 48510-35120,(J); MARK 48510-35120,W(GAS SHOCK),(J)

main48510-39665i199706-199708

MARK 48510-35130,(J)

main48510-80012i200009-200409

MARK 48510-35170

main48510-80025i200009-200409

MARK 48510-35180,(J)

main48510-A9050i199706-200009

MARK 48510-AD010,OFF ROAD PACKAGE

main48510-A9160i200009-200409

MARK 48510-AD050,OFF ROAD PACKAGE

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02159×2i199501-200009

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02160×2i200009

48510HBUSH(FOR FRONT SHOCK ABSORBER)

main90389-14048×2i199501-200009

main90903-89012×2i199706-200009

OFF ROAD PACKAGE

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-01056×2i199501-200009

48510PCUSHION, FRONT SHOCK ABSORBER, NO.2

main90948-01057×2i199501-200009

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-02161×2i200009

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-09100i199501-199509

MARK 48510-04010

main48510-09101i199509-199607

MARK 48510-04011,(L)

main48510-09103i199607-199706

MARK 48510-04011,(L)

main48510-09110i199501-199509

MARK 48510-04020; MARK 48510-04020,W(GAS SHOCK)

main48510-09111i199601-199604

MARK 48510-04021; MARK 48510-04021,W(GAS SHOCK)

main48510-09113i199607-199706

MARK 48510-04021,(L); MARK 48510-04021,W(GAS SHOCK),(L)

main48510-09270i199706-199708

MARK 48510-04030,(L)

main48510-39565i199604-199607

MARK 48510-35110,(J)

main48510-39566i199607-199706

MARK 48510-35110,(J)

main48510-39575i199604-199607

MARK 48510-35120,(J); MARK 48510-35120,W(GAS SHOCK),(J)

main48510-39576i199607-199706

MARK 48510-35120,(J); MARK 48510-35120,W(GAS SHOCK),(J)

main48510-39665i199706-199708

MARK 48510-35130,(J)

main48510-80012i200009-200409

MARK 48510-35170

main48510-80025i200009-200409

MARK 48510-35180,(J)

main48510-A9050i199706-200009

MARK 48510-AD010,OFF ROAD PACKAGE

main48510-A9160i200009-200409

MARK 48510-AD050,OFF ROAD PACKAGE

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-35010i200009

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10212×6i199501-200009

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-35010i199501-200009

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90179-12140×2i200009

48810LINK ASSY, FRONT STABILIZER, LH

main48810-35020i200009

main48820-35020i199501-200005

main48820-35021i200005-200009

48811BAR, STABILIZER, FRONT

main48811-04040i199501-200009

main48811-04110i200009

main48811-AD010i199706-200009

OFF ROAD PACKAGE

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-04040×2i199501-200009

main48815-35090×2i200009

main48815-AD010×2i199706-200009

OFF ROAD PACKAGE

48817CUSHION, FRONT STABILIZER

main90948-01002×4i199501-200009

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02069×4i199501-200009

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12141×2i199501-200009

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-35020i199501-200005

main48820-35021i200005-200009

main48820-35040i200009

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-35100i199501-200009

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48829-35070i199501-200009

9008010124

main90080-10124

9008011283

main90080-11283

9010514105

main90105-14105

9011908687

main90119-08687

9017014026

main90170-14026

9017914062

main90179-14062

9020914010

main90209-14010

9418461000

main94184-61000

9462241400

main94622-41400

34 parts on this diagram · 2 diagrams in section

FRONT SPRING & SHOCK ABSORBER for Toyota TACOMA

This section contains 35 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota TACOMA. Key components include: SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, CAM SUB-ASSY, FRONT SUSPENSION TOE ADJUST, PLATE, FRONT SUSPENSION TOE ADJUST, NO.2, ABSORBER ASSY, SHOCK, FRONT RH.
