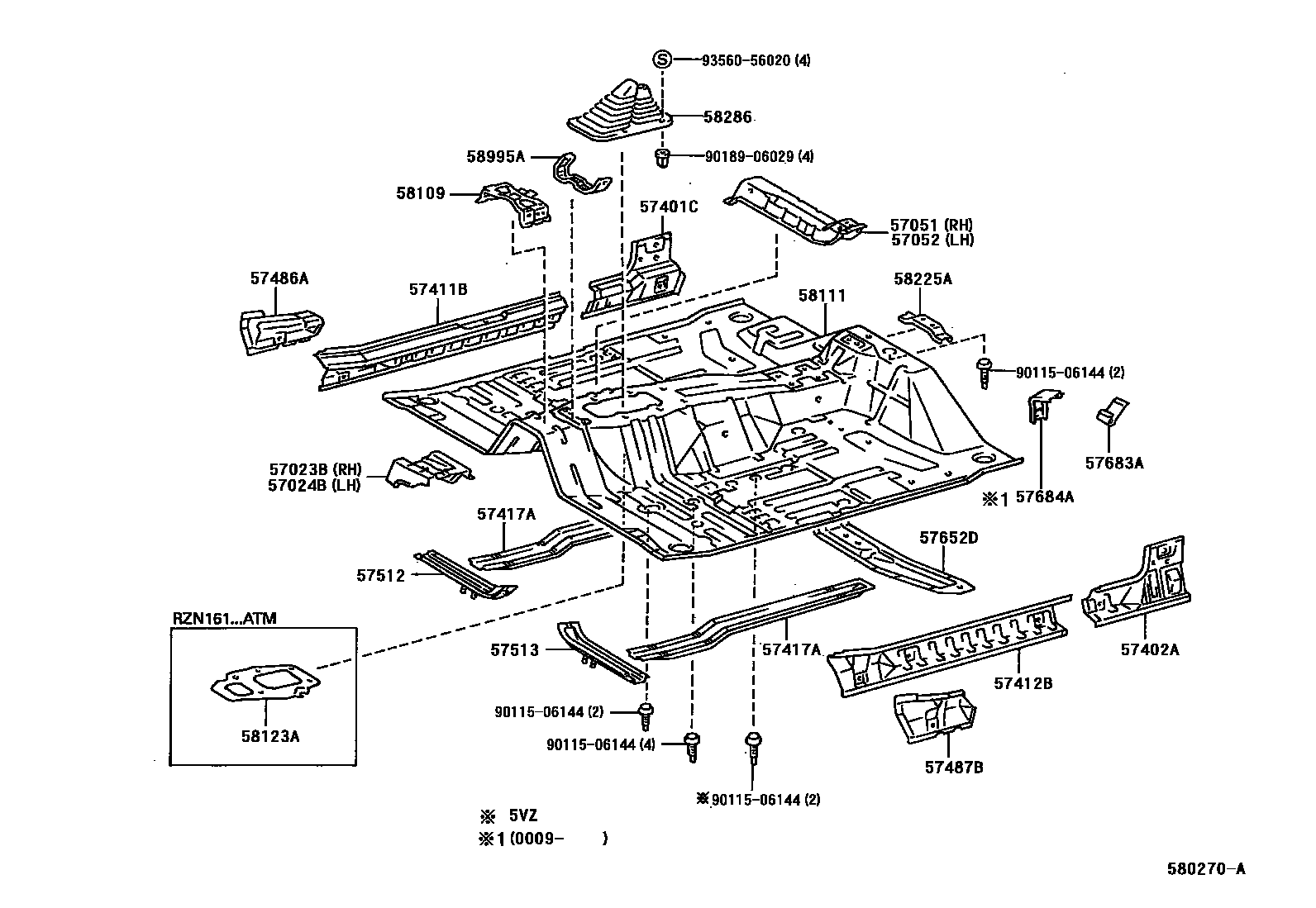

Toyota TACOMA — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
57023BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH
57024BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH
57051MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
W(SEPARATE SEAT)
57052MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57411BMEMBER, FLOOR SIDE, INNER RH
57412BMEMBER, FLOOR SIDE, INNER LH
57417AREINFORCEMENT, FRONT FLOOR UNDER
57486AREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57487BREINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57512REINFORCEMENT, FRONT FLOOR, RH
57513REINFORCEMENT, FRONT FLOOR, LH
57652DMEMBER, REAR FLOOR CROSS, NO.1
W(SEPARATE SEAT)
W(SEPARATE SEAT)
57683ABRACKET, FUEL TANK MOUNTING, NO.1
57684ABRACKET, FUEL TANK MOUNTING, NO.2
58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING
(L)
(J)
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
58225ABRACKET, CENTER MOUNTING
58286BOOT, SHIFT & SELECT LEVER, NO.1
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
9011506144
main90115-06144
9018906029
main90189-06029
9356056020
main93560-56020
25 parts on this diagram · 6 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota TACOMA
This section contains 62 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota TACOMA. Key components include: COVER, SIDE DOOR STEP PLATE, REAR LH, PLATE, STEP, RH, PLATE, STEP, LH, COVER, SIDE DOOR STEP PLATE, FRONT RH, COVER, SIDE DOOR STEP PLATE, FRONT LH.
