Toyota TACOMA — FRONT DOOR PANEL & GLASS

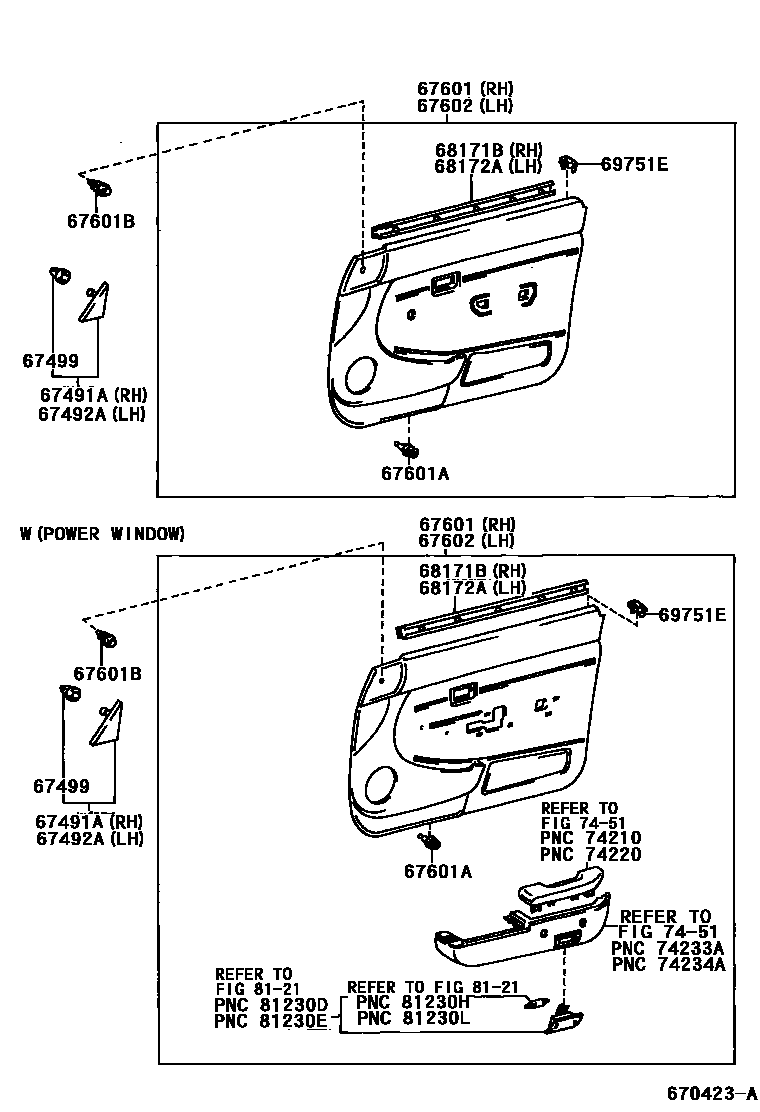

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-04040i200009
main67491-AD010i199501-199908
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-04040i200009
main67492-AD010i199908-200009
W(ELECTRIC REMOTE CONTROL DOOR MIRROR)
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67499-AD010×2i199501-200009
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-04040-B0i199501-199706
BLUISH GRAY,TRIM1#
main67610-04040-E0i199501-199706
OAK,TRIM4#
main67610-04050-B0i199501-199706
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main67610-04050-E0i199501-199706
W(POWER WINDOW),OAK,TRIM4#
main67610-04080-B0i199706-199908
MD.MOON MIST,TRIM1#
main67610-04080-E0i199706-199908
MD.OAK,TRIM4#
main67610-04090-B0i199706-199908
W(POWER WINDOW),MD.MOON MIST,TRIM1#
main67610-04090-E0i199706-199908
W(POWER WINDOW),MD.OAK,TRIM4#
main67610-04160-B1i199908-200009
MD.MOON MIST,TRIM1#
main67610-04160-E1i199908-200009
OAK,TRIM4#
main67610-04170-B1i199908-200009
W(POWER WINDOW),MD.MOON MIST,TRIM1#
main67610-04170-E1i199908-200009
W(POWER WINDOW),OAK,TRIM4#
main67610-04220-B0i200009-200209
W(FABRIC TRIM),DK. CHARCOAL,TRIM1#
main67610-04220-E0i200009-200409
W(FABRIC TRIM),OAK,TRIM4#
main67610-04230-B0i200009-200409
W(FABRIC TRIM & POWER WINDOW),DK. CHARCOAL,TRIM1#
main67610-04230-E0i200009-200409
W(FABRIC TRIM & POWER WINDOW),OAK,TRIM4#
main67610-04240-B0i200009-200409
DK. CHARCOAL,TRIM1#
main67610-04240-E0i200009-200409
OAK,TRIM4#
67601ARETAINER(FOR FRONT DOOR TRIM BOARD)
main67771-04040×24i199501-200009
main90080-46312×4i200009
NO.1
main90080-46313×14i200009
NO.2
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-07085-B1×2i199501-199706
BLUISH GRAY,TRIM1#
main90467-07085-B2×2i199706-200009
MD.MOON MIST,TRIM1#
main90467-07085-E4×2i199501-200009
OAK,TRIM4#
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-04040-B0i199501-199706
BLUISH GRAY,TRIM1#
main67620-04040-E0i199501-199706
OAK,TRIM4#
main67620-04050-B0i199501-199706
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main67620-04050-E0i199501-199706
W(POWER WINDOW),OAK,TRIM4#
main67620-04080-B0i199706-199908
MD.MOON MIST,TRIM1#
main67620-04080-E0i199706-199908
MD.OAK,TRIM4#
main67620-04090-B0i199706-199908
W(POWER WINDOW),MD.MOON MIST,TRIM1#
main67620-04090-E0i199706-199908
W(POWER WINDOW),MD.OAK,TRIM4#
main67620-04180-B1i199908-200009
MD.MOON MIST,TRIM1#
main67620-04180-E1i199908-200009
OAK,TRIM4#
main67620-04190-B1i199908-200009
W(POWER WINDOW),MD.MOON MIST,TRIM1#
main67620-04190-E1i199908-200009
W(POWER WINDOW),OAK,TRIM4#
main67620-04240-B0i200009-200409
W(FABRIC TRIM),DK. CHARCOAL,TRIM1#
main67620-04240-E0i200009-200209
W(FABRIC TRIM),OAK,TRIM4#
main67620-04250-B0i200009-200409
W(FABRIC TRIM & POWER WINDOW),DK. CHARCOAL,TRIM1#
main67620-04250-E0i200009-200409
W(FABRIC TRIM & POWER WINDOW),OAK,TRIM4#
main67620-04260-B0i200009-200409
DK. CHARCOAL,TRIM1#
main67620-04260-E0i200009-200409
OAK,TRIM4#
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
main68171-35010i199501-200009
main68171-35120i200009-200409
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
main68171-35120i200009-200409
main68172-35010i199501-200009
69751EHOLDER, FRONT DOOR LOCK CONTROL KNOB
main69751-04010-B1×2i199501-199706
BLUISH GRAY,TRIM1#
main69751-04010-B2×2i199706-200009
MD.MOON MIST,TRIM1#
main69751-04010-E0×2i199501-200009
OAK,TRIM4#
7451ARMREST & VISOR
→ Go to FIG 74-51
8121INTERIOR LAMP
→ Go to FIG 81-21

12 parts on this diagram · 3 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota TACOMA

This section contains 47 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota TACOMA. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH, PANEL, FRONT DOOR, OUTER LH, FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH.
