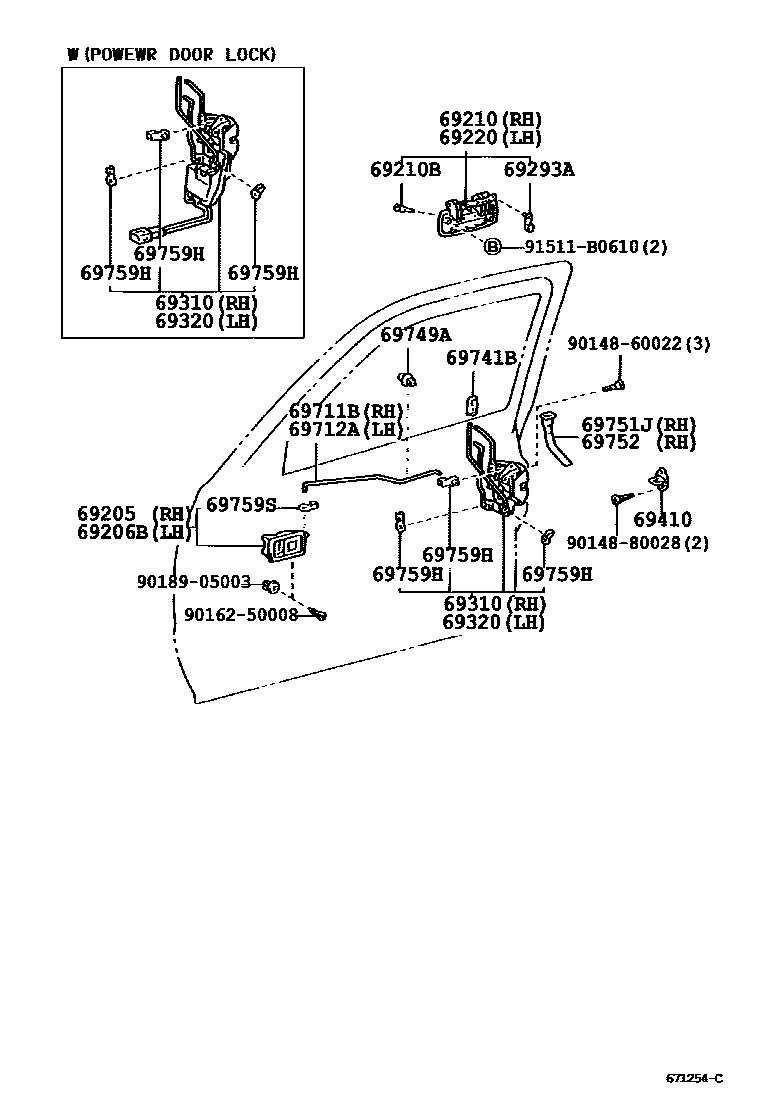

Toyota TACOMA — FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLUISH GRAY,TRIM1#
MD.MOON MIST,TRIM1#
OAK,TRIM4#
MD.CHARCOAL,TRIM1#
MD.OAK,TRIM4#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLUISH GRAY,TRIM1#
MD.MOON MIST,TRIM1#
OAK,TRIM4#
MD.CHARCOAL,TRIM1#
MD.OAK,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED,W(CHROME PLATING)
SILVER ME.,1C8
BLACK MC.,209
RED MM.,3K4
RED,3L5
RED M.M.,3P1
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
W(CHROME PLATING)
SILVER ME.,1C8
BLACK MC.,209
RED MM.,3K4
RED,3L5
RED M.M.,3P1
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
LH
RH
69310LOCK ASSY, FRONT DOOR, RH
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
69320LOCK ASSY, FRONT DOOR, LH
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69741BKNOB, FRONT DOOR LOCK CONTROL
BLUISH GRAY,TRIM1#
MD.MOON MIST,TRIM1#
MD.CHARCOAL,TRIM1#
OAK,TRIM4#
MD.OAK,TRIM4#
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69751JHOLDER, FRONT DOOR LOCK CONTROL KNOB, RH
69752HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
YELLOW
BROWN
ORANGE
PINK
RED
BLACK
NATURAL
BLUE
69759SSNAP, FRONT DOOR INSIDE HANDLE
RH
LH
LH
RH
9014860022
main90148-60022
9014880028
main90148-80028
9016250008
main90162-50008
9018905003
main90189-05003
91511B0610
main91511-B0610
22 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota TACOMA
This section contains 22 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota TACOMA. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, CUSHION(FOR FRONT DOOR OUTSIDE HANDLE), HANDLE ASSY, FRONT DOOR OUTSIDE, LH.
