Toyota TACOMA — FRONT AXLE HUB

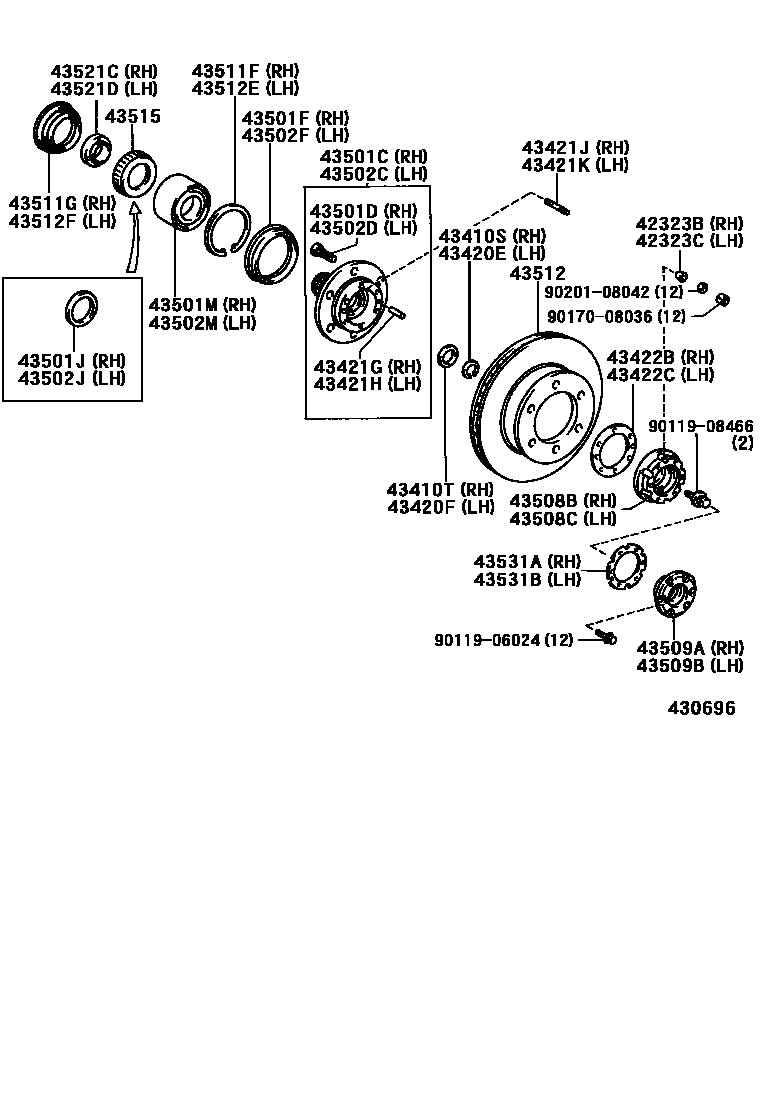

Parts diagram
42323BWASHER, CONE (FOR FRONT AXLE SHAFT RH)
main42323-60010×6i199501-200009
42323CWASHER, CONE (FOR FRONT AXLE SHAFT LH)
main42323-60010×6i199501-200009
43410SRING, SNAP (FOR FRONT DRIVE SHAFT RH)
main90520-27023i199501-200009
43410TSPACER (FOR FRONT DRIVE SHAFT RH)
main90560-27005i199501-200009
43420ERING, SNAP (FOR FRONT DRIVE SHAFT LH)
main90520-27023i199501-200009
43420FSPACER (FOR FRONT DRIVE SHAFT LH)
main90560-27005i199501-200009
43421GPIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE RH)
main90250-07057×2i199501-200009
43421HPIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE LH)
main90250-07057×2i199501-200009
43421JBOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE RH)
main90080-11282×6i199810-200009
main90116-08383×6i199501-199810
43421KBOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE LH)
main90080-11282×6i199810-200009
main90116-08383×6i199501-199810
43422BGASKET, FRONT AXLE OUTER SHAFT FLANGE, RH
main43422-60060i199501-200009
43422CGASKET, FRONT AXLE OUTER SHAFT FLANGE, LH
main43422-60060i199501-200009
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43502-04030i199501-199706
(L)
main43502-04040i200009-200409
W(A.D.D)
main43502-35160i199512-199706
(J)
main43502-35170i199512-199706
(J); W(A.D.D),(J)
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02049×6i199501-200009
43501FSEAL, OIL (FOR FRONT AXLE HUB RH)
main90312-95001i199501-200009
43501JSPACER (FOR FRONT AXLE HUB RH)
main90560-52001i199501-200009
43501MBEARING (FOR FRONT AXLE HUB INNER RH)
main90080-36071i199501-200009
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43502-04030i199501-199706
(L)
main43502-04040i199501-200009
W(A.D.D)
main43502-35160i199512-199706
(J)
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02049×6i199501-200009
43502FSEAL, OIL (FOR FRONT AXLE HUB LH)
main90312-95001i199501-200009
43502JSPACER (FOR FRONT AXLE HUB LH)
main90560-52001i199501-200009
43502MBEARING (FOR FRONT AXLE HUB INNER LH)
main90080-36071i199501-200009
43508BBODY SUB-ASSY, FREE WHEEL HUB, RH
main43508-35040i199501-200009
43508CBODY SUB-ASSY, FREE WHEEL HUB, LH
main43508-35040i199501-200009
43509ACOVER SUB-ASSY, FREE WHEEL HUB, RH
main43509-35040i199501-200009
43509BCOVER SUB-ASSY, FREE WHEEL HUB, LH
main43509-35040i199501-200009
43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)
main90521-99114i199501-200009
43511GSEAL, OIL (FOR FRONT AXLE HUB OUTER RH)
main90316-69001i199501-200009
43512DISC, FRONT
main43512-04020×2i200009-200409
(L)
main43512-35210×2i200309-200409
W(VSC)
main43512-35280×2i200009-200409
(J)
main43512-35310×2i199501-199706
43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)
main90521-99114i199501-200009
43512FSEAL, OIL (FOR FRONT AXLE HUB OUTER LH)
main90316-69001i199501-200009
43515ROTOR, SKID CONTROL, FRONT
main43515-35010×2i199501-200009
43521CNUT, FRONT WHEEL ADJUSTING, RH
main43521-35010i199501-200009
43521DNUT, FRONT WHEEL ADJUSTING, LH
main43521-35010i199501-200009
43531AGASKET, FREE WHEEL HUB, RH
main43531-60010i199501-200009
43531BGASKET, FREE WHEEL HUB, LH
main43531-60010i199501-200009
9011906024
main90119-06024
9011908466
main90119-08466
9017008036
main90170-08036
9020108042
main90201-08042

40 parts on this diagram · 2 diagrams in section

FRONT AXLE HUB for Toyota TACOMA

This section contains 49 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota TACOMA. Key components include: WASHER, CONE (FOR FRONT AXLE SHAFT RH), WASHER, CONE (FOR FRONT AXLE SHAFT LH), RING, SNAP (FOR FRONT DRIVE SHAFT RH), SPACER (FOR FRONT DRIVE SHAFT RH), RING, SNAP (FOR FRONT DRIVE SHAFT LH).
