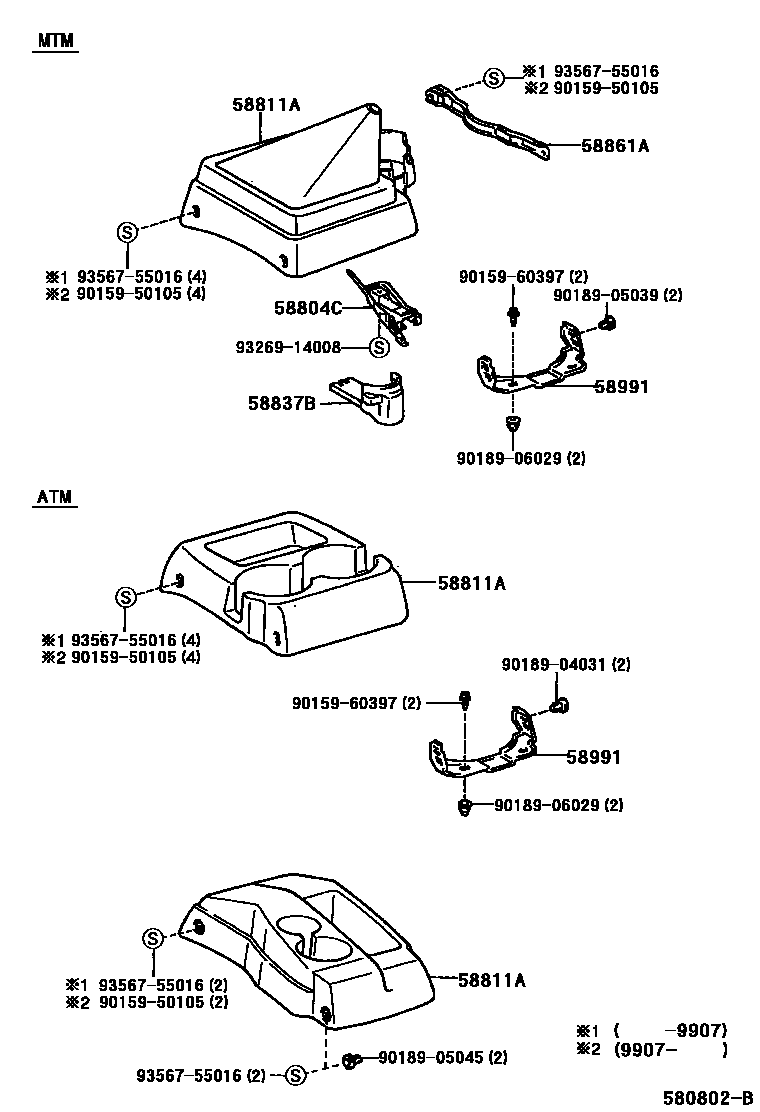

Toyota TACOMA — CONSOLE BOX & BRACKET

58804CINSERT SUB-ASSY, CONSOLE BOX, FRONT

main58804-04010i199706-200009

58811ABOX, CONSOLE, FRONT

main58802-04030-B0i199706-200009

MD.MOON MIST,TRIM1#

main58802-04030-E0i199706-200009

OAK,TRIM4#

main58802-04140-B0i200009-200409

DK.CHARCOAL,TRIM1#

main58802-04140-E0i200009-200409

OAK,TRIM4#

main58802-35170-B0i199802-200009

MD.MOONMIST,TRIM1#

main58802-35170-B1i200009-200409

DK.CHARCOAL,TRIM1#

main58802-35170-E0i199802-200009

OAK,TRIM4#

main58802-35210-B0i200009-200409

W(REAR CONSOLE BOX & SEPARATE SEAT),DK.CHARCOAL,TRIM1#

main58802-35210-E0i200009-200409

W(REAR CONSOLE BOX & SEPARATE SEAT),OAK,TRIM4#

main58811-04020-B0i199706-200009

MD.MOON MIST,TRIM1#

main58811-04020-E0i199706-200009

OAK,TRIM4#

58837BBOX, CONSOLE CUP HOLDER

main58837-04010-B0i199706-200009

MD.MOON MIST,TRIM1#

main58837-04010-B1i200009-200409

DK.CHARCOAL,TRIM1#

main58837-04010-E0i199706-200009

OAK,TRIM4#

58861ASUPPORT, CONSOLE BOX, NO.1

main58861-04010i199706-200009

main58861-04020i200009

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-04020i199802-200009

main58991-04030i200009

9015950105

main90159-50105

9015960397

main90159-60397

9018904031

main90189-04031

9018905039

main90189-05039

9018905045

main90189-05045

9018906029

main90189-06029

9326914008

main93269-14008

9356755016

main93567-55016

13 parts on this diagram · 5 diagrams in section

CONSOLE BOX & BRACKET for Toyota TACOMA

This section contains 36 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota TACOMA. Key components include: BOX ASSY, COIN, HOLDER ASSY, INSTRUMENT PANEL CUP, INSERT SUB-ASSY, CONSOLE BOX, FRONT, BOX, CONSOLE, FRONT, BOX, CONSOLE CUP HOLDER.
