Toyota TACOMA — CONSOLE BOX & BRACKET

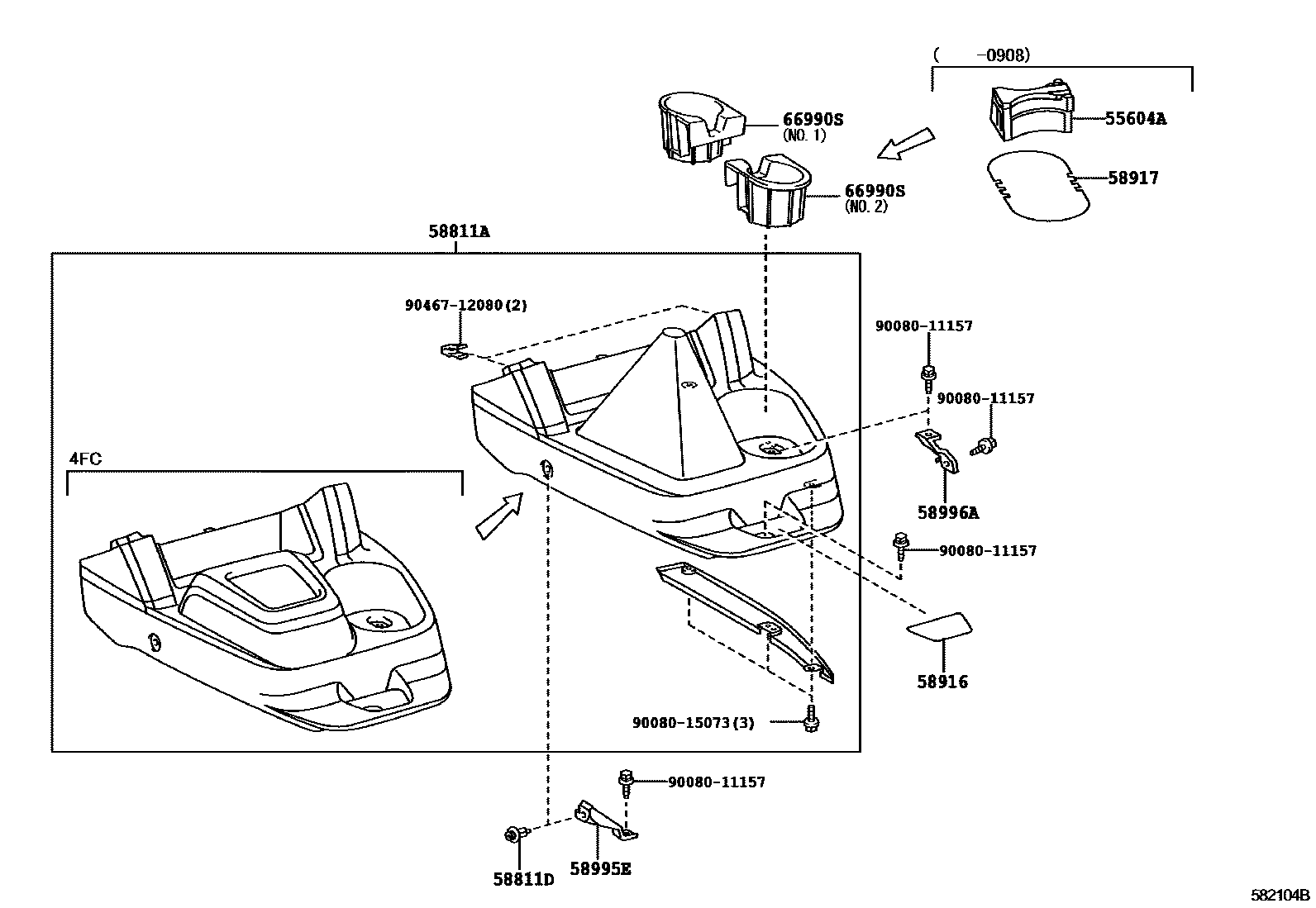

Parts diagram
55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
main55604-04010i200805-200908
main55604-04010i200409-200805
FRONT SEAT-BASE FABRIC,SEPA.TYPE,4WAY,W/O(LUMBAR.)
main55604-04010i200409-200805
SR5 PACKAGE
main66991-04010i200908-201011
LH
main66991-04012i201012-201508
LH
main66992-04010i200908-201011
RH
main66992-04012i201012-201508
RH
58811ABOX, CONSOLE, FRONT
main58802-04150-B0i200409-201109
GRAY,TRIM1#
main58802-04150-B0i200409-200805
FRONT SEAT-BASE FABRIC,SEPA.TYPE,4WAY,W/O(LUMBAR.),GRAY,TRIM1#
main58802-04151-B1i201109-201208
DK.GRAY,TRIM1#
main58802-04152-B1i201209-201408
DK.GRAY,TRIM1#
main58802-04160-B0i200409-201109
GRAY,TRIM1#
main58802-04160-B0i200409-200805
SR5 PACKAGE,GRAY,TRIM1#
main58802-04160-B0i200409-200805
FRONT SEAT-BASE FABRIC,SEPA.TYPE,4WAY,W/O(LUMBAR.),GRAY,TRIM1#
main58802-04160-B1i201109-201208
DK.GRAY,TRIM1#
main58802-04161-B1i201209-201408
DK.GRAY,TRIM1#
main58810-04010-C0i201508-201711
BLACK,TRIM1#,2#,4#
main58810-04010-C0i201508-201711
BLACK,TRIM4#
main58810-04010-C0i201508-201909
BLACK,TRIM1#,2#
main58810-04010-C0i201711-201909
BLACK,TRIM2#,4#
main58810-04020-C0i201508-201909
BLACK,TRIM1#,2#
main58810-04020-C0i201508-201711
BLACK,TRIM1#,2#,4#
main58810-AD010-B1i200409-201109
DK.GRAY,TRIM1#
main58810-AD010-B1i200409-200805
FRONT SEAT-BASE FABRIC,SEPA.TYPE,4WAY,W/O(LUMBAR.),DK.GRAY,TRIM1#
main58810-AD010-B2i200409-200805
DK.GRAY,TRIM4#
main58810-AD010-B3i200805-201109
SAND BEIGE,TRIM4#
main58810-AD011-B4i201109-201508
DK.GRAY,TRIM1#
main58810-AD011-B4i201109-201508
DK.GRAY,TRIM1#,4#
main58810-AD020-B0i200409-201109
DK.GRAY,TRIM1#
main58810-AD020-B1i200409-200805
DK.GRAY,TRIM4#
main58810-AD020-B2i200805-201109
SAND BEIGE,TRIM4#
main58811-AD010-B0i200409-201109
GRAY,TRIM1#
main58811-AD010-B0i200409-200805
FRONT SEAT-BASE FABRIC,SEPA.TYPE,4WAY,W/O(LUMBAR.),GRAY,TRIM1#
main58811-AD010-B1i201109-201408
DK.GRAY,TRIM1#
main58811-AD010-B1i201109-201508
DK.GRAY,TRIM1#,4#
main58811-AD010-E0i200409-200805
FAWN,TRIM4#
main58811-AD010-E1i200805-201109
SAND BEIGE,TRIM4#
58811DCLIP(FOR CONSOLE BOX)
main55346-04020-B1i201109-201408
DK.GRAY,TRIM1#
main55346-04020-B2i200409-201109
GRAY,TRIM1#
main55346-04020-B2i200409-200805
SR5 PACKAGE,GRAY,TRIM1#
main55346-04020-B2i200409-200805
FRONT SEAT-BASE FABRIC,SEPA.TYPE,4WAY,W/O(LUMBAR.),GRAY,TRIM1#
58916MAT, BOX BOTTOM
main58916-04020i200409-201408
main58916-AD020i200805-201508
main58916-AD020i200409-200805
FRONT SEAT-BASE FABRIC,SEPA.TYPE,4WAY,W/O(LUMBAR.)
58917MAT, BOX BOTTOM, NO.2
main58917-04010i200409-200908
58995EBRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-04010i200409-201408
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
main58996-04010i200409-201408
66990SCONSOLE BOX CUP HOLDER
main66991-04020i200908-201408
NO.1
main66992-04020i200908-201408
NO.2
9008011157
main90080-11157
9008015073
main90080-15073
9046712080
main90467-12080

11 parts on this diagram · 6 diagrams in section

CONSOLE BOX & BRACKET for Toyota TACOMA

This section contains 54 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota TACOMA. Key components include: SHIFT LEVER & RETAINER, HOLDER SUB-ASSY, INSTRUMENT PANEL CUP, HOLDER, CONSOLE BOX CUP, TRAY, INSTRUMENT PANEL CUP HOLDER, NET, BAGGAGE HOLDER, NO.1.
