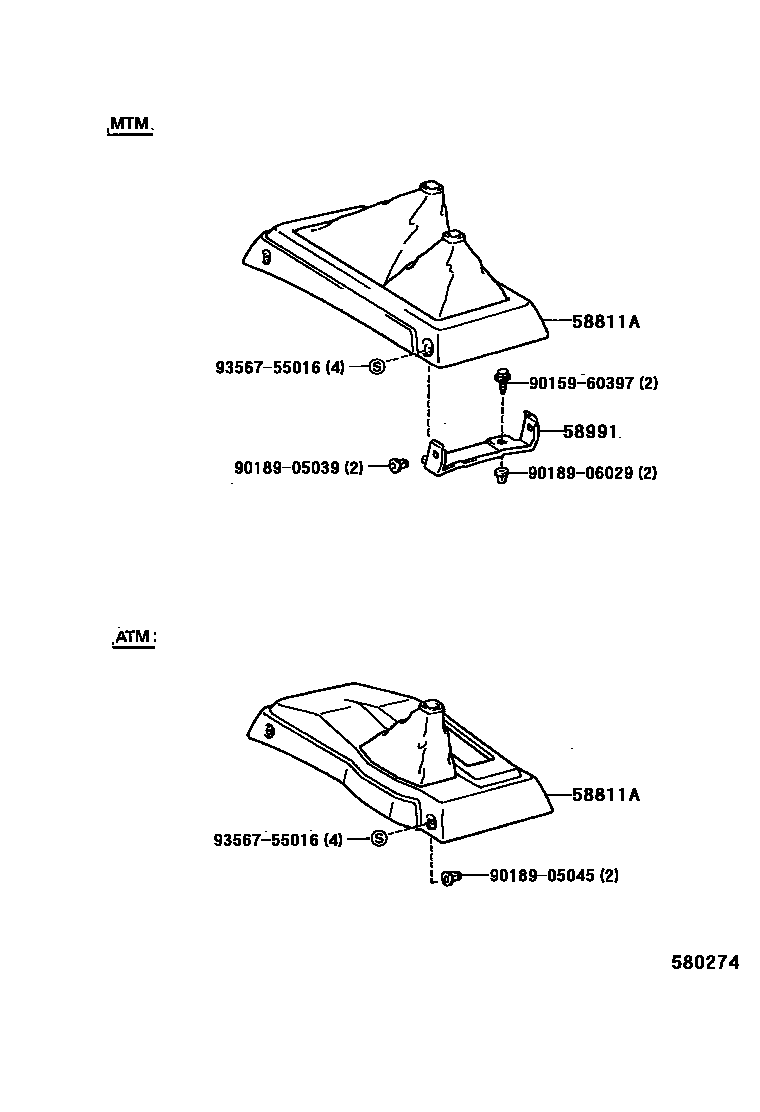

Toyota TACOMA — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1W/O(CUP HOLDER) 0004 1 0005 1 0006 1

58811ABOX, CONSOLE, FRONT

main58802-04010-B0iRZN161,171,VZN170..4FC199501-199706

BLUISH GRAY,TRIM1#

main58802-04010-B1iRZN161,171,VZN170..4FC199706-200009

W(REAR CONSOLE BOX & SEPARATE SEAT),MD.MOON MIST,TRIM1#

main58802-04010-E0iRZN161,171,VZN170..4FC199501-200009

W(REAR CONSOLE BOX & SEPARATE SEAT),OAK,TRIM4#

main58802-04020-B0iVZN170..4FC..SR5199501-199706

W(2-4 SELECTOR),BLUISH GRAY,TRIM1#

main58802-04020-B1iVZN170..4FC..DLX199706-200009

W(2-4 SELECTOR),MD.MOON MIST,TRIM1#

main58802-04020-E0iVZN170..4FC..DLX199706-200009

W(2-4 SELECTOR & REAR CONSOLE BOX & SEPARATE SEAT),OAK,TRIM4#

main58802-04040-B0iRZN161,171,VZN170..5F..DLX199706-200009

MD.MOON MIST,TRIM1#

main58802-04040-E0iRZN161,171,VZN170..5F..DLX199706-200009

OAK,TRIM4#

main58802-04050-B0iVZN170..R..DLX199706-200009

W(2-4 SELECTOR),MD.MOON MIST,TRIM1#

main58802-04050-E0iVZN170..R..DLX199706-200009

W(2-4 SELECTOR),OAK,TRIM4#

main58802-04060-B0iRZN161,171,VZN170..4FC..DLX199706-200009

MD.MOON MIST,TRIM1#

main58802-04060-E0iRZN161,171,VZN170..4FC..DLX199706-200009

OAK,TRIM4#

main58802-04070-B0iVZN170..4FC..DLX199706-200009

W(2-4 SELECTOR),MD.MOON MIST,TRIM1#

main58802-04070-E0iVZN170..4FC..DLX199706-200009

W(2-4 SELECTOR),OAK,TRIM4#

main58802-04080-B0iRZN161,171,VZN170..4FC200009-200409

W(REAR CONSOLE BOX & SEPARATE SEAT),DK.CHARCOAL,TRIM1#

main58802-04080-E0iRZN161,171,VZN170..4FC200009-200409

W(REAR CONSOLE BOX & SEPARATE SEAT),OAK,TRIM4#

main58802-04090-B0iVZN170..4FC200009-200409

W(2-4 SELECTOR),DK.CHARCOAL,TRIM1#

main58802-04090-E0iVZN170..4FC200009-200409

W(2-4 SELECTOR),OAK,TRIM4#

main58802-04100-B0iRZN161,171,VZN170..5F200009-200409

DK.CHARCOAL,TRIM1#

main58802-04100-E0iRZN161,171,VZN170..5F200009-200409

OAK,TRIM4#

main58802-04110-B0iVZN170..R200009-200409

W(2-4 SELECTOR),DK.CHARCOAL,TRIM1#

main58802-04110-E0iVZN170..R200009-200409

W(2-4 SELECTOR),OAK,TRIM4#

main58802-04120-B0iRZN161,171,VZN170..(RCB,XTR)..4FC200009-200409

DK.CHARCOAL,TRIM1#

main58802-04120-E0iRZN161,171,VZN170..(RCB,XTR)..4FC200009-200409

OAK,TRIM4#

main58802-04130-B0iVZN170..XTR..4FC200009-200409

W(2-4 SELECTOR & REAR CONSOLE BOX & SEPARATE SEAT),DK.CHARCOAL,TRIM1#

main58802-04130-E0iVZN170..XTR..4FC200009-200409

W(2-4 SELECTOR & REAR CONSOLE BOX & SEPARATE SEAT),OAK,TRIM4#

main58802-35080-B0iRZN161,171,VZN160,170..5F199501-199706

BLUISH GRAY,TRIM1#

main58802-35080-B1iRZN161,171,VZN170..5F199706-200009

W(REAR CONSOLE BOX & SEPARATE SEAT),MD.MOON MIST,TRIM1#

main58802-35080-E0iRZN161,171,VZN160,170..5F199501-200009

W(REAR CONSOLE BOX & SEPARATE SEAT),OAK,TRIM4#

main58802-35090-B0iVZN170..R..SR5199501-199706

W(2-4 SELECTOR),BLUISH GRAY,TRIM1#

main58802-35090-B1iVZN170..R..SR5199706-200009

W(2-4 SELECTOR),MD.MOON MIST,TRIM1#

main58802-35090-E0iVZN170..R..DLX199706-200009

W(2-4 SELECTOR & REAR CONSOLE BOX & SEPARATE SEAT),OAK,TRIM4#

main58802-35190-B0iRZN161,171,VZN170..5F200009-200409

W(REAR CONSOLE BOX & SEPARATE SEAT),DK.CHARCOAL,TRIM1#

main58802-35190-E0iRZN161,171,VZN170..5F200009-200409

W(REAR CONSOLE BOX & SEPARATE SEAT),OAK,TRIM4#

main58802-35200-B0iVZN170..R200009-200409

W(2-4 SELECTOR & REAR CONSOLE BOX & SEPARATE SEAT),DK.CHARCOAL,TRIM1#

main58802-35200-E0iVZN170..R200009-200409

W(2-4 SELECTOR & REAR CONSOLE BOX & SEPARATE SEAT),OAK,TRIM4#

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-04020iRZN161,171,VZN170..5F199706-200009

main58991-04030iRZN161,171,VZN170..5F200009

main58991-35020iRZN161,171,VZN160,170..5F199501-199706

9015960397

main90159-60397

9018905039

main90189-05039

9018905045

main90189-05045

9018906029

main90189-06029

9356755016

main93567-55016

7 parts on this diagram · 6 diagrams in section
