Toyota TACOMA — ARMREST & VISOR

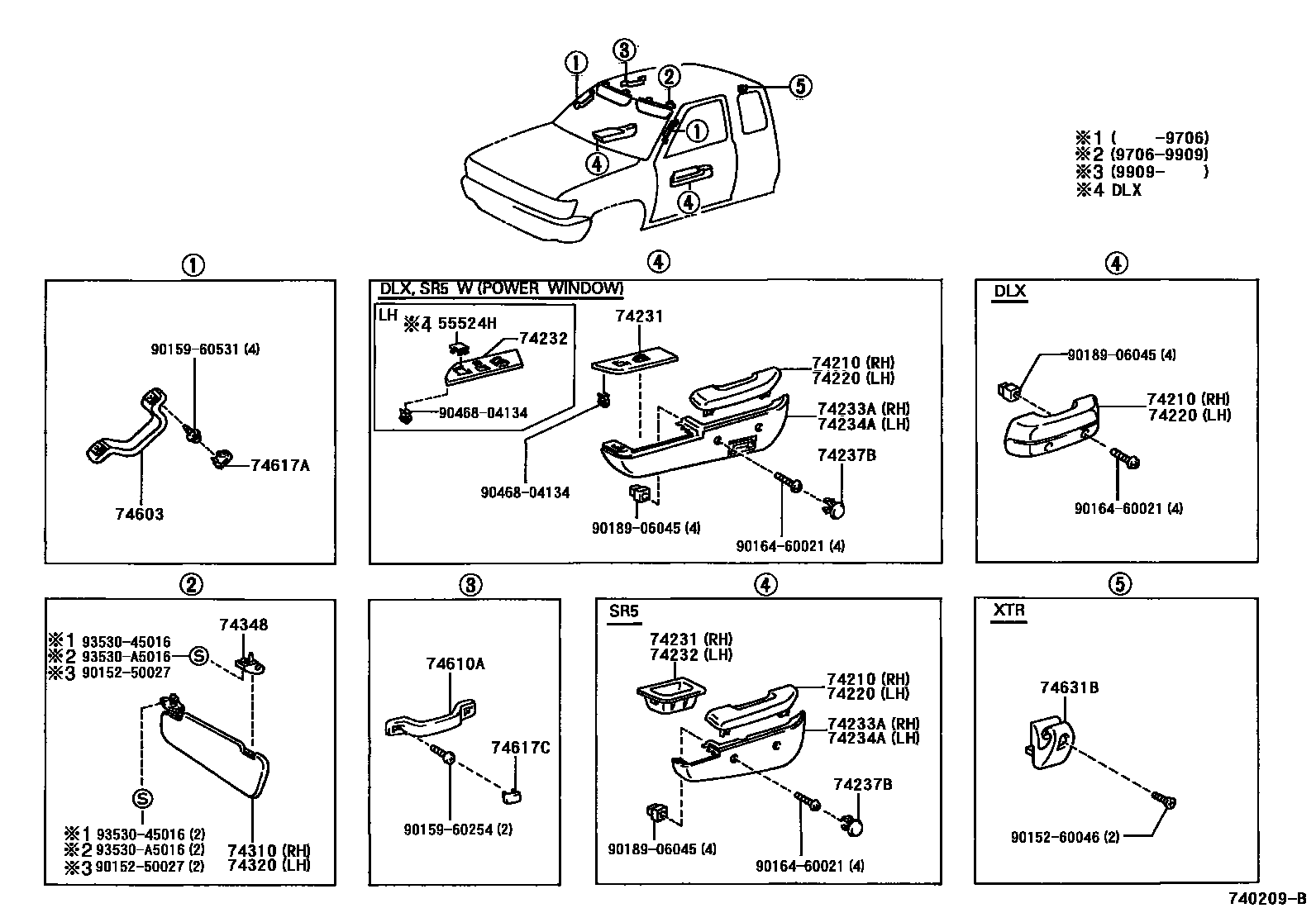

Parts diagram
55524HCOVER, SWITCH BASE HOLE
main55524-35010-B0i199501-199706
BLUISH GRAY,TRIM1#
main55524-35010-B1i199706-200009
MD.MOON MIST,TRIM1#
main55524-35010-E0i199501-200009
OAK,TRIM4#
74210ARMREST ASSY, FRONT, RH
main74210-04020-B1i199501-199706
BLUISH GRAY,TRIM1#
main74210-04020-B2i199706-200009
MD.MOON MIST,TRIM1#
main74210-04020-E2i199501-200009
OAK,TRIM4#
main74210-04030-B0i200009-200409
MD.CHARCOAL,TRIM1#
main74210-04030-E0i200009-200409
MD.OAK,TRIM4#
main74210-35010-B0i199501-199706
BLUISH GRAY,TRIM1#; W(POWER WINDOW & POWER DOOR LOCK),BLUISH GRAY,TRIM1#
main74210-35010-B1i199706-200009
MD.MOON MIST,TRIM1#; W(POWER WINDOW & POWER DOOR LOCK),MD.MOON MIST,TRIM1#
main74210-35010-E0i199501-200009
OAK,TRIM4#; W(POWER WINDOW & POWER DOOR LOCK),OAK,TRIM4#
74220ARMREST ASSY, FRONT, LH
main74210-04020-B1i199501-199706
BLUISH GRAY,TRIM1#
main74210-04020-B2i199706-200009
MD.MOON MIST,TRIM1#
main74210-04020-E2i199501-200009
OAK,TRIM4#
main74220-04010-B0i200009-200409
MD.CHARCOAL,TRIM1#
main74220-04010-E0i200009-200409
MD.OAK,TRIM4#
main74220-35010-B0i199501-199706
BLUISH GRAY,TRIM1#; W(POWER WINDOW & POWER DOOR LOCK),BLUISH GRAY,TRIM1#
main74220-35010-B1i199706-200009
MD.MOON MIST,TRIM1#; W(POWER WINDOW & POWER DOOR LOCK),MD.MOON MIST,TRIM1#
main74220-35010-E0i199501-200009
OAK,TRIM4#; W(POWER WINDOW & POWER DOOR LOCK),OAK,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74201-35010-B0i200009-200409
MD.CHARCOAL,TRIM1#
main74201-35010-E0i200009-200409
MD.OAK,TRIM4#
main74231-35010-B0i199501-199706
W(POWER WINDOW & POWER DOOR LOCK),BLUISH GRAY,TRIM1#
main74231-35010-B1i199706-200009
W(POWER WINDOW & POWER DOOR LOCK),MD.MOON MIST,TRIM1#
main74231-35010-E0i199501-200009
W(POWER WINDOW & POWER DOOR LOCK),OAK,TRIM4#
main74231-89102-B0i199501-199706
BLUISH GRAY,TRIM1#
main74231-89102-B1i199706-200009
MD.MOON MIST,TRIM1#
main74231-89102-E2i199501-200009
OAK,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74202-35010-B0i200009-200409
MD.CHARCOAL,TRIM1#
main74202-35010-E0i200009-200409
MD.OAK,TRIM4#
main74202-35020-B0i200009-200409
MD.CHARCOAL,TRIM1#
main74202-35020-E0i200009-200409
MD.OAK,TRIM4#
main74232-89102-B0i199501-199706
BLUISH GRAY,TRIM1#
main74232-89102-B1i199706-200009
MD.MOON MIST,TRIM1#
main74232-89102-E2i199501-200009
OAK,TRIM4#
main74232-89104-B0i199501-199706
W(POWER WINDOW & POWER DOOR LOCK),BLUISH GRAY,TRIM1#
main74232-89104-B1i199706-200009
W(POWER WINDOW & POWER DOOR LOCK),MD.MOON MIST,TRIM1#
main74232-89104-E2i199501-200009
W(POWER WINDOW & POWER DOOR LOCK),OAK,TRIM4#
74233APANEL, FRONT DOOR ARMREST BASE, LOWER RH
main74233-35010-B0i199501-199706
BLUISH GRAY,TRIM1#
main74233-35010-B1i199706-200009
MD.MOON MIST,TRIM1#
main74233-35010-E0i199501-200009
OAK,TRIM4#
main74233-35020-B0i199501-199706
W(POWER WINDOW & POWER DOOR LOCK),BLUISH GRAY,TRIM1#
main74233-35020-B1i199706-200009
W(POWER WINDOW & POWER DOOR LOCK),MD.MOON MIST,TRIM1#
main74233-35020-E0i199501-200009
W(POWER WINDOW & POWER DOOR LOCK),OAK,TRIM4#
74234APANEL, FRONT DOOR ARMREST BASE, LOWER LH
main74234-35010-B0i199501-199706
BLUISH GRAY,TRIM1#
main74234-35010-B1i199706-200009
MD.MOON MIST,TRIM1#
main74234-35010-E0i199501-200009
OAK,TRIM4#
main74234-35020-B0i199501-199706
W(POWER WINDOW & POWER DOOR LOCK),BLUISH GRAY,TRIM1#
main74234-35020-B1i199706-200009
W(POWER WINDOW & POWER DOOR LOCK),MD.MOON MIST,TRIM1#
main74234-35020-E0i199501-200009
W(POWER WINDOW & POWER DOOR LOCK),OAK,TRIM4#
74237BCAP, DOOR ARMREST BASE
main74237-35010-B0×4i199501-199706
BLUISH GRAY,TRIM1#
main74237-35010-B1×4i199706-200009
MD.MOON MIST,TRIM1#
main74237-35010-E0×4i199501-200009
OAK,TRIM4#
74310VISOR ASSY, RH
main74310-04010-B0i200303-200409
W(VANITY MIRROR),MD.CHARCOAL,TRIM1#
main74310-04010-E0i200303-200409
W(VANITY MIRROR),MD.OAK,TRIM4#
main74310-04020-B0i200303-200409
MD.CHARCOAL,TRIM1#
main74310-04020-E0i200303-200409
MD.OAK,TRIM4#
main74310-04030-B0i200303-200409
MD.CHARCOAL,TRIM1#
main74310-04030-E0i200303-200409
MD.OAK,TRIM4#
main74310-04040-B0i200303-200409
W(VANITY MIRROR),MD.CHARCOAL,TRIM1#
main74310-04040-E0i200303-200409
W(VANITY MIRROR),MD.OAK,TRIM4#
main74310-35080-B0i199501-199609
LIGHT BLUISH GRAY,TRIM1#
main74310-35080-E0i199501-199609
MEDIUM OAK,TRIM4#
main74310-35081-B0i199609-199706
LIGHT BLUISH GRAY,TRIM1#
main74310-35081-E0i199609-199706
MEDIUM OAK,TRIM4#
main74310-35090-B0i199501-199609
LIGHT BLUISH GRAY,TRIM1#; W(POCKET),LIGHT BLUISH GRAY,TRIM1#
main74310-35090-E0i199501-199609
MEDIUM OAK,TRIM4#; W(POCKET),MEDIUM OAK,TRIM4#
main74310-35091-B0i199609-199706
LIGHT BLUISH GRAY,TRIM1#; W(POCKET),LIGHT BLUISH GRAY,TRIM1#
main74310-35091-E0i199609-199706
MEDIUM OAK,TRIM4#; W(POCKET),MEDIUM OAK,TRIM4#
main74310-35180-B1i199706-199708
CANADA SPEC,MOONMIST,TRIM1#
main74310-35180-E1i199706-199708
CANADA SPEC,MEDIUM OAK,TRIM4#
main74310-35190-B1i199706-199708
CANADA SPEC & W(VANITY MIRROR),MOONMIST,TRIM1#
main74310-35190-E1i199706-199708
CANADA SPEC & W(VANITY MIRROR),MEDIUM OAK,TRIM4#
main74310-35390-B0i199706-199708
MOONMIST,TRIM1#
main74310-35390-E0i199706-199708
MEDIUM OAK,TRIM4#
main74310-35410-B0i199708-199908
MOONMIST,TRIM1#
main74310-35410-E0i199708-199908
MEDIUM OAK,TRIM4#
main74310-35420-B0i199708-199908
W(VANITY MIRROR),MOONMIST,TRIM1#
main74310-35420-E0i199708-199908
W(VANITY MIRROR),MEDIUM OAK,TRIM4#
main74310-35550-B0i199908-200009
MOONMIST,TRIM1#
main74310-35550-E0i199908-200009
MEDIUM OAK,TRIM4#
main74310-35560-B0i199908-200009
W(VANITY MIRROR),MOONMIST,TRIM1#
main74310-35560-E0i199908-200009
W(VANITY MIRROR),MEDIUM OAK,TRIM4#
main74310-35570-B0i200009-200303
W(VANITY MIRROR),MD.CHARCOAL,TRIM1#
main74310-35570-E0i200009-200303
W(VANITY MIRROR),MD.OAK,TRIM4#
main74310-35580-B0i200009-200303
MD.CHARCOAL,TRIM1#
main74310-35580-E0i200009-200303
MD.OAK,TRIM4#
main74310-35590-B0i200009-200303
MD.CHARCOAL,TRIM1#
main74310-35590-E0i200009-200303
MD.OAK,TRIM4#
main74310-35600-B0i200009-200303
W(VANITY MIRROR),MD.CHARCOAL,TRIM1#
main74310-35600-E0i200009-200303
W(VANITY MIRROR),MD.OAK,TRIM4#
74320VISOR ASSY, LH
main74320-04050-B0i200303-200409
W(SLIDE SUN VISOR),MD.CHARCOAL,TRIM1#
main74320-04050-E0i200303-200409
W(SLIDE SUN VISOR),MD.OAK,TRIM4#
main74320-04060-B0i200303-200409
MD.CHARCOAL,TRIM1#
main74320-04060-E0i200303-200409
MD.OAK,TRIM4#
main74320-04070-B0i200303-200409
MD.CHARCOAL,TRIM1#
main74320-04070-E0i200303-200409
MD.OAK,TRIM4#
main74320-04080-B0i200303-200409
W(SLIDE SUN VISOR),MD.CHARCOAL,TRIM1#
main74320-04080-E0i200303-200409
W(SLIDE SUN VISOR),MD.OAK,TRIM4#
main74320-35070-B0i199501-199609
LIGHT BLUISH GRAY,TRIM1#
main74320-35070-E0i199501-199609
MEDIUM OAK,TRIM4#
main74320-35071-B0i199702-199706
CANADA SPEC,LIGHT BLUISH GRAY,TRIM1#
main74320-35071-E0i199702-199706
CANADA SPEC,MEDIUM OAK,TRIM4#
main74320-35180-B1i199706-199708
CANADA SPEC,MOONMIST,TRIM1#
main74320-35180-E1i199706-199708
CANADA SPEC,MEDIUM OAK,TRIM4#
main74320-35200-B1i199706-199708
FLOCKED TYPE & CANADA SPEC,MOONMIST,TRIM1#
main74320-35200-E1i199706-199708
FLOCKED TYPE & CANADA SPEC,MEDIUM OAK,TRIM4#
main74320-35380-B0i199702-199706
LIGHT BLUISH GRAY,TRIM1#
main74320-35380-E0i199702-199706
MEDIUM OAK,TRIM4#
main74320-35420-B0i199706-199708
MOONMIST,TRIM1#
main74320-35420-E0i199706-199708
MEDIUM OAK,TRIM4#
main74320-35460-B0i199708-199908
MOONMIST,TRIM1#
main74320-35460-E0i199708-199908
MEDIUM OAK,TRIM4#
main74320-35480-B0i199708-199908
W(VANITY MIRROR),MOONMIST,TRIM1#
main74320-35480-E0i199708-199908
W(VANITY MIRROR),MEDIUM OAK,TRIM4#
main74320-35610-B0i199908-200009
MOONMIST,TRIM1#
main74320-35610-E0i199908-200009
MEDIUM OAK,TRIM4#
main74320-35630-B0i199908-200009
W(VANITY MIRROR),MOONMIST,TRIM1#
main74320-35630-E0i199908-200009
W(VANITY MIRROR),MEDIUM OAK,TRIM4#
main74320-35660-B0i200009-200303
W(SLIDE SUN VISOR),MD.CHARCOAL,TRIM1#
main74320-35660-E0i200009-200303
W(SLIDE SUN VISOR),MD.OAK,TRIM4#
main74320-35670-B0i200009-200303
MD.CHARCOAL,TRIM1#
main74320-35670-E0i200009-200303
MD.OAK,TRIM4#
main74320-35680-B0i200009-200303
MD.CHARCOAL,TRIM1#
main74320-35680-E0i200009-200303
MD.OAK,TRIM4#
main74320-35690-B0i200009-200303
W(SLIDE SUN VISOR),MD.CHARCOAL,TRIM1#
main74320-35690-E0i200009-200303
W(SLIDE SUN VISOR),MD.OAK,TRIM4#
74348HOLDER, VISOR
main74348-22020-B8×2i199710-200009
MOON MIST,TRIM1#
main74348-22020-B9×2i200009-200409
MD.CHARCOAL,TRIM1#
main74348-22020-E1×2i199710-200009
MD.OAK,TRIM4#
main74348-AC010-B3×2i199706-199710
MOON MIST,TRIM1#
main74348-AC010-E2×2i199706-199710
MD.OAK,TRIM4#
main74348-AD010-B0×2i199501-199706
LT.BLUISH GRAY,TRIM1#
main74348-AD010-E0×2i199501-199706
MD.OAK,TRIM4#
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-04020-B0×2i199501-199706
BLUISH GRAY,TRIM1#
main74610-04020-B1×2i199706-200009
MD.MOON MIST,TRIM1#
main74610-04020-E0×2i199501-200009
OAK,TRIM4#
main74610-04040-B0i200009-200109
MD.CHARCOAL,TRIM1#
main74610-04040-E0i200009-200109
MD.OAK,TRIM4#
74610AGRIP SUB-ASSY, ASSIST
main74610-04010-B2i199501-199706
LT.BLUISH GRAY,TRIM1#
main74610-04010-B3i199706-200009
MOON MIST,TRIM1#
main74610-04010-E0i199501-200009
MD.OAK,TRIM4#
main74610-04030-B0×2i200009-200409
MD.CHARCOAL,TRIM1#
main74610-04030-E0×2i200009-200409
MD.OAK,TRIM4#
74617APLUG, ASSIST GRIP
main74617-04010-B2×4i199501-199706
BLUISH GRAY,TRIM1#
main74617-04010-B3×4i199706-200009
MD.MOON MIST,TRIM1#
main74617-04010-B4×4i199706-200009
MOON MIST,TRIM10
main74617-04010-E0×4i199706-200009
MD.OAK,TRIM4#
main74617-04010-E1×4i199706-200009
OAK,TRIM4#; OAK,TRIM40
main74617-04020-B0×2i200109
MD.CHARCOAL,TRIM1#,UPPER
main74617-04020-E0i200009-200109
MD.OAK,TRIM4#,UPPER
main74617-04030-B0i200009-200109
MD.CHARCOAL,TRIM1#,LOWER
main74617-04030-E0i200009-200109
MD.OAK,TRIM4#,LOWER
74617CPLUG, ASSIST GRIP
main74617-04010-B1×2i199501-199706
LT.BLUISH GRAY,TRIM1#
main74617-04010-B3×2i199706-200009
MD.MOON MIST,TRIM1#
main74617-04010-B4×2i199706-200009
MOON MIST,TRIM10
main74617-04010-E0×2i199706-200009
MD.OAK,TRIM4#
main74617-04010-E1×2i199706-200009
OAK,TRIM4#; OAK,TRIM40
main74617-0C030-B1×4i200009-200409
MD.CHARCOAL,TRIM1#
main74617-0C030-E0×4i200009-200409
MD.OAK,TRIM4#
74631BHOOK, COAT
main74631-12070-B1×2i199501-199706
BLUISH GRAY,TRIM1#
main74631-12070-B2×2i199706-200009
MD.MOON MIST,TRIM1#
main74631-12070-B3×2i200009-200409
MD.CHARCOAL,TRIM1#
main74631-12070-E0×2i200009-200409
MD.OAK,TRIM4#
main74631-12070-E1×2i199501-200009
OAK,TRIM4#
main74631-35010-B2×2i200009-200409
MD.CHARCOAL,TRIM1#
main74631-35010-E0×2i200009-200409
MD.OAK,TRIM4#
9015250027
main90152-50027
9015260046
main90152-60046
9015960254
main90159-60254
9015960531
main90159-60531
9016460021
main90164-60021
9018906045
main90189-06045
9046804134
main90468-04134
9353045016
main93530-45016
93530A5016
main93530-A5016

25 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota TACOMA

This section contains 37 genuine Toyota parts for the ARMREST & VISOR system of the Toyota TACOMA. Key components include: COVER, SWITCH BASE HOLE, ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH.
