Toyota TACOMA — AIR BAG

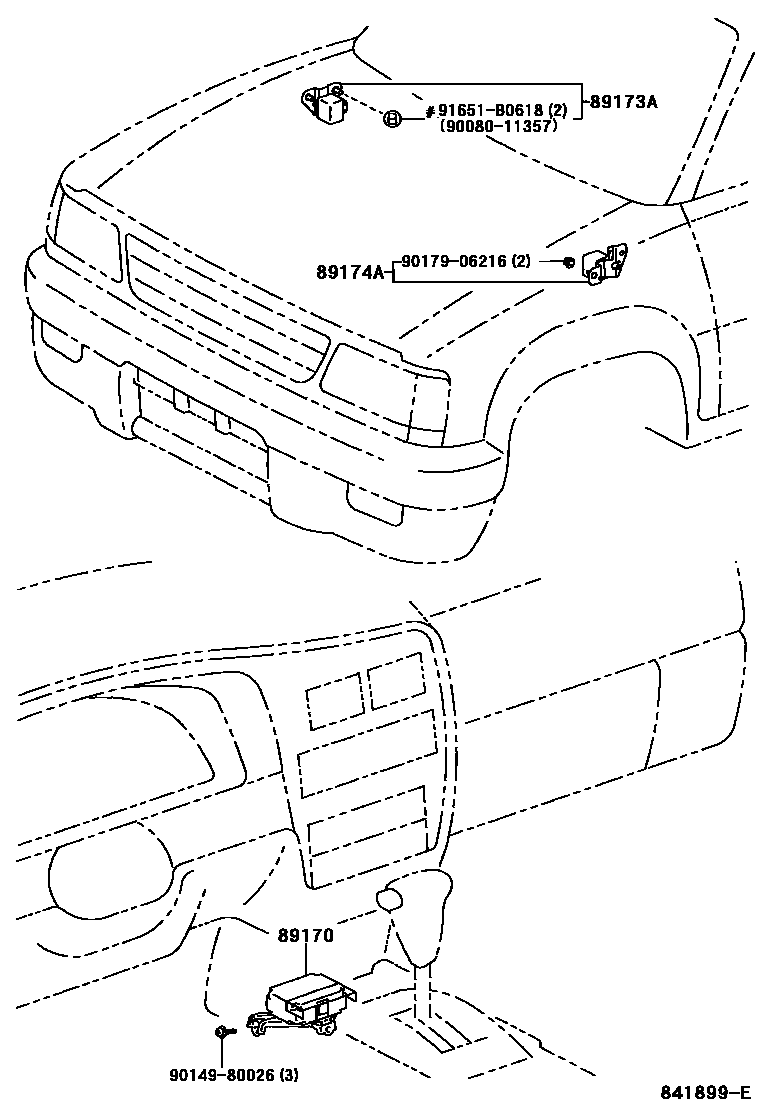

Parts diagram

89170SENSOR ASSY, AIRBAG

main89170-04010i199706-199808

main89170-04020i199808-200006

main89170-04021i200006-200009

main89170-04030i200009-200109

main89170-04040i200109

main89170-35010i199501-199706

89173ASENSOR, AIRBAG, FRONT RH

main89173-39165i199802-200009

main89173-39275i200009-200409

89174ASENSOR, AIRBAG, FRONT LH

main89174-39035i199802-200009

main89174-39145i200009-200409

9008011357

main90080-11357

9014980026

main90149-80026

9017906216

main90179-06216

91651B0618

main91651-B0618

7 parts on this diagram · 1 diagram in section

AIR BAG for Toyota TACOMA

This section contains 7 genuine Toyota parts for the AIR BAG system of the Toyota TACOMA. Key components include: SENSOR ASSY, AIRBAG, SENSOR, AIRBAG, FRONT RH, SENSOR, AIRBAG, FRONT LH.
