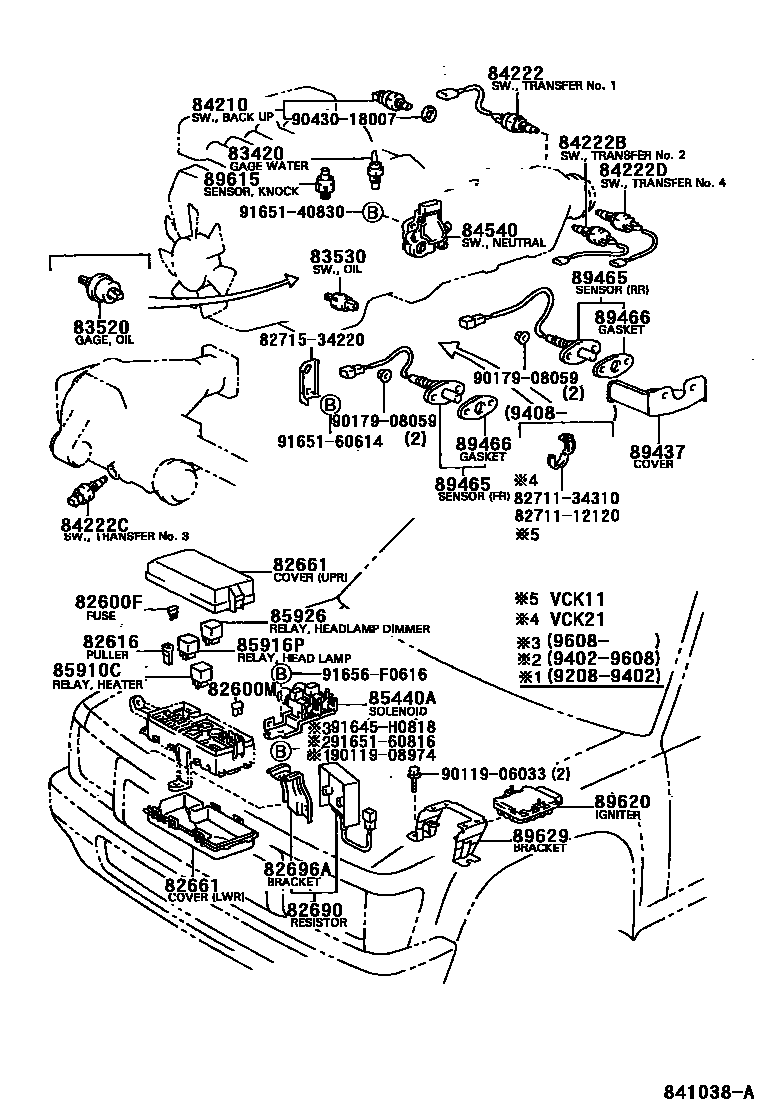

Toyota T100 — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

82600FFUSE, FUSE BLOCK

main90080-82012×3iVCK11,21..MTM..DLX..USA199608

10A,RED

main90080-82013×4iVCK11,21..MTM..DLX..USA199608

15A,BLUE

main90080-82014iVCK11,21..MTM..DLX..USA199608

20A,YELLOW

main90080-82015×3iVCK11,21..MTM..DLX..USA199608

7.5A,BROWN

main90982-09002iRCK10,VCK1#,2#199208

10A,TAIHEIYO

main90982-09003iRCK10,VCK1#,2#199208

15A,TAIHEIYO

main90982-09004iRCK10,VCK1#,2#199208

20A,YELLOW,TAIHEIYO

main90982-09005iRCK10,VCK1#,2#199208

7.5A,TAIHEIYO

82600MFUSE, MEDIUM CURRENT

main90982-10001iRCK10,VCK1#,2#199208

30A,PINK

main90982-10002×2iRCK10,VCK1#,2#199208

40A,GREEN

82616PULLER, FUSE

main82616-89102iRCK10,VCK1#,2#199208

82661COVER, RELAY BLOCK, NO.1

main82661-34020iRCK10,VCK1#,2#..USA199208-199608

UPPER

main82661-34030iVCK1#,2#..CND199208-199608

UPPER

main82661-34070iVCK11,21..USA199408-199608

W(4 WHEEL-ABS),UPPER

main82661-34080iVCK11,21..CND199408-199608

W(4 WHEEL-ABS),UPPER

main82661-34090iRCK10,VCK11,21..USA199608

UPPER

main82661-34100iVCK11,21..CND199608

UPPER

main82661-34110iVCK11,21..USA199608

W(4 WHEEL-ABS),UPPER

main82661-34120iVCK11,21..CND199608

W(4 WHEEL-ABS),UPPER

main82663-34010iRCK10,VCK10,20199208-199408

LOWER

main82663-34011iRCK10,VCK11,21199408

LOWER

82690RESISTOR ASSY, DIM DIP LAMP

main82690-34010iVCK10,20..CND199208-199308

main82690-34011iVCK1#,2#..CND199308

82696ABRACKET, RUNNING LIGHT RESISTOR

main82696-34010iVCK10,20..CND199208-199308

main82696-34011iVCK1#,2#..CND199308

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iVCK1#,2#199208

main83420-20040iRCK10199310

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-34010iRCK10,VCK1#,2#199208-199608

W(TACHO METER)

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iRCK10199803

DENSO

main83530-30090iRCK10,VCK1#,2#..DLX,STD199208-199608

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iRCK10,VCK10,20..MTM199208

sub84210-52050

main84210-30060iVCK11,21..MTM199408

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-35060iVCK2#199208

main84222-35080iVCK21..MTM199609

W(ABS)

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35060iVCK21..RCB..MTM;VCK21..MTM..DLX..CND199608-199609

main84222-35080iVCK2#..ATM199208

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35070iVCK2#199208

84222DSWITCH, TRANSFER INDICATOR, NO.4

main84222-35090iVCK2#..ATM199208

84540SWITCH ASSY, NEUTRAL START

main84540-30270iRCK10,VCK1#,2#..ATM199208

MATUSHITA

85440ASOLENOID ASSY, FOUR WHEEL DRIVE CONTROL

main85440-34010iVCK21199408

main85440-35010iVCK20199208-199408

85910CRELAY ASSY (FOR HEATER BLOWER MOTOR)

main90987-04002iRCK10,VCK1#,2#199208

85916PRELAY, HEADLAMP

main90987-02006iRCK10,VCK1#,2#199208

85926RELAY, HEADLAMP DIMMER

main85926-30020iVCK1#,2#..CND199208

89437COVER, SENSOR

main89437-35020iVCK10..USA199208-199308

CALIFORNIA SPEC

89465SENSOR, OXYGEN

main89465-29825iVCK11;RCK10..ATM199408-199807

REAR

main89465-39605iRCK10..MTM199508-199807

FRONT

main89465-39625iVCK10..USA199208-199308

CALIFORNIA SPEC,FRONT

main89465-39635iVCK10..USA199208-199408

CALIFORNIA SPEC,REAR

main89465-39705iVCK20..USA199308-199408

CALIFORNIA SPEC,REAR

main89465-39735iVCK21199408-199807

REAR

main89465-39775iRCK10..MTM199310-199508

FRONT

main89465-39785iVCK11..MTM199408-199807

FRONT

main89465-39835iRCK10,VCK11,21..ATM199408-199807

FRONT

main89465-39875iVCK21..MTM199408-199807

FRONT

89466GASKET, OXYGEN SENSOR

main89466-20020×2iVCK10,20..USA199308-199408

CALIFORNIA SPEC

89615SENSOR, KNOCK CONTROL

main89615-12040×2iVCK11,21199408

MATSUSHITA

main89615-12050×2iVCK11,21199408

NIPPONDENSO

sub89615-12090

main89615-50010iRCK10,VCK10,20199208

89620IGNITER ASSY

main89621-12050iVCK10,20199208-199408

main89621-16020iRCK10199310-199708

sub89621-26010

main89621-35010iVCK11,21199408-199411

main89621-35011iVCK11,21199411-199608

main89621-35020iVCK11,21199608

89629BRACKET, IGNITER ASSY

main89629-30160iRCK10199310-199708

main89629-34010iVCK10,20199208-199408

main89629-34020iVCK11,21199408

8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12120

8271134310WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34310

8271534220BRACKET,WIRING HARNESS CLAMP

main82715-34220

9011906033

main90119-06033

9011908974

main90119-08974

9017908059

main90179-08059

9043018007

main90430-18007

91645H0818

main91645-H0818

9165140830

main91651-40830

9165160614

main91651-60614

9165160816

main91651-60816

91656F0616

main91656-F0616

37 parts on this diagram · 4 diagrams in section
