Toyota T100 — REAR BODY FLOOR & FENDER

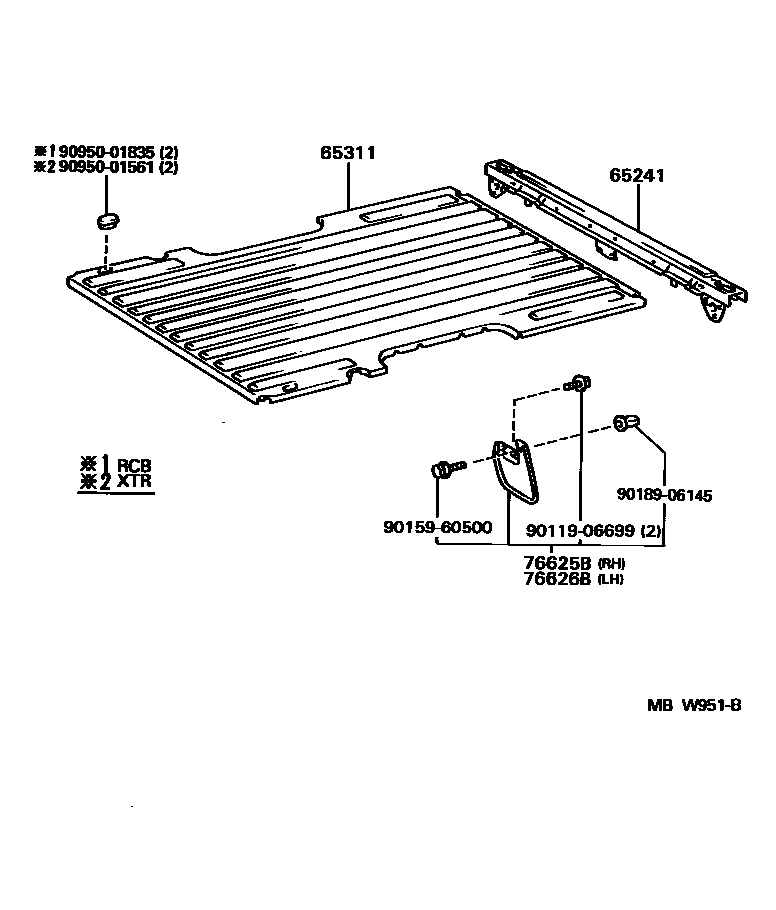

Parts diagram

65241SILL, REAR CROSS

main65240-34010i199208

main65240-34020i199208

65311PANEL, FLOOR, CENTER

main65311-34020i199208-199508

main65311-34040i199410

main65311-34060i199508

76625BMUDGUARD, REAR BODY, RH

main76625-39395i199208

COLD AREA

main76625-39405i199208

76626BMUDGUARD, REAR BODY, LH

main76626-39395i199208

COLD AREA

main76626-39405i199208

9011906699

main90119-06699

9015960500

main90159-60500

9018906145

main90189-06145

9095001561

main90950-01561

9095001835

main90950-01835

9 parts on this diagram · 1 diagram in section

REAR BODY FLOOR & FENDER for Toyota T100

This section contains 9 genuine Toyota parts for the REAR BODY FLOOR & FENDER system of the Toyota T100. Key components include: SILL, REAR CROSS, PANEL, FLOOR, CENTER, MUDGUARD, REAR BODY, RH, MUDGUARD, REAR BODY, LH.
