Toyota T100 — PARTIAL ENGINE ASSEMBLY

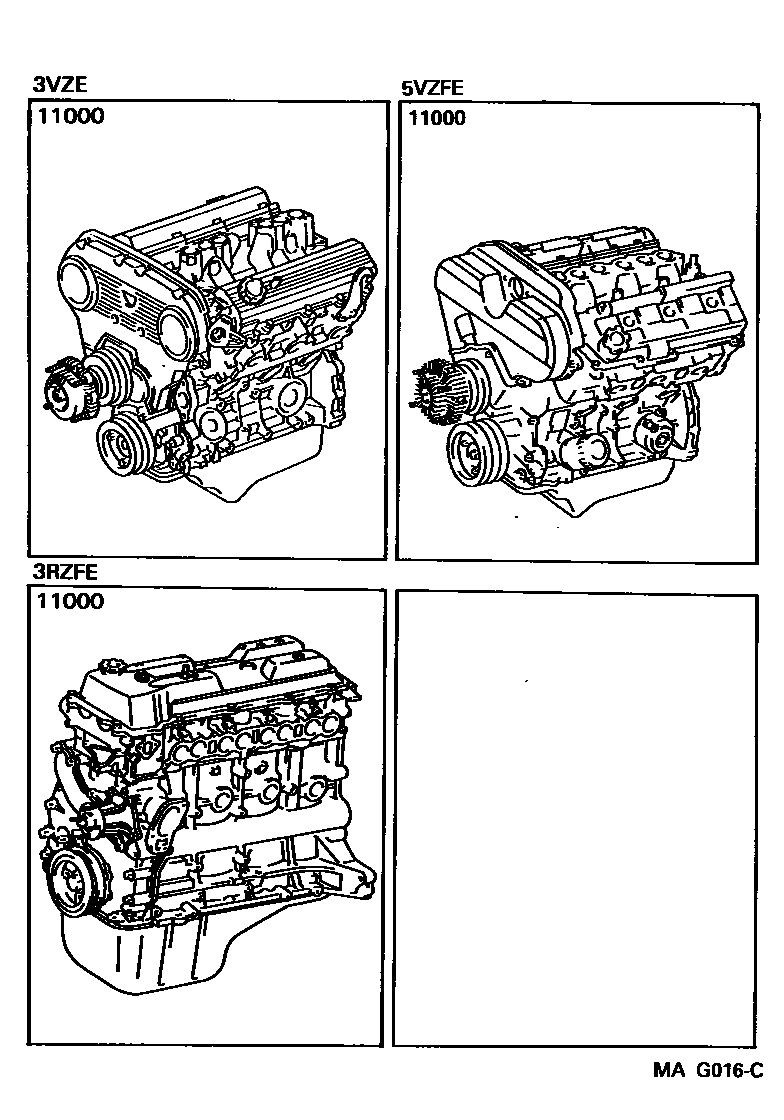

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-62200i199408-199608
main19000-62202i199608-199705
main19000-62203i199705-199708
sub12180-75021
main19000-62204i199708
main19000-62210i199408-199608
main19000-62211i199608-199705
main19000-62212i199705-199708
sub12180-75021
main19000-62213i199708
main19000-62230i199408-199608
main19000-62231i199608-199705
main19000-62232i199705-199708
sub12180-75021
main19000-62233i199708
main19000-65080i199208-199309
main19000-65081i199309-199408
main19000-65090i199208-199309
main19000-65091i199309-199408
main19000-75100i199310-199407
main19000-75101i199407-199508
main19000-75270i199508-199708
main19000-75450i199708-199804
main19000-75451i199804

1 parts on this diagram · 1 diagram in section
