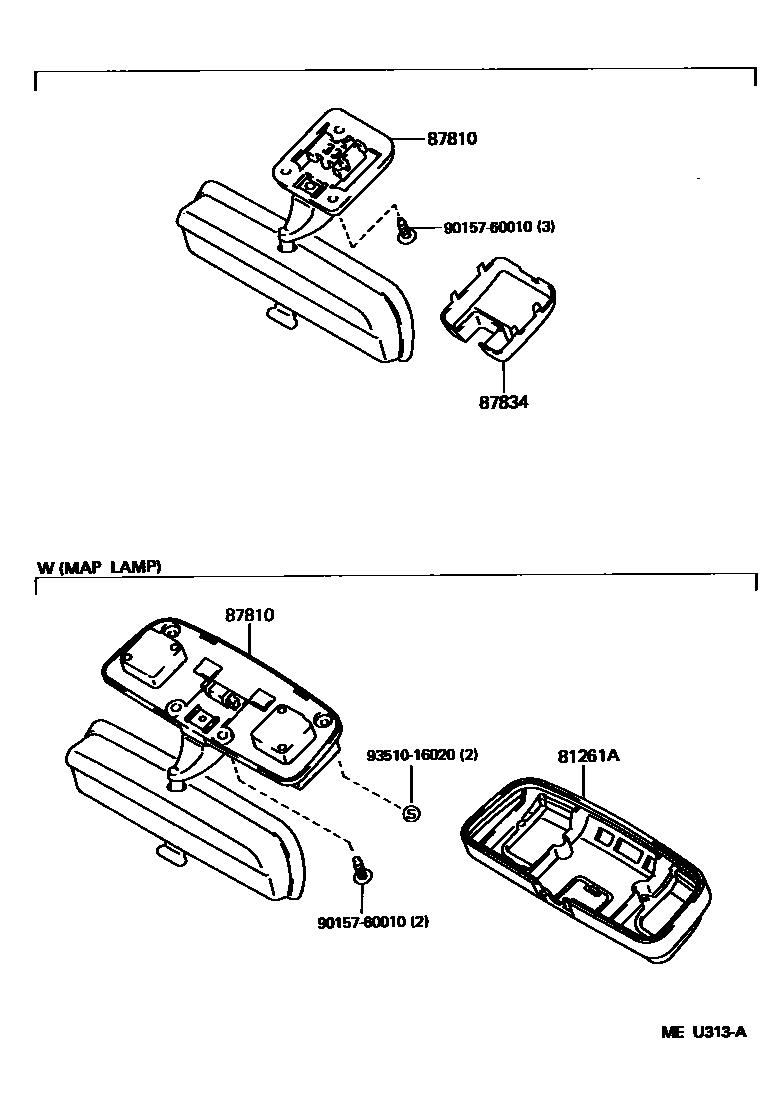

Toyota T100 — MIRROR

81261ALENS AND COVER, MAP LAMP

main81261-34010-B0i199208-199408

GRAY,TRIM1#

main81261-34010-E0i199208-199408

OAK,TRIM4#

main81261-34010-J0i199208-199408

BLUE,TRIM8#

main87818-34010-B0i199408-199608

GRAY,TRIM1#

main87818-34010-B1i199608

MOON MIST,TRIM1#

main87818-34010-E0i199408

OAK,TRIM4#

main87818-34010-J0i199408-199608

BLUE,TRIM8#

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W010-B0i199310-199608

EXTRA PACKAGE,GRAY,TRIM1#

main87810-0W010-B2i199608

EXTRA PACKAGE,MD.MOON MIST,TRIM1#; MD.MOON MIST,TRIM1#

main87810-0W010-E0i199208

OAK,TRIM4#

main87810-0W010-J0i199208-199608

BLUE,TRIM8#

main87810-34010-B0i199208-199408

GRAY,TRIM1#

main87810-34010-E0i199208-199408

OAK,TRIM4#

main87810-34010-J0i199208-199408

BLUE,TRIM8#

main87810-34030-B1i199310-199608

GRAY,TRIM1#

main87810-34030-B3i199608

MOON MIST,TRIM1#

main87810-34030-E1i199310

OAK,TRIM4#

main87810-34030-J1i199310-199608

BLUE,TRIM8#

main87810-34040-B1i199408-199608

GRAY,TRIM1#

main87810-34040-B3i199608

MOON MIST,TRIM1#

main87810-34040-E1i199408

OAK,TRIM4#

main87810-34040-J1i199408-199608

BLUE,TRIM8#

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-89105-03i199208-199303

GRAY,TRIM1#

main87834-89105-B2i199608

MOON MIST,TRIM1#

main87834-89105-E1i199208-199501

OAK,TRIM4#

main87834-89105-E2i199501

MD.OAK,TRIM4#

main87834-89105-J0i199208-199608

BLUE,TRIM8#

main87834-89105-S7i199303-199608

MEDIUM GRAY,TRIM1#

9015760010

main90157-60010

9351016020

main93510-16020

5 parts on this diagram · 2 diagrams in section

MIRROR for Toyota T100

This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota T100. Key components include: LENS AND COVER, MAP LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, MIRROR, OUTER REAR VIEW, RH.
