Toyota T100 — METER

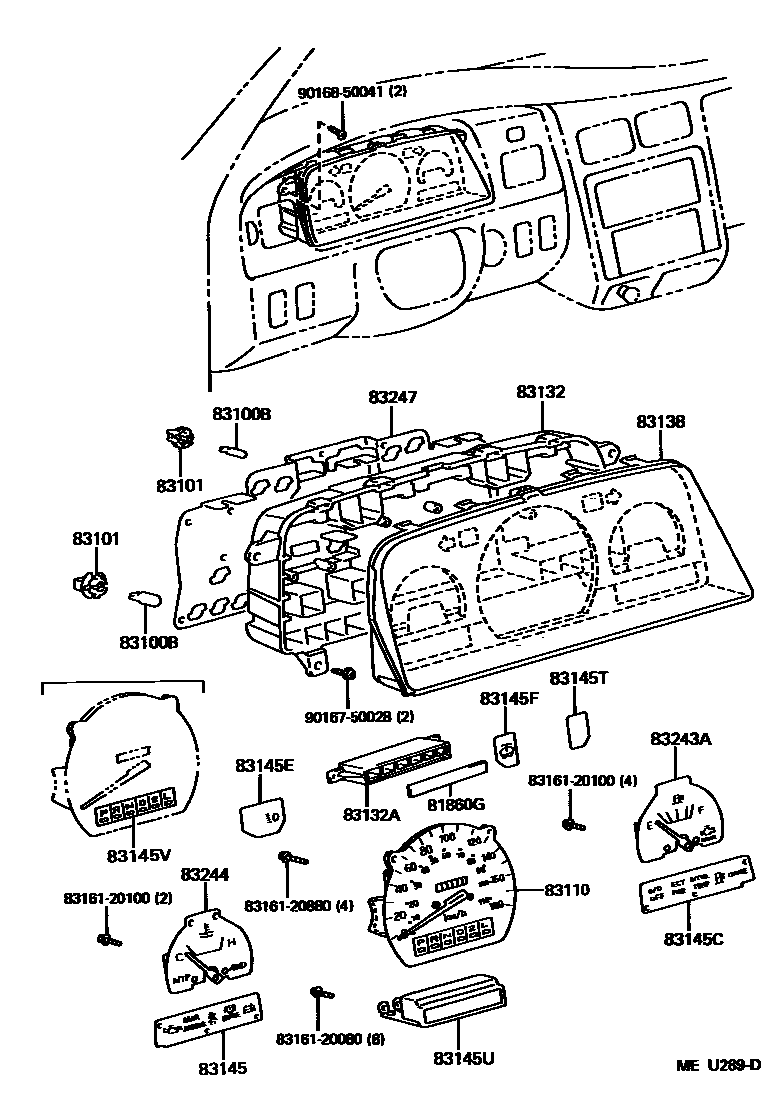

Parts diagram
81860GLAMP ASSY, TRANSMISSION INDICATOR
main81860-04010i199208-199308
83100BBULB, COMBINATION METER, NO.1
main83109-37020i199208-199608
12V 1.7W
main83119-35020i199208-199308
14V 1.4W
main83120-04010i199208
12V 3.4W,GREEN CAP
main83120-04020i199208-199408
12V 3.4W W(RED CAP)
main83120-04030i199208-199408
12V 1.4W W(RED CAP)
main83120-04040i199208
12V 3.4W,W(SOCKET)
main83120-04050i199208-199408
12V 1.4W,W(SOCKET)
main83120-04060i199208-199608
12V 1.7W,W(SOCKET)
main83120-0W030i199608
12V 1.4W
main83120-0W030i199408-199608
12V 1.4W,NO.2
main83120-0W040i199408-199608
12V 1.4W
main83120-0W040i199310-199408
12V 1.4W,NO.2
main84999-30020i199308-199608
12V 1.4W,NO.2
main90981-11018i199208-199408
12V 1.2W W/O SOCKET
main99132-12034i199208
12V 3.4W
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14040i199208-199608
12V 1.4W BULB
main83101-20040i199208-199608
12V 3.4W BULB
83110SPEEDOMETER ASSY
main83110-04020i199208-199308
main83110-04030i199208-199308
main83110-04040i199208-199308
W(TACHOMETER)
main83110-0W050i199308-199608
main83110-0W060i199310
main83110-0W070i199310
EXTRA PACKAGE
main83110-0W080i199308-199408
main83110-0W081i199408-199608
main83110-0W100i199310-199408
EXTRA PACKAGE & W(TACHOMETER)
main83110-0W101i199408-199608
EXTRA PACKAGE & W(TACHOMETER)
main83110-0W110i199308-199408
W(TACHOMETER)
main83110-0W111i199408-199608
W(TACHOMETER)
main83110-0W111i199608
main83110-0W120i199408
main83110-34060i199308-199408
main83110-34061i199408-199608
main83110-34100i199308-199408
W(TACHOMETER)
main83110-34101i199408-199608
W(TACHOMETER)
main83110-34101i199608
main83110-34110i199308-199608
main83110-35200i199208-199308
main83110-35220i199208-199308
main83110-35390i199208-199308
W(TACHOMETER)
83132CASE, COMBINATION METER
main83132-04010i199208-199308
main83132-04020i199208-199308
W(TACHOMETER)
main83132-0W020i199308-199608
main83132-0W030i199308-199608
W(TACHOMETER)
main83132-0W030i199310-199608
EXTRA PACKAGE & W(TACHOMETER)
main83132-0W030i199608
main83132-35020i199208-199308
main83132-35040i199208-199308
W(TACHOMETER)
main83132-89502i199308-199608
W(TACHOMETER)
main83132-89502i199608
main83132-89504i199308-199608
83132ACASE, METER
main83132-0W040i199310-199408
EXTRA PACKAGE & W(TACHOMETER)
main83132-89506i199408-199608
83138GLASS, SPEEDOMETER
main83138-04010i199208-199608
main83138-04020i199310
EXTRA PACKAGE
main83138-04020i199208-199608
main83138-04030i199208-199608
W(TACHOMETER)
main83138-04030i199608
main83138-0W010i199208-199608
W(TACHOMETER)
main83138-0W010i199310-199408
EXTRA PACKAGE & W(TACHOMETER)
main83138-0W010i199608
main83138-0W020i199408-199608
EXTRA PACKAGE & W(TACHOMETER)
main83138-0W030i199408-199608
EXTRA PACKAGE & W(TACHOMETER)
main83138-34020i199208-199608
main83138-89402i199208-199608
main83138-89532i199208-199608
W(TACHOMETER)
main83138-89532i199608
83145LENS, METER, NO.1
main83145-04040i199208-199408
W(TACHOMETER)
main83145-04040i199310-199408
EXTRA PACKAGE & W(TACHOMETER)
main83145-04050i199208-199308
W(CRUISE CONTROL) OR W(ABS)
main83145-04050i199308-199408
main83145-0W020i199408-199608
W(TACHOMETER)
main83145-0W020i199608
main83145-0W030i199608
main83145-0W030i199408-199608
W(TACHOMETER)
main83145-0W070i199408-199608
W(CRUISE CONTROL) OR W(ABS)
main83145-0W080i199408-199608
main83145-0W130i199308-199408
W(CRUISE CONTROL) OR W(ABS)
main83145-0W130i199208-199308
main83145-0W170i199208-199408
W(TACHOMETER)
main83145-34120i199408-199608
main83145-34140i199408-199608
W(TACHOMETER)
main83145-34140i199608
main83145-35220i199208-199408
W(TACHOMETER)
main83145-89572i199208-199408
W(TACHOMETER)
main83145-89602i199208-199408
83145CLENS, METER, NO.4
main83145-04100i199208-199308
W(TACHOMETER)
main83145-0W060i199308-199608
W(TACHOMETER)
main83145-0W060i199608-199807
main83145-0W060i199310-199608
EXTRA PACKAGE & W(TACHOMETER)
main83145-0W090i199608-199807
main83145-0W090i199408-199608
W(CRUISE CONTROL) OR W(ABS)
main83145-0W100i199408-199807
main83145-0W110i199408-199608
main83145-0W140i199308-199408
main83145-0W150i199308-199408
W(CRUISE CONTROL) OR W(ABS)
main83145-0W160i199308-199408
main83145-0W190i199208-199308
main83145-0W200i199208-199308
W(CRUISE CONTROL) OR W(ABS)
main83145-34002i199308-199608
main83145-34004i199308-199408
main83145-34006i199308-199608
W(TACHOMETER)
main83145-34006i199608-199807
main83145-34060i199208-199308
main83145-34160i199408-199608
main83145-89552i199208-199308
W(TACHOMETER)
83145ELENS, METER, NO.6
main83145-04010i199208-199608
main83145-89502i199208-199608
83145FLENS, METER, NO.7
main83145-34020i199208-199608
83145TLENS, METER, NO.8
main83145-04020i199208-199608
main83145-89504i199208-199608
83145ULENS, METER, NO.9
main83145-35260i199208-199308
83145VLENS, METER, NO.10
main83145-0W120i199408-199608
main83145-0W120i199310-199408
EXTRA PACKAGE & W(TACHOMETER)
main83145-89514i199308-199608
83243AGAUGE SUB-ASSY, FUEL RECEIVER
main83243-04010i199208-199608
main83243-04020i199208-199408
W(TACHOMETER)
main83243-04020i199310-199408
EXTRA PACKAGE & W(TACHOMETER)
main83243-0W030i199408-199608
EXTRA PACKAGE & W(TACHOMETER)
main83243-0W030i199408-199608
W(TACHOMETER)
main83243-0W030i199608
main83243-34020i199408-199608
W(TACHOMETER)
main83243-34020i199608
main83243-35060i199208-199608
main83243-35100i199208-199408
W(TACHOMETER)
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
main83244-04010i199208-199608
main83244-04020i199208-199608
W(CRUISE CONTROL) OR W(ABS)
main83244-04030i199310-199408
EXTRA PACKAGE & W(TACHOMETER)
main83244-04030i199208-199408
W(TACHOMETER)
main83244-0W030i199208-199608
main83244-0W040i199408-199608
W(TACHOMETER)
main83244-0W040i199408-199608
EXTRA PACKAGE & W(TACHOMETER)
main83244-0W040i199608
main83244-34120i199608
main83244-34120i199408-199608
W(TACHOMETER)
main83244-35060i199208-199608
main83244-35080i199208-199608
main83244-35140i199208-199408
W(TACHOMETER)
83247PLATE, METER CIRCUIT
main83247-04050i199208-199308
W(TACHOMETER)
main83247-0W030i199408-199608
main83247-0W040i199408
main83247-0W050i199408-199608
main83247-0W060i199408-199608
W(TACHOMETER)
main83247-0W060i199608
main83247-0W060i199408-199608
EXTRA PACKAGE & W(TACHOMETER)
main83247-0W070i199408-199608
EXTRA PACKAGE & W(TACHOMETER)
main83247-0W080i199608
main83247-0W080i199408-199608
W(TACHOMETER)
main83247-0W100i199308-199408
main83247-0W110i199308-199408
main83247-0W120i199308-199408
W(TACHOMETER)
main83247-0W120i199310-199408
EXTRA PACKAGE & W(TACHOMETER)
main83247-0W130i199308-199408
W(TACHOMETER)
main83247-0W150i199208-199308
main83247-0W160i199208-199308
main83247-0W180i199208-199308
W(TACHOMETER)
main83247-34002i199308-199408
main83247-34004i199308-199408
main83247-34006i199308-199408
W(TACHOMETER)
main83247-34020i199208-199308
main83247-34040i199208-199308
main83247-34060i199208-199308
W(TACHOMETER)
main83247-34080i199208-199308
W(TACHOMETER)
main83247-34104i199308-199408
W(TACHOMETER)
main83247-34120i199408-199608
main83247-34140i199408-199608
main83247-34160i199608
main83247-34160i199408-199608
W(TACHOMETER)
main83247-34180i199608
main83247-34180i199408-199608
W(TACHOMETER)
8316120080CASE, COMBINATION METER MIRROR, NO.1
main83161-20080
8316120100CASE, COMBINATION METER MIRROR, NO.1
main83161-20100
8316120880CASE, COMBINATION METER MIRROR, NO.1
main83161-20880
9016750028
main90167-50028
9016850041
main90168-50041

22 parts on this diagram · 5 diagrams in section

METER for Toyota T100

This section contains 51 genuine Toyota parts for the METER system of the Toyota T100. Key components include: LAMP ASSY, TRANSMISSION INDICATOR, BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, CASE, COMBINATION METER.
