Toyota T100 — CONSOLE BOX & BRACKET

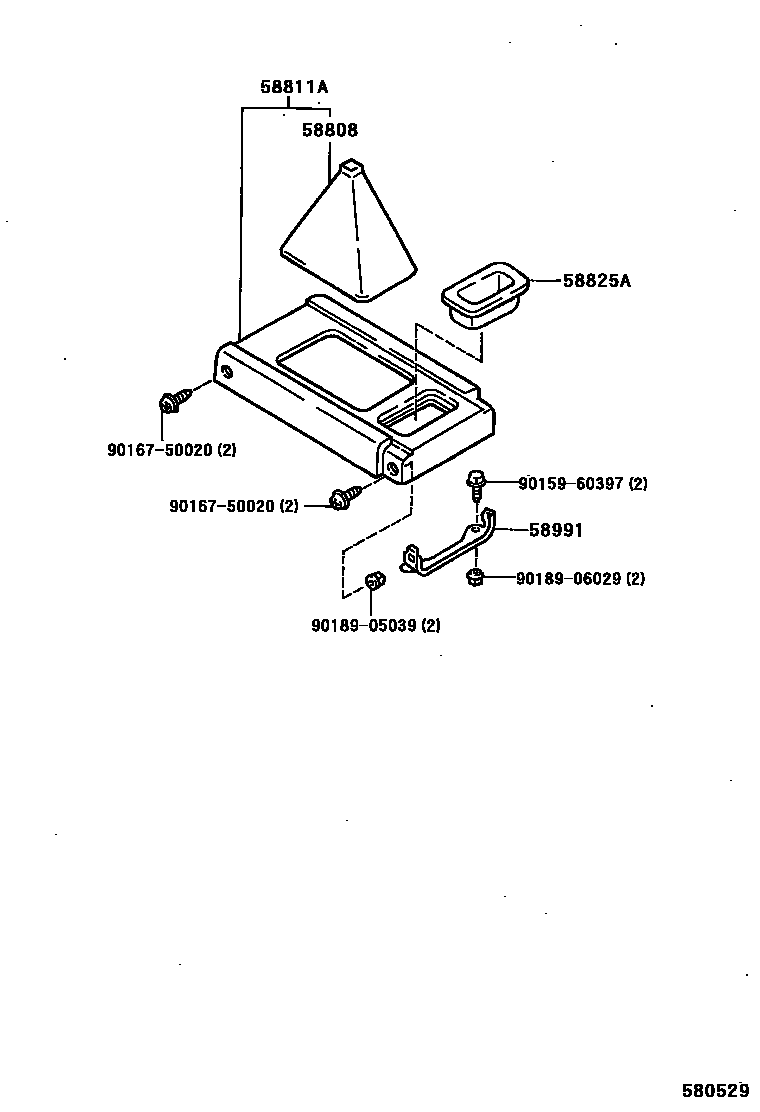

Parts diagram
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-34010-B0i199208-199304
GRAY,TRIM1#
main58808-34010-E0i199208-199304
OAK,TRIM4#
main58808-34010-J0i199208-199304
BLUE,TRIM8#
main58808-34011-B0i199304-199503
GRAY,TRIM1#
main58808-34011-E0i199304-199503
OAK,TRIM4#
main58808-34011-J0i199304-199503
BLUE,TRIM8#
main58808-34012-B0i199503-199608
GRAY,TRIM1#
main58808-34012-B1i199608
MD.MOON MIST,TRIM1#
main58808-34012-E0i199503
OAK,TRIM4#
main58808-34012-J0i199503-199608
BLUE,TRIM8#
main58808-34020-B0i199208-199304
GRAY,TRIM1#
main58808-34020-E0i199208-199304
OAK,TRIM4#
main58808-34020-J0i199208-199304
BLUE,TRIM8#
main58808-34021-B0i199304-199503
GRAY,TRIM1#
main58808-34021-E0i199304-199503
OAK,TRIM4#
main58808-34021-J0i199304-199503
BLUE,TRIM8#
main58808-34022-B0i199503-199608
GRAY,TRIM1#
main58808-34022-B1i199608
MD.MOON MIST,TRIM1#
main58808-34022-E0i199503
OAK,TRIM4#
main58808-34022-J0i199503-199608
BLUE,TRIM8#
58811ABOX, CONSOLE, FRONT
main58802-34010-B0i199208-199304
GRAY,TRIM1#
main58802-34010-E0i199208-199304
OAK,TRIM4#
main58802-34010-J0i199208-199304
BLUE,TRIM8#
main58802-34011-B0i199304-199503
GRAY,TRIM1#
main58802-34011-E0i199304-199503
OAK,TRIM4#
main58802-34011-J0i199304-199503
BLUE,TRIM8#
main58802-34012-B0i199503-199608
GRAY,TRIM1#
main58802-34012-B1i199608
MD.MOON MIST,TRIM1#
main58802-34012-E0i199503
OAK,TRIM4#
main58802-34012-J0i199503-199608
BLUE,TRIM8#
main58802-34020-B0i199208-199304
GRAY,TRIM1#
main58802-34020-E0i199208-199304
OAK,TRIM4#
main58802-34020-J0i199208-199304
BLUE,TRIM8#
main58802-34021-B0i199304-199503
GRAY,TRIM1#
main58802-34021-E0i199304-199503
OAK,TRIM4#
main58802-34021-J0i199304-199503
BLUE,TRIM8#
main58802-34022-B0i199503-199608
GRAY,TRIM1#
main58802-34022-B1i199608
MD.MOON MIST,TRIM1#
main58802-34022-E0i199503
OAK,TRIM4#
main58802-34022-J0i199503-199608
BLUE,TRIM8#
58825APOCKET, CONSOLE BOX
main58825-89111-B0i199208-199608
MEDIUM GRAY,TRIM1#
main58825-89111-B1i199608
MD.MOON MIST,TRIM1#
main58825-89111-E2i199208
OAK,TRIM4#
main58825-89111-J0i199208-199608
MEDIUM BLUE,TRIM8#
58991BRACKET, CONSOLE BOX MOUNTING, UPPER
main58991-34010i199208
9015960397
main90159-60397
9016750020
main90167-50020
9018905039
main90189-05039
9018906029
main90189-06029

8 parts on this diagram · 3 diagrams in section
