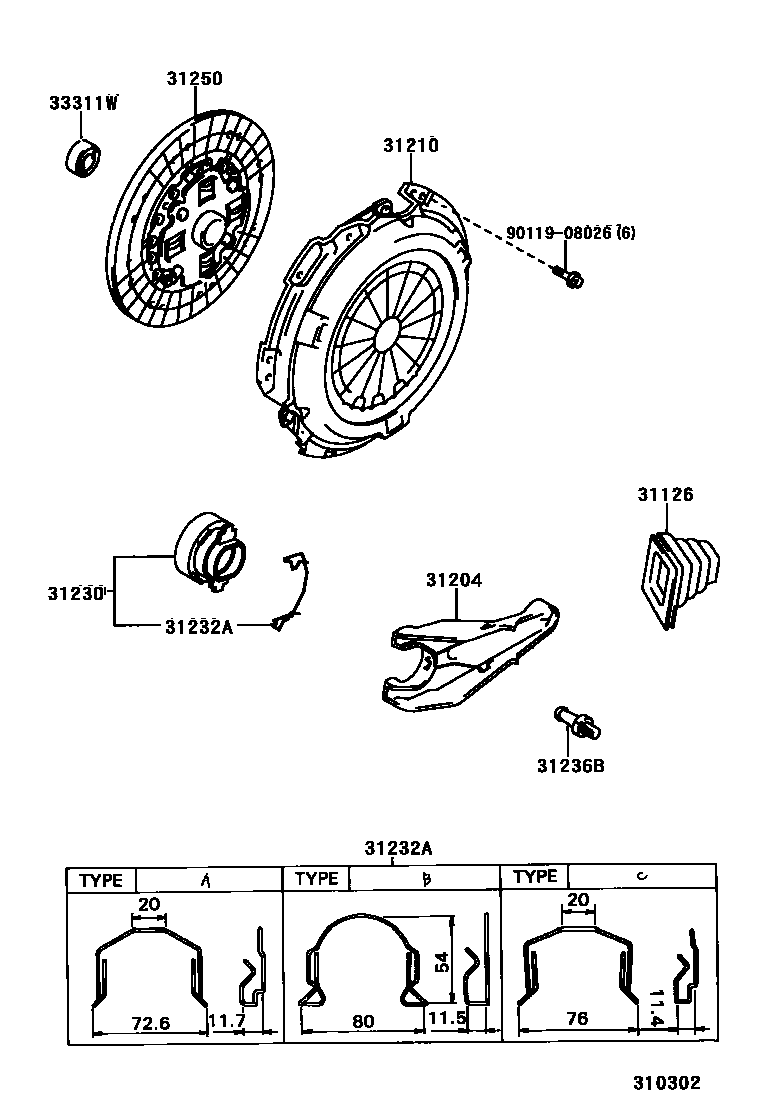

Toyota T100 — CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
31204FORK SUB-ASSY, CLUTCH RELEASE
31210COVER ASSY, CLUTCH
31230BEARING ASSY, CLUTCH RELEASE
31232ACLIP, RELEASE BEARING HUB
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
31250DISC ASSY, CLUTCH
33311WBEARING (FOR INPUT SHAFT)
9011908026
main90119-08026
9 parts on this diagram · 1 diagram in section
CLUTCH & RELEASE FORK for Toyota T100
This section contains 9 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota T100. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
