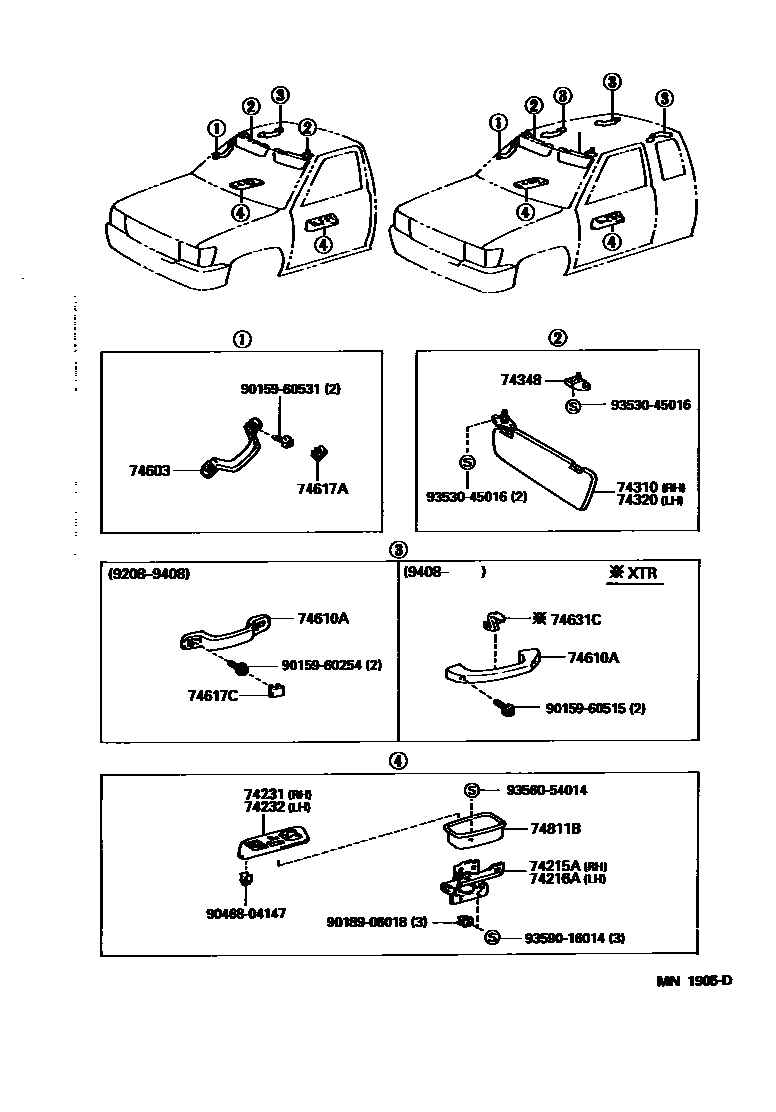

Toyota T100 — ARMREST & VISOR

74215ABASE, DOOR ARMREST RH

main74215-16020i199208

74216ABASE, DOOR ARMREST, LH

main74215-16020i199208

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-34010-B0i199208-199608

W(POWER PACKAGE),GRAY,TRIM1#

main74231-34010-B1i199608-199708

W(POWER PACKAGE),MD.MOON MIST,TRIM1#

main74231-34010-E0i199708

W(POWER PACKAGE),OAK,TRIM4#

main74231-34010-J0i199208-199608

W(POWER PACKAGE),BLUE,TRIM8#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-34010-B0i199208-199608

W(POWER PACKAGE),GRAY,TRIM1#

main74232-34010-B1i199608

W(POWER PACKAGE),MD.MOON MIST,TRIM1#

main74232-34010-E0i199608

W(POWER PACKAGE),OAK,TRIM4#

main74232-34010-J0i199208-199608

W(POWER PACKAGE),BLUE,TRIM8#

74310VISOR ASSY, RH

main74310-34010-B0i199208-199608

GRAY,TRIM1#

main74310-34010-B1i199608-199708

MD.MOON MIST,TRIM1#

main74310-34010-E0i199208-199708

OAK,TRIM4#

main74310-34010-J0i199208-199608

BLUE,TRIM8#

main74310-34020-B0i199208-199308

GRAY,TRIM1#

main74310-34020-E0i199208-199308

OAK,TRIM4#

main74310-34020-J0i199208-199308

BLUE,TRIM8#

main74310-34050-B0i199308-199608

GRAY,TRIM1#

main74310-34050-B2i199608-199708

MD.MOON MIST,TRIM1#

main74310-34050-E0i199308-199708

OAK,TRIM4#

main74310-34050-J0i199308-199608

BLUE,TRIM8#

main74310-34060-B0i199708

MD.MOON MIST,TRIM1#

main74310-34060-E0i199708

OAK,TRIM14

main74310-34070-B0i199708

MD.MOON MIST,TRIM1#

main74310-34070-E0i199708

OAK,TRIM4#

74320VISOR ASSY, LH

main74320-34010-B0i199308-199408

GRAY,TRIM1#

main74320-34010-E0i199208-199308

OAK,TRIM4#

main74320-34010-J0i199208-199308

BLUE,TRIM8#

main74320-34020-B0i199208-199308

GRAY,TRIM1#

main74320-34020-E0i199208-199308

OAK,TRIM4#

main74320-34020-J0i199208-199308

BLUE,TRIM8#

main74320-34030-B0i199208-199408

GRAY,TRIM1#

main74320-34030-E0i199208-199408

OAK,TRIM4#

main74320-34030-J0i199208-199408

BLUE,TRIM8#

main74320-34040-B0i199208-199308

GRAY,TRIM1#

main74320-34040-E0i199208-199308

OAK,TRIM4#

main74320-34040-J0i199208-199308

BLUE,TRIM8#

main74320-34050-B0i199208-199308

GRAY,TRIM1#

main74320-34050-E0i199208-199308

OAK,TRIM4#

main74320-34050-J0i199208-199308

BLUE,TRIM8#

main74320-34070-B0i199308-199408

GRAY,TRIM1#

main74320-34070-E0i199308-199408

OAK,TRIM4#

main74320-34070-J0i199308-199408

BLUE,TRIM8#

main74320-34080-B0i199308-199408

GRAY,TRIM1#

main74320-34080-E0i199308-199408

OAK,TRIM4#

main74320-34080-J0i199308-199408

BLUE,TRIM8#

main74320-34090-B0i199308-199408

GRAY,TRIM1#

main74320-34090-E0i199308-199408

OAK,TRIM4#

main74320-34090-J0i199308-199408

BLUE,TRIM8#

main74320-34100-B0i199308-199408

GRAY,TRIM1#

main74320-34100-E0i199308-199408

OAK,TRIM4#

main74320-34100-J0i199308-199408

BLUE,TRIM4#

main74320-34110-B0i199308-199408

GRAY,TRIM1#

main74320-34110-E0i199308-199408

OAK,TRIM4#

main74320-34110-J0i199308-199408

BLUE,TRIM8#

main74320-34120-B0i199408-199608

GRAY,TRIM1#

main74320-34120-E0i199408-199608

OAK,TRIM4#

main74320-34120-J0i199408-199608

BLUE,TRIM8#

main74320-34121-B1i199702-199708

MOON MIST,TRIM1#

main74320-34121-E0i199608-199702

OAK,TRIM4#

main74320-34130-B0i199408-199608

GRAY,TRIM1#

main74320-34130-E0i199408-199608

OAK,TRIM4#

main74320-34130-J0i199408-199608

BLUE,TRIM8#

main74320-34131-B1i199608-199702

MOON MIST,TRIM1#

main74320-34131-E0i199702-199708

OAK,TRIM4#

main74320-34140-B0i199408-199608

GRAY,TRIM1#

main74320-34140-E0i199408-199608

OAK,TRIM4#

main74320-34140-J0i199408-199608

BLUE,TRIM8#

main74320-34141-B1i199608-199702

MOON MIST,TRIM1#

main74320-34141-E0i199608-199702

OAK,TRIM4#

main74320-34150-B0i199408-199608

GRAY,TRIM1#

main74320-34150-E0i199408-199608

OAK,TRIM4#

main74320-34150-J0i199408-199608

BLUE,TRIM8#

main74320-34151-B1i199702-199708

MOON MIST,TRIM1#

main74320-34151-E0i199608-199702

OAK,TRIM4#

main74320-34160-B0i199702-199708

MOON MIST,TRIM1#

main74320-34160-E0i199702-199708

OAK,TRIM4#

main74320-34170-B0i199702-199708

MOON MIST,TRIM1#

main74320-34170-E0i199702-199708

OAK,TRIM4#

main74320-34180-B0i199702-199708

MOON MIST,TRIM1#

main74320-34180-E0i199702-199708

OAK,TRIM4#

main74320-34190-B0i199702-199708

MOON MIST,TRIM1#

main74320-34190-E0i199702-199708

OAK,TRIM4#

main74320-34200-B0i199708

MD.MOON MIST,TRIM1#

main74320-34200-E0i199708

OAK,TRIM4#

main74320-34210-B0i199708

MD.MOON MIST,TRIM1#

main74320-34210-E0i199708

OAK,TRIM4#

main74320-34220-B0i199708

MD.MOON MIST,TRIM1#

main74320-34220-E0i199708

OAK,TRIM4#

main74320-34230-B0i199708

MD.MOON MIST,TRIM1#

main74320-34230-E0i199708

OAK,TRIM4#

74348HOLDER, VISOR

main74348-12020-B1i199308-199608

GRAY,TRIM1#

main74348-12020-B3i199608

MD.MOON MIST,TRIM1#

main74348-12020-E0×2i199208-199308

OAK,TRIM4#

main74348-12020-J0i199308-199608

BLUE,TRIM8#

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-34010-B0×2i199208-199608

GRAY,TRIM1#

main74610-34010-B2×2i199608

MD.MOON MIST,TRIM1#

main74610-34010-E0×2i199208

OAK,TRIM4#

main74610-34010-J0×2i199208-199608

BLUE,TRIM8#

74610AGRIP SUB-ASSY, ASSIST

main74610-16010-B2i199208-199408

MEDIUM GRAY,TRIM1#

main74610-16010-E3i199208-199408

OAK,TRIM4#

main74610-16010-J3i199208-199408

MEDIUM BLUE,TRIM8#

main74611-89101-B0i199408-199608

GRAY,TRIM1#

main74611-89101-B1×3i199608

MD.MOON MIST,TRIM1#

main74611-89101-E0×3i199410

OAK,TRIM4#

main74611-89101-J0i199408-199608

BLUE,TRIM8#

74617APLUG, ASSIST GRIP

main74617-16010-B3×4i199208-199608

MEDIUM GRAY,TRIM1#

main74617-16010-E7×4i199208

OAK,TRIM4#

main74617-16010-J3×4i199208-199608

BLUE,TRIM8#

main74617-16010-P2×4i199608

MD.MOON MIST,TRIM1#

74617CPLUG, ASSIST GRIP

main74617-16010-B3×2i199208-199408

MEDIUM GRAY,TRIM1#

main74617-16010-E7×2i199208-199408

OAK,TRIM4#

main74617-16010-J3×2i199208-199408

BLUE,TRIM8#

74631CHOOK, COAT

main74631-10010-13×2i199410-199508

GRAY,TRIM1#

main74631-10010-E2×2i199410-199508

OAK,TRIM4#

main74631-10010-J0×2i199410-199508

BLUE,TRIM8#

74811BHANDLE, DOOR PULL

main74811-16020-B0×2i199208-199608

GRAY,TRIM1#

main74811-16020-B1×2i199608

MD.MOON MIST,TRIM1#

main74811-16020-E0×2i199208

OAK,TRIM4#

main74811-16020-J0×2i199208-199608

BLUE,TRIM8#

9015960254

main90159-60254

9015960515

main90159-60515

9015960531

main90159-60531

9018906018

main90189-06018

9046804147

main90468-04147

9353045016

main93530-45016

9356054014

main93560-54014

9359016014

main93590-16014

21 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota T100

This section contains 21 genuine Toyota parts for the ARMREST & VISOR system of the Toyota T100. Key components include: BASE, DOOR ARMREST RH, BASE, DOOR ARMREST, LH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, VISOR ASSY, RH.
