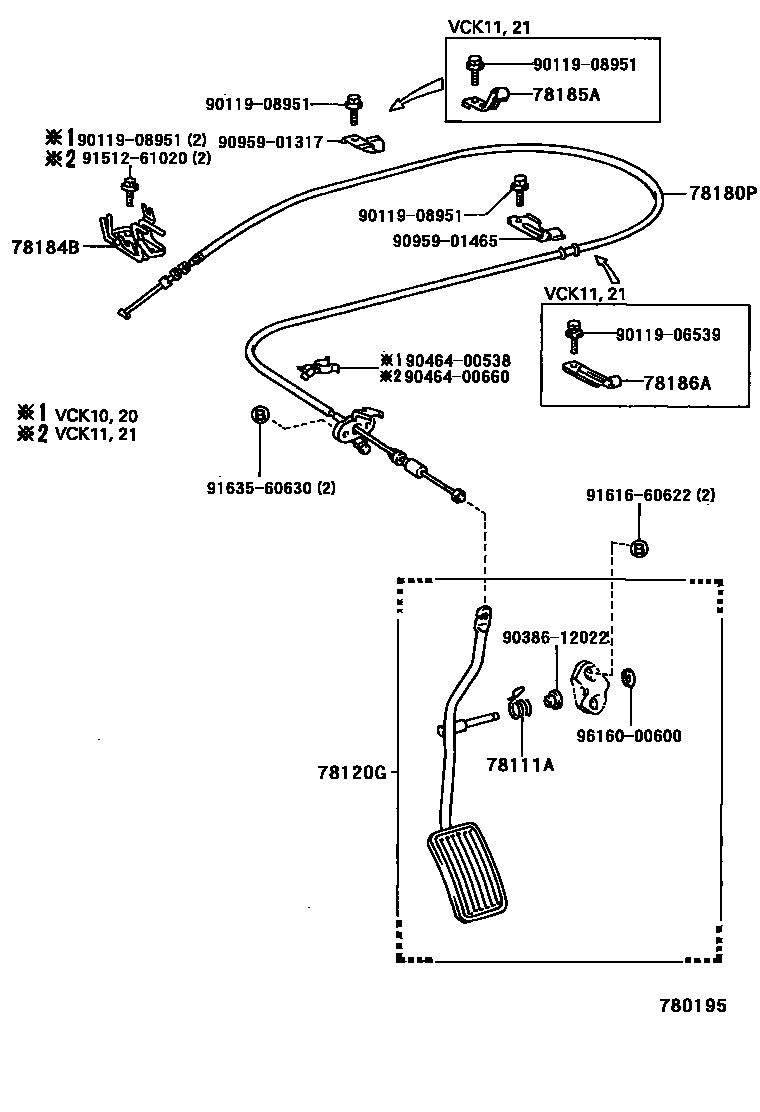

Toyota T100 — ACCELERATOR LINK

0001 1 0003 1 0004 1W(CRUISE CONTROL SYSTEM)

78111ASPRING (FOR ACCELERATOR PEDAL)

main90959-03012iVCK11,21..MTM;RCK10,VCK10,20199208

main90959-03054iRCK10..ATM199408-199508

W(*CRC)

78120GROD ASSY, ACCELERATOR PEDAL

main78120-34010iVCK11,21..MTM;RCK10,VCK10,20199208

main78120-34020iRCK10..ATM199408-199508

W(*CRC)

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-34010iVCK10,20199208-199408

main78180-34020iRCK10199310

main78180-34030iRCK10199310-199508

W(*CRC)

main78180-34050iVCK11,21199408

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-35060iVCK10,20199208-199408

main78184-35080iVCK11,21199408

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78185-34030iRCK10199310-199508

main78185-34040iVCK11,21199408-199608

main78185-35050iVCK11,21199608

78186ACLAMP, ACCELERATOR CONTROL CABLE, NO.3

main78186-34020iVCK11,21199408

9011906539

main90119-06539

9011908951

main90119-08951

9038612022

main90386-12022

9046400538

main90464-00538

9046400660

main90464-00660

9095901317

main90959-01317

9095901465

main90959-01465

9151261020

main91512-61020

9161660622

main91616-60622

9163560630

main91635-60630

9616000600

main96160-00600

17 parts on this diagram · 3 diagrams in section
