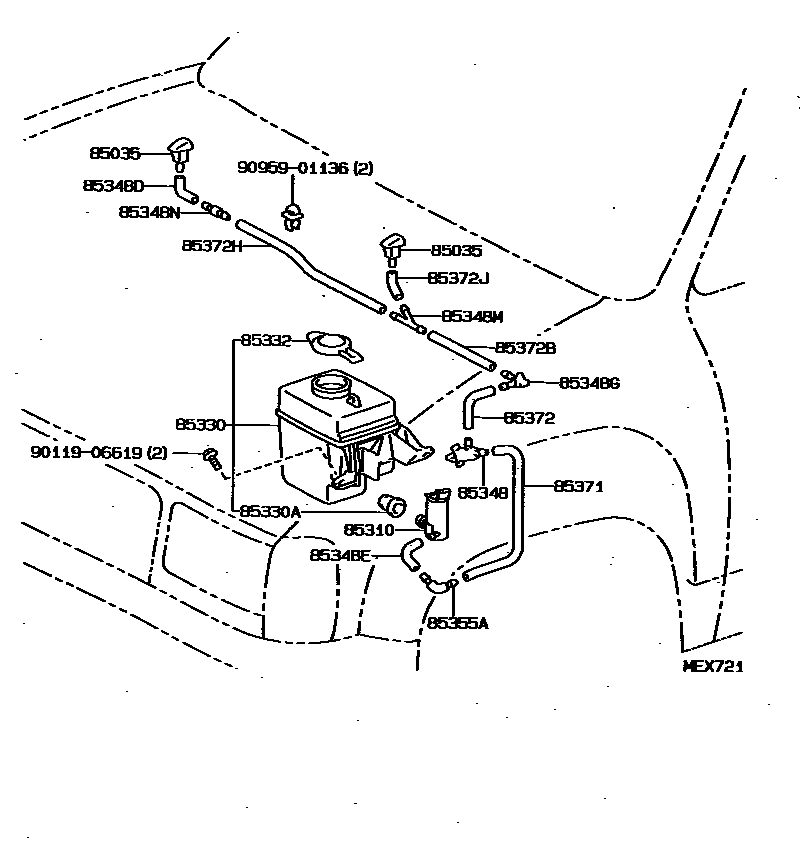

Toyota T100 — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12060×2i199309-199608

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20210i199309-199608

85330JAR ASSY, WINDSHIELD WASHER

main85315-34040i199309-199608

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i199309-199608

85332CAP, WINDSHIELD WASHER JAR

main85316-34040i199310-199608

main85332-91602i199309-199310

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85377-34010i199309-199608

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481i199309-199608

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-14481i199309-199608

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85377-32220i199309-199608

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85348-14390i199309-199608

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85349-89122i199309-199608

85355AJOINT, WINDSHIELD WASHER ELBOW

main85355-20200i199309-199608

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013i199309-199608

L=1000

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i199309-199404

L=1450

main90099-33299i199404-199608

L=1000

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i199309-199608

L=1800

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i199309-199608

L=1800

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i199310-199404

L=1450

main90099-33299i199404-199608

L=1000

9011906619

main90119-06619

9095901136

main90959-01136

19 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota T100

This section contains 19 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota T100. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
