Toyota T100 — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

82600FFUSE, FUSE BLOCK

main90982-09002×4iRCK10199309-199608

10A

main90982-09003×3iRCK10199309-199608

15A

main90982-09004iRCK10199309-199608

20A,YELLOW

main90982-09005×2iRCK10199309-199608

7.5A

main90982-10001iRCK10..SR5199309-199608

30A,PINK

82600MFUSE, MEDIUM CURRENT

main90982-10001iRCK10199309-199608

30A,PINK

main90982-10002×2iRCK10199309-199608

40A,GREEN

82616PULLER, FUSE

main82616-89102iRCK10199309-199608

82661COVER, RELAY BLOCK, NO.1

main82661-34060iRCK10199309-199608

UPPER

main82663-34010iRCK10199309-199408

LOWER

main82663-34011iRCK10199408-199608

LOWER

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040iRCK10199309-199608

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30090iRCK10199309-199608

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iRCK10199309-199608

sub84210-52050

85910CRELAY ASSY (FOR HEATER BLOWER MOTOR)

main90987-04002iRCK10199309-199608

85916PRELAY, HEADLAMP

main90987-02006iRCK10199309-199608

89620IGNITER ASSY

main89621-34010iRCK10199309-199608

89629BRACKET, IGNITER ASSY

main89629-30160iRCK10199309-199608

9011906033

main90119-06033

9043018007

main90430-18007

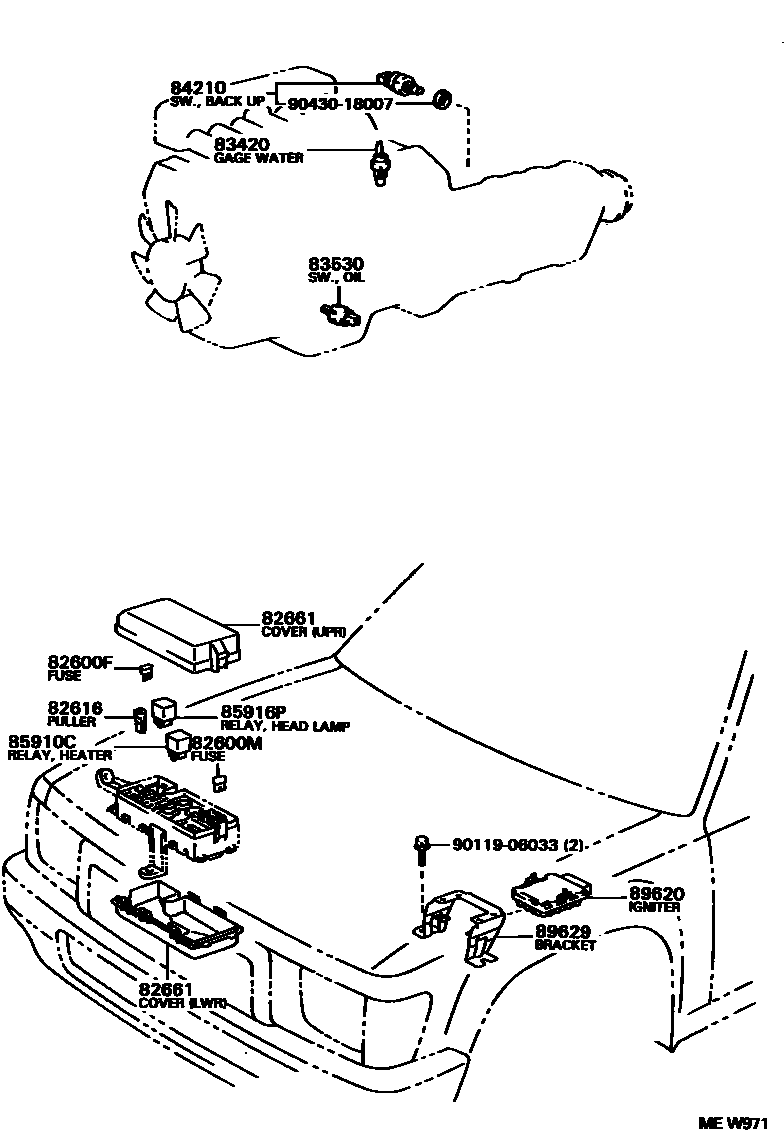

13 parts on this diagram · 4 diagrams in section
