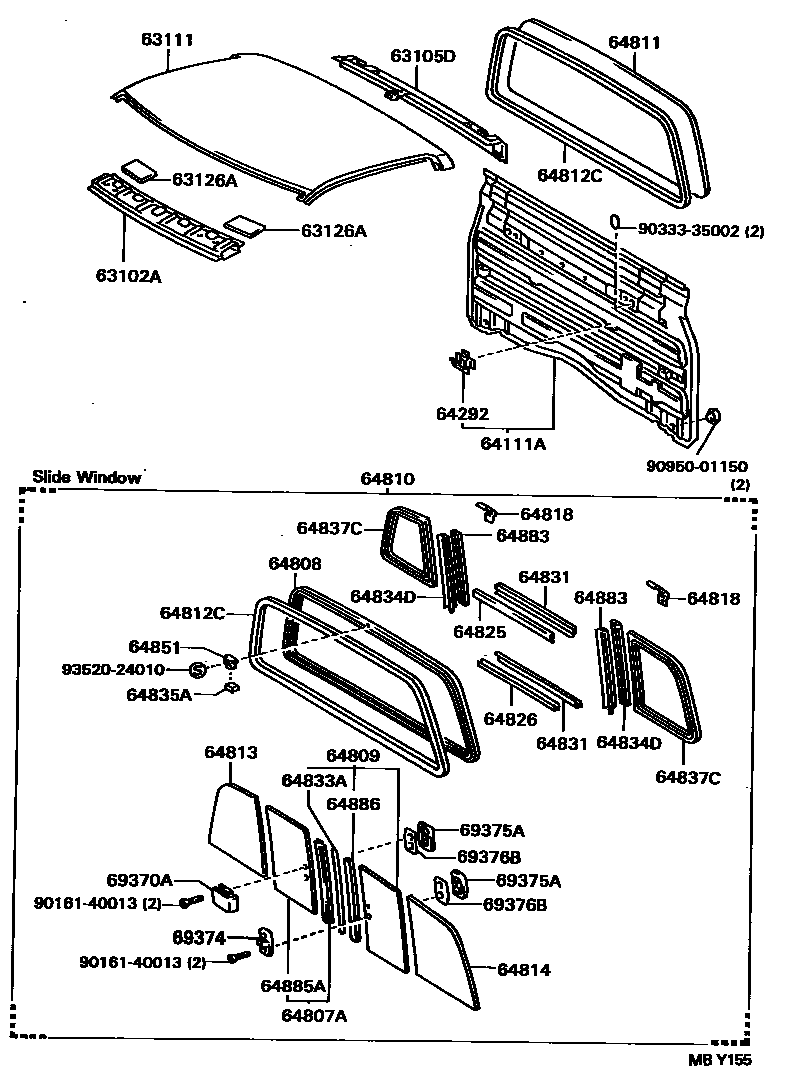

Toyota T100 — ROOF PANEL & BACK PANEL
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63105DFRAME SUB-ASSY, BACK WINDOW, UPPER
63111PANEL, ROOF
63126ADAMPER, WINDSHIELD HEADER PANEL
64292CLAMP, JACK HANDLE
64807AGLASS SUB-ASSY, BACK WINDOW SLIDE, RH
*TT,T=3.5,BLUE
*TT,T=3.5,GREEN
64808CHANNEL SUB-ASSY, BACK WINDOW SLIDE GLASS
64809GLASS SUB-ASSY, BACK WINDOW SLIDE, LH
*TT,T=3.5,BLUE
*TT,T=3.5,GREEN
64810WINDOW ASSY, BACK
*TT,T=3.5,BLUE
*TT,T=3.5,BLUE
*TT,T=3.5,GREEN
64811GLASS, BACK WINDOW
*TT,T=3.5,GREEN
64812CWEATHERSTRIP, BACK WINDOW GLASS
64813GLASS, BACK WINDOW CORNER, RH
*TT,T=3.1,BLUE
*TT,T=3.5,GREEN
64814GLASS, BACK WINDOW CORNER, LH
*TT,T=3.1,BLUE
*TT,T=3.5,GREEN
64818SPACER, BACK WINDOW GLASS
64825RUN, BACK WINDOW CHANNEL, UPPER
64826RUN, BACK WINDOW CHANNEL, LOWER
64831WEATHERSTRIP, BACK WINDOW GLASS
64833AWEATHERSTRIP, BACK WINDOW CENTER CHANNEL
64834DWEATHERSTRIP, BACK WINDOW SLIDE GLASS
64835AWEATHERSTRIP, BACK WINDOW GLASS, CENTER
64837CWEATHERSTRIP, BACK WINDOW CORNER GLASS
64851STOP, BACK WINDOW SLIDE GLASS
64883FRAME, BACK WINDOW
64885ACHANNEL, BACK WINDOW GLASS, RH
64886CHANNEL, BACK WINDOW GLASS, LH
69370ALOCK ASSY, BACK WINDOW
69374CATCH, BACK WINDOW LOCK
69375ARETAINER, BACK WINDOW LOCK
69376BPACKING, BACK WINDOW LOCK
9016140013
main90161-40013
9033335002
main90333-35002
9095001150
main90950-01150
9352024010
main93520-24010
34 parts on this diagram · 1 diagram in section
