Toyota T100 — MOUNTING

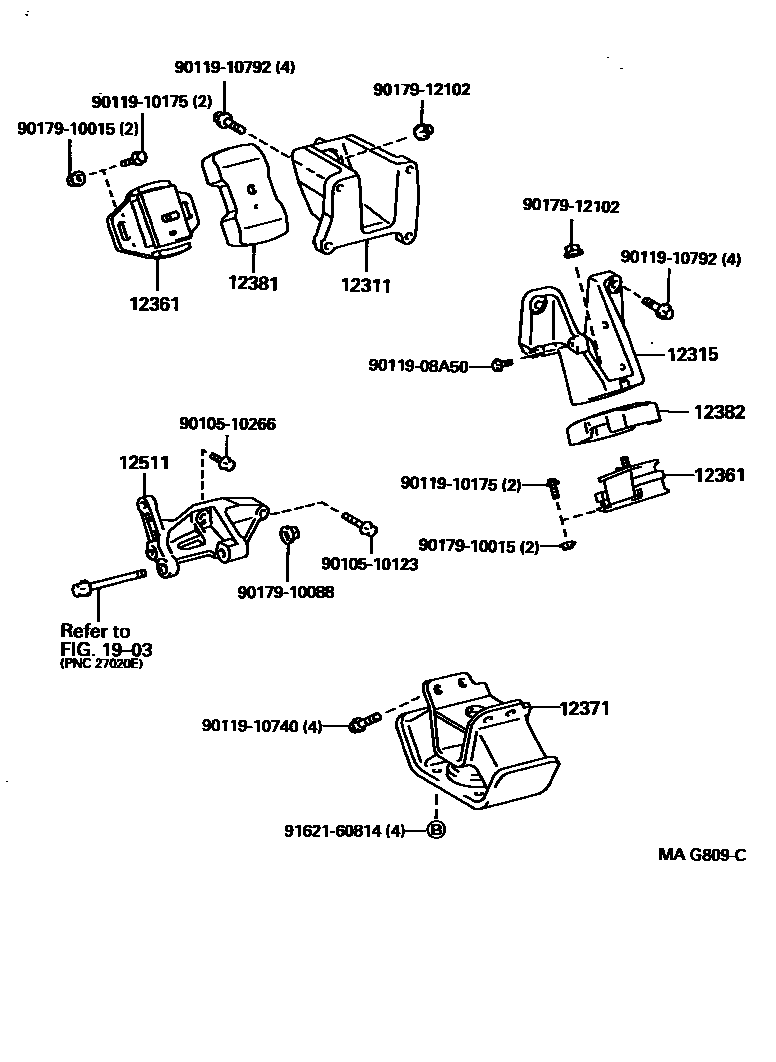

Parts diagram

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-75020i199309-199608

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-75020i199309-199608

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-75010×2i199309-199608

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-65110i199309-199608

12381STABILIZER, ENGINE MOUNTING

main12381-75020i199309-199608

12382STABILIZER, ENGINE MOUNTING, LH

main12382-75010i199309-199608

12511BRACKET, ALTERNATOR, NO.1

main12511-75030i199309-199608

1903ALTERNATOR

→ Go to FIG 19-03

9010510123

main90105-10123

9010510266

main90105-10266

9011908A50

main90119-08A50

9011910175

main90119-10175

9011910740

main90119-10740

9011910792

main90119-10792

9017910015

main90179-10015

9017910088

main90179-10088

9017912102

main90179-12102

9162160814

main91621-60814

18 parts on this diagram · 1 diagram in section

MOUNTING for Toyota T100

This section contains 18 genuine Toyota parts for the MOUNTING system of the Toyota T100. Key components include: BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH, INSULATOR, ENGINE MOUNTING, FRONT, INSULATOR, ENGINE MOUNTING, REAR NO.1, STABILIZER, ENGINE MOUNTING.
