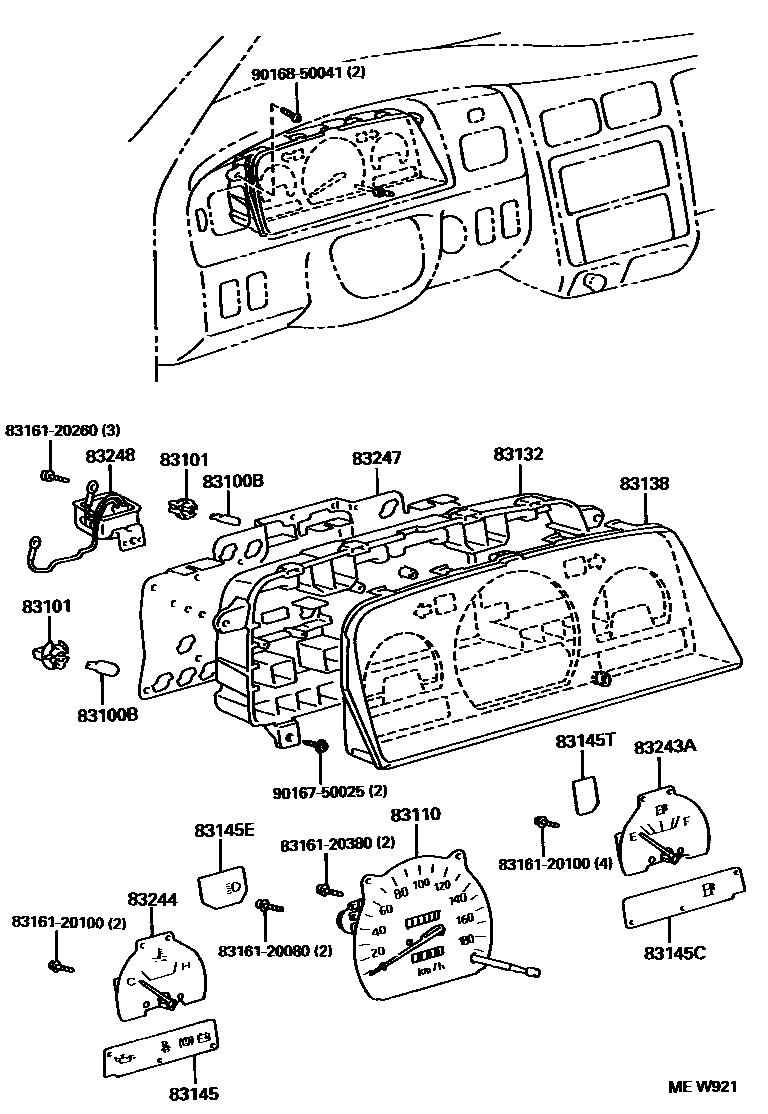

Toyota T100 — METER

83100BBULB, COMBINATION METER, NO.1

main83109-37020i199309-199608

12V 1.7W

main90981-11018×7i199309-199608

12V 1.2W W/O SOCKET; 12V 1.2W W/O SOCKET,W(TACHOMETER)

main99132-12034×6i199309-199608

12V 3.4W; 12V 3.4W,W(TACHOMETER)

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040×7i199309-199408

12V 1.4W BULB; W(TACHOMETER),12V 1.4W BULB

main83101-20040×6i199309-199408

12V 3.4W BULB; W(TACHOMETER),12V 3.4W BULB

83110SPEEDOMETER ASSY

main83110-34080i199309-199608

main83110-34090i199309-199408

W(TACHOMETER)

main83110-34091i199408-199608

W(TACHOMETER)

83132CASE, COMBINATION METER

main83132-89502i199309-199608

W(TACHOMETER)

main83132-89504i199309-199608

83138GLASS, SPEEDOMETER

main83138-89502i199309-199608

W(TACHOMETER)

main83138-89522i199309-199608

83145LENS, METER, NO.1

main83145-34102i199309-199608

main83145-89528i199309-199608

W(TACHOMETER)

83145CLENS, METER, NO.4

main83145-34200i199309-199608

83145ELENS, METER, NO.6

main83145-89502i199309-199608

83145TLENS, METER, NO.8

main83145-89504i199309-199608

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-34020i199408-199608

W(TACHOMETER)

main83243-35040i199309-199608

main83243-35100i199309-199408

W(TACHOMETER)

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-34102i199309-199608

main83244-34140i199408-199608

W(TACHOMETER)

main83244-35120i199309-199408

W(TACHOMETER)

83247PLATE, METER CIRCUIT

main83247-34102i199309-199608

main83247-34106i199309-199408

W(TACHOMETER)

main83247-34200i199408-199608

W(TACHOMETER)

83248CHIME, SPEED WARNING

main86640-89103i199309-199608

main86640-89104i199309-199608

W(TACHOMETER)

8316120080CASE, COMBINATION METER MIRROR, NO.1

main83161-20080

8316120100CASE, COMBINATION METER MIRROR, NO.1

main83161-20100

8316120260CASE, COMBINATION METER MIRROR, NO.1

main83161-20260

8316120380CASE, COMBINATION METER MIRROR, NO.1

main83161-20380

9016750025

main90167-50025

9016850041

main90168-50041

19 parts on this diagram · 3 diagrams in section

METER for Toyota T100

This section contains 34 genuine Toyota parts for the METER system of the Toyota T100. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, CASE, COMBINATION METER, GLASS, SPEEDOMETER.
