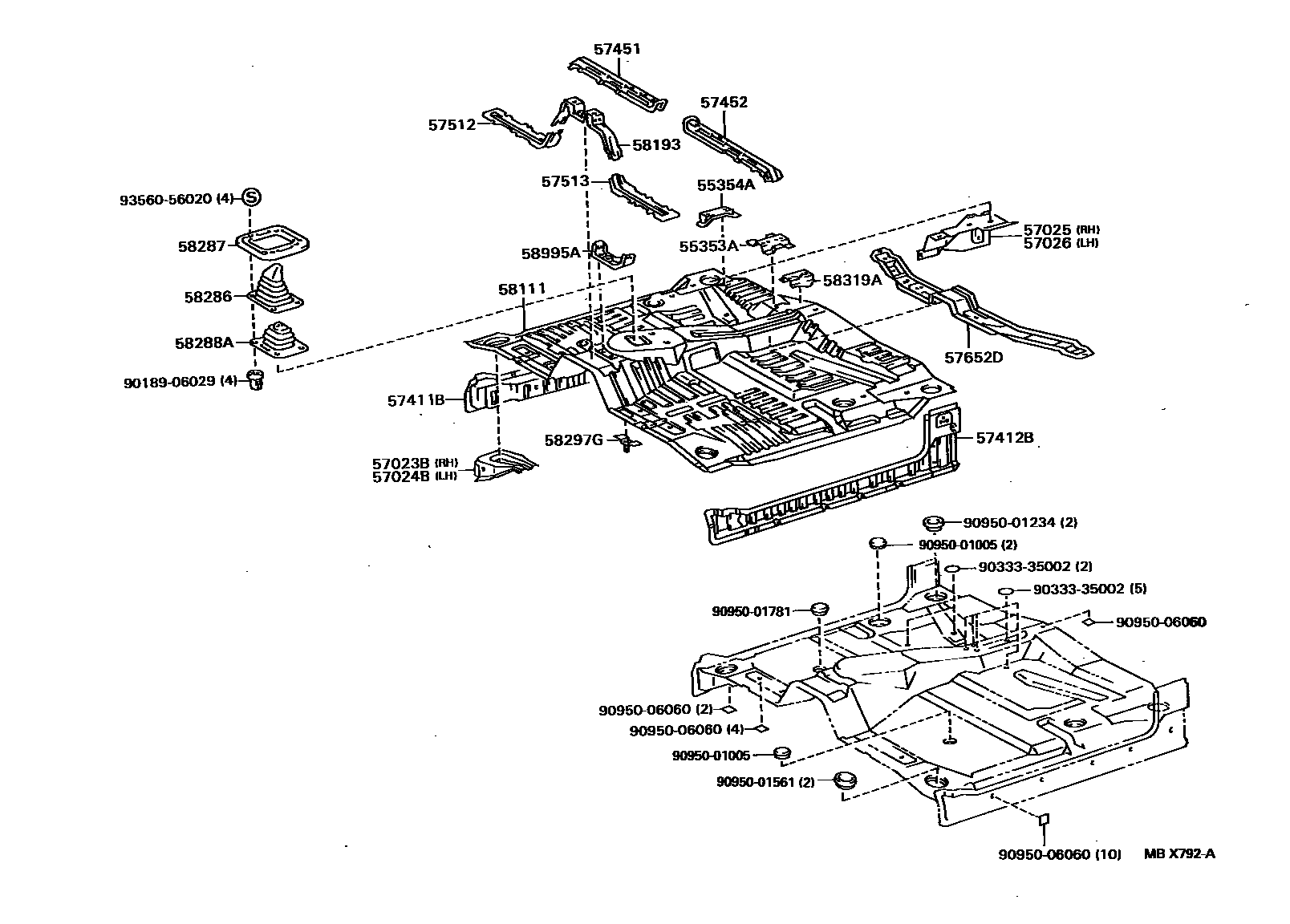

Toyota T100 — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
55353ABRACKET, SPEAKER MOUNTING, NO.1
55354ABRACKET, SPEAKER MOUNTING, NO.2
57023BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH
57024BBRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH
57025BRACKET SUB-ASSY, BODY MOUNTING, NO.3 RH
57026BRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH
57411BMEMBER, FLOOR SIDE, INNER RH
57412BMEMBER, FLOOR SIDE, INNER LH
57451MEMBER, FRONT FLOOR CROSS
57452MEMBER, FRONT FLOOR CROSS, LH
57512REINFORCEMENT, FRONT FLOOR, RH
57513REINFORCEMENT, FRONT FLOOR, LH
57652DMEMBER, REAR FLOOR CROSS, NO.1
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58286BOOT, SHIFT & SELECT LEVER, NO.1
58287RETAINER, SHIFT LEVER BOOT
58288ASEAL, SHIFT LEVER BOOT
58297GRETAINER, FLOOR CLAMP
58319APLATE, REAR FLOOR PANEL, FRONT
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
9018906029
main90189-06029
9033335002
main90333-35002
9095001005
main90950-01005
9095001234
main90950-01234
9095001561
main90950-01561
9095001781
main90950-01781
9095006060
main90950-06060
9356056020
main93560-56020
29 parts on this diagram · 1 diagram in section
