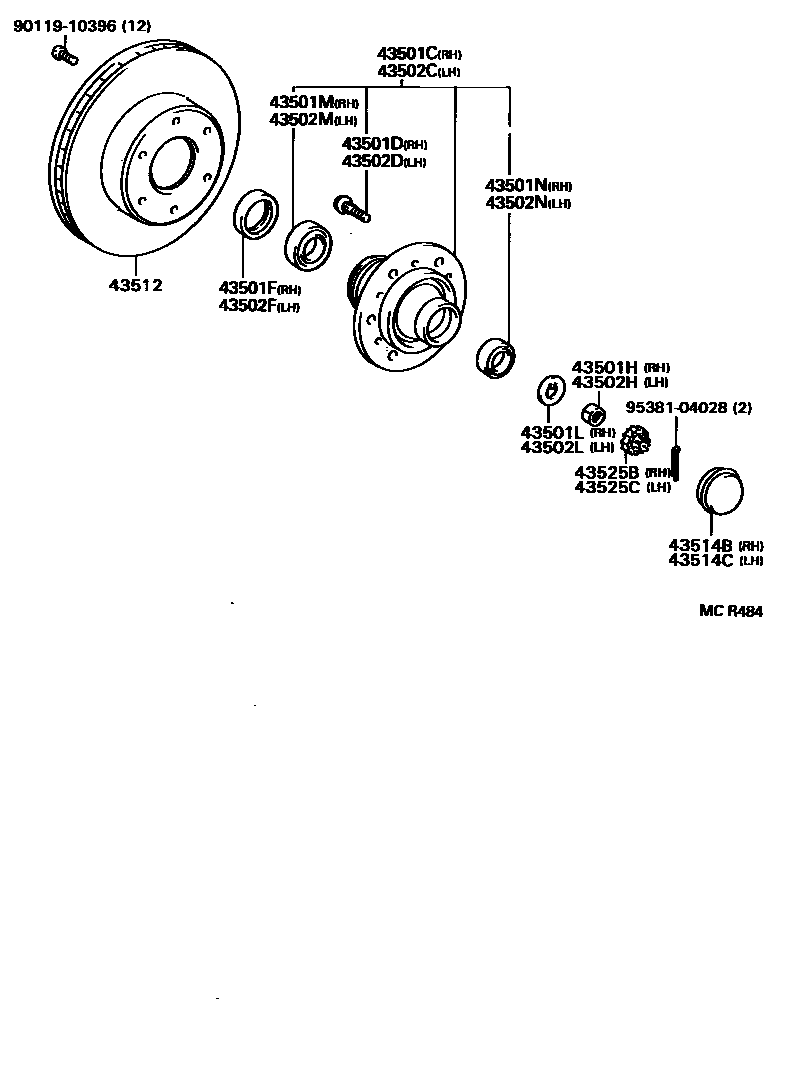

Toyota T100 — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-39085i199309-199608

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×6i199309-199608

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-50005i199309-199608

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90170-19185i199309-199608

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-20007i199309-199608

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90080-36049i199309-199608

43501NBEARING (FOR FRONT AXLE HUB OUTER RH)

main90080-36052i199309-199608

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-39085i199309-199608

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×6i199309-199608

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-50005i199309-199608

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90170-19185i199309-199608

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-20007i199309-199608

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90080-36049i199309-199608

43502NBEARING (FOR FRONT AXLE HUB OUTER LH)

main90080-36052i199309-199608

43512DISC, FRONT

main43512-34040×2i199309-199608

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-34010i199309-199608

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-34010i199309-199608

43525BCAP, FRONT WHEEL ADJUSTING LOCK, RH

main43525-22010i199309-199608

43525CCAP, FRONT WHEEL ADJUSTING LOCK, LH

main43525-22010i199309-199608

9011910396

main90119-10396

9538104028

main95381-04028

21 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota T100

This section contains 21 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota T100. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), SEAL, OIL (FOR FRONT AXLE HUB RH), NUT (FOR FRONT AXLE SHAFT RH), WASHER, CLAW (FOR FRONT AXLE HUB RH).
