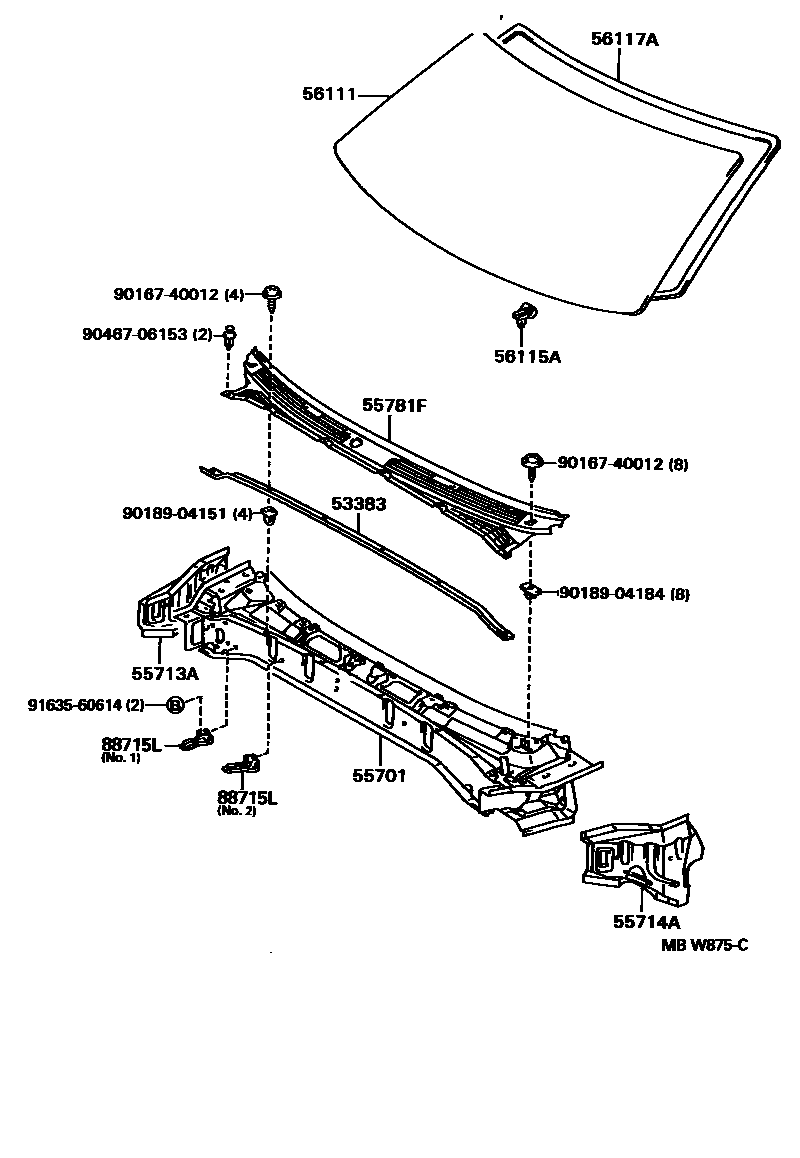

Toyota T100 — COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-34010i199309-199608

55701PANEL SUB-ASSY, COWL

main55700-34040i199309-199408

main55700-34080i199408-199608

55713APANEL, COWL TOP SIDE, RH

main55713-34011i199309-199608

55714APANEL, COWL TOP SIDE, LH

main55714-34011i199309-199608

55781FLOUVER, COWL TOP VENTILATOR

main55708-34020i199309-199608

56111GLASS, WINDSHIELD

main56111-0W050i199309-199608

*TL,T=5.3,GREEN

main56111-0W060i199309-199608

*TL,T=5.3,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-34010×2i199309-199608

56117ADAM, WINDOW GLASS ADHESIVE

main56117-34010i199309-199608

88715LBRACKET, WIRING HARNESS CLAMP

main82715-34450i199408-199608

NO.1

main82715-34460i199408-199608

NO.2

9016740012

main90167-40012

9018904151

main90189-04151

9018904184

main90189-04184

9046706153

main90467-06153

9163560614

main91635-60614

14 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota T100

This section contains 14 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota T100. Key components include: SEAL, HOOD TO COWL TOP, PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, RH, PANEL, COWL TOP SIDE, LH, LOUVER, COWL TOP VENTILATOR.
