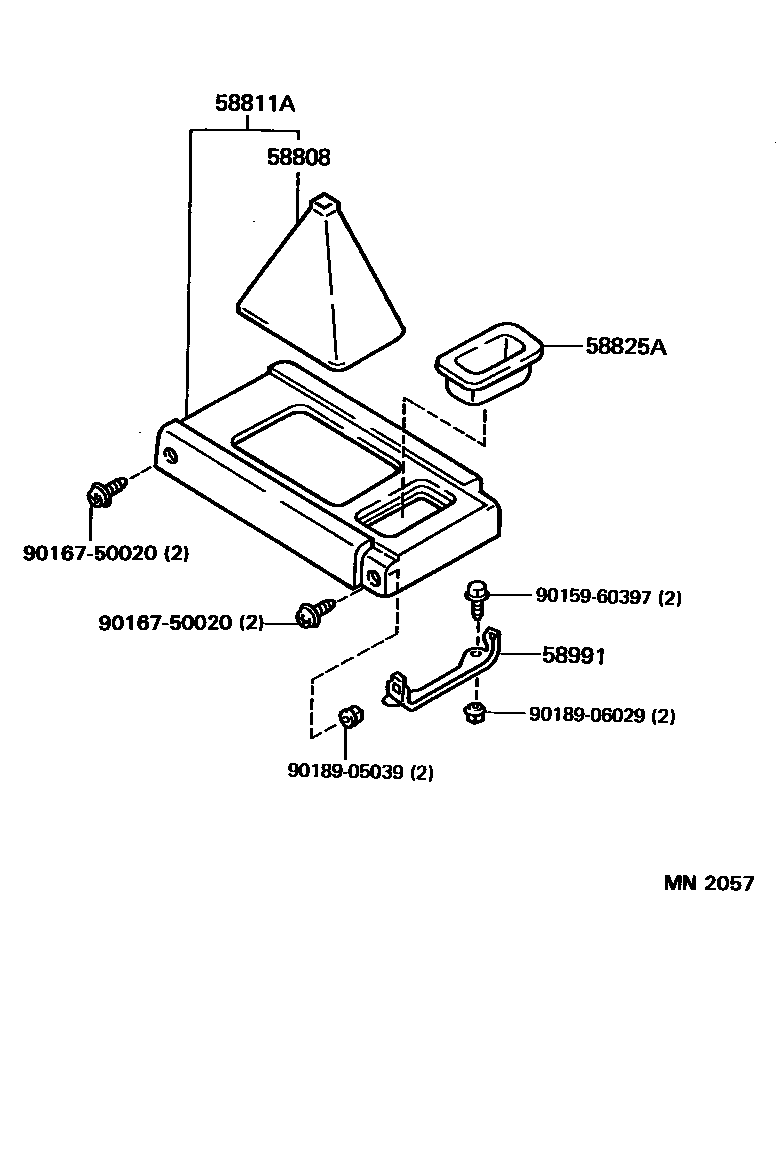

Toyota T100 — CONSOLE BOX & BRACKET

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-34021-B0iRCK10..SR5199309-199503

GRAY,TRIM1#

main58808-34021-E0iRCK10..SR5199309-199503

OAK,TRIM4#

main58808-34022-B0iRCK10..SR5199503-199608

GRAY,TRIM1#

main58808-34022-E0iRCK10..SR5199503-199608

OAK,TRIM4#

58811ABOX, CONSOLE, FRONT

main58802-34021-B0iRCK10..SR5199309-199503

GRAY,TRIM1#

main58802-34021-E0iRCK10..SR5199309-199503

OAK,TRIM4#

main58802-34022-B0iRCK10..SR5199503-199608

GRAY,TRIM1#

main58802-34022-E0iRCK10..SR5199503-199608

OAK,TRIM4#

58825APOCKET, CONSOLE BOX

main58825-89111-B0iRCK10..SR5199309-199608

MEDIUM GRAY,TRIM1#

main58825-89111-E2iRCK10..SR5199309-199608

OAK,TRIM4#

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-34010iRCK10..SR5199309-199608

9015960397

main90159-60397

9016750020

main90167-50020

9018905039

main90189-05039

9018906029

main90189-06029

8 parts on this diagram · 1 diagram in section
