Toyota T100 — ARMREST & VISOR

74215ABASE, DOOR ARMREST RH

main74215-16020i199309-199608

74216ABASE, DOOR ARMREST, LH

main74215-16020i199309-199608

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-34010-B0i199309-199608

GRAY,TRIM1#

main74231-34010-E0i199309-199608

OAK,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-34010-B0i199309-199608

GRAY,TRIM1#

main74232-34010-E0i199309-199608

OAK,TRIM4#

74310VISOR ASSY, RH

main74310-34010-B0i199309-199608

GRAY,TRIM1#

main74310-34010-E0i199309-199608

OAK,TRIM4#

74320VISOR ASSY, LH

main74320-34010-B0i199309-199608

GRAY,TRIM1#

main74320-34010-E0i199309-199608

OAK,TRIM4#

74348HOLDER, VISOR

main74348-12020-B1i199309-199608

GRAY,TRIM1#

main74348-12020-E0i199309-199608

OAK,TRIM4#

74610AGRIP SUB-ASSY, ASSIST

main74610-16010-B2i199309-199408

MEDIUM GRAY,TRIM1#

main74610-16010-E3i199309-199408

OAK,TRIM4#

main74611-89101-B0i199408-199608

GRAY,TRIM1#

main74611-89101-E0i199408-199608

OAK,TRIM4#

74617CPLUG, ASSIST GRIP

main74617-16010-B3×2i199309-199408

MEDIUM GRAY,TRIM1#

main74617-16010-E7×2i199309-199408

OAK,TRIM4#

74811BHANDLE, DOOR PULL

main74811-16020-B0×2i199309-199608

GRAY,TRIM1#

main74811-16020-E0×2i199309-199608

OAK,TRIM4#

9015960254

main90159-60254

9015960515

main90159-60515

9018906018

main90189-06018

9046804147

main90468-04147

9353045016

main93530-45016

9356054014

main93560-54014

9359016014

main93590-16014

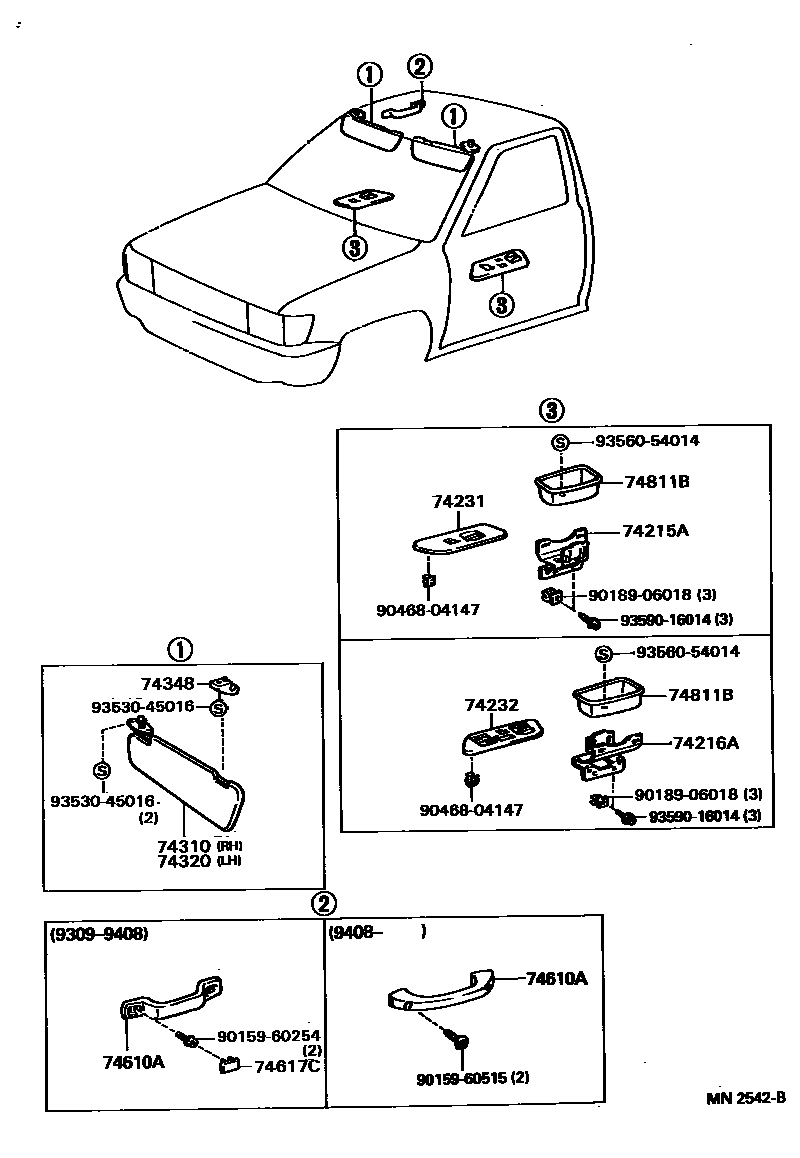

17 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota T100

This section contains 17 genuine Toyota parts for the ARMREST & VISOR system of the Toyota T100. Key components include: BASE, DOOR ARMREST RH, BASE, DOOR ARMREST, LH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, VISOR ASSY, RH.
