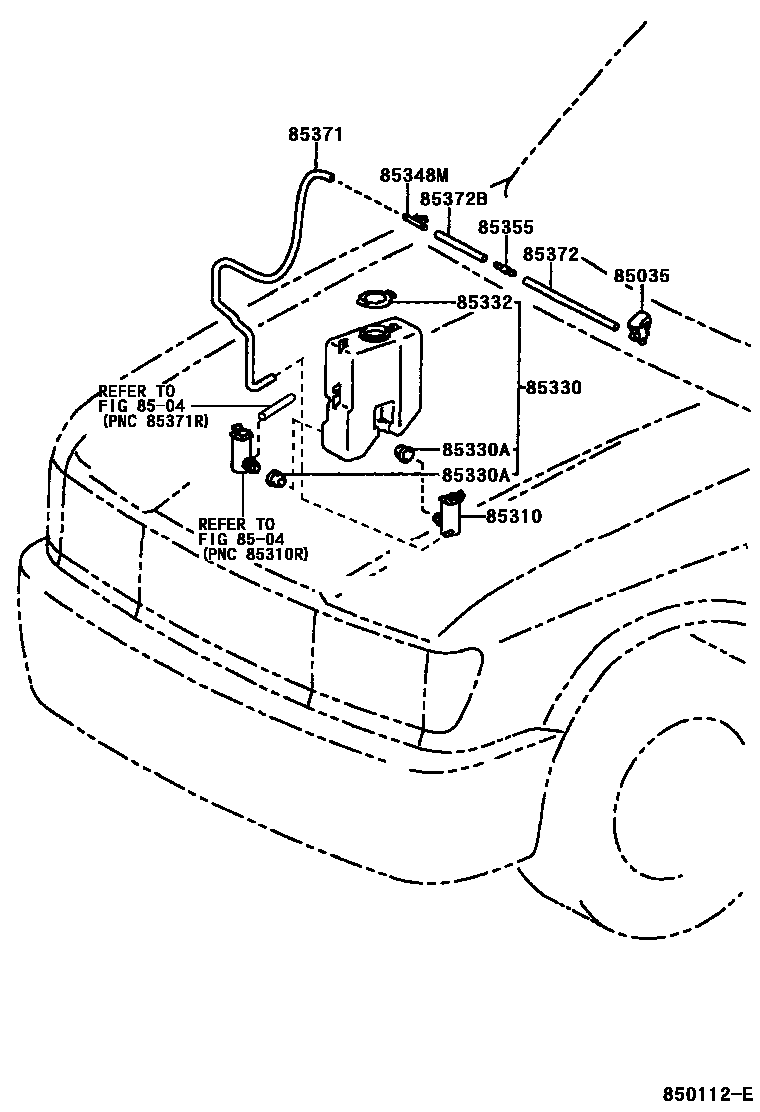

Toyota T.U.V — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-38010i200208-200406

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080i200208

85330JAR ASSY, WINDSHIELD WASHER

main85315-0B010i200208-200406

W/O(REAR WIPER)

main85315-0B020i199612-200210

main85315-0B040i199804-200212

main85315-0B070i199902-200210

main85315-0B080i200210

85330ABUSH, WINDSHIELD WASHER JAR

main90068-32001i200210-200306

W/O(REAR WIPER)

main90068-32004×2i200103-200212

main90099-32089×2i200208-200210

85332CAP, WINDSHIELD WASHER JAR

main85316-0A020i200210-200306

main85316-0B010i199612-199810

main85332-12320i200210-200612

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-17050i199810-200302

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-20800i200408-200612

85355VALVE, WINDSHIELD WASHER HOSE

main85031-12250i200103-200306

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-59002i199612-200306

L=770

main90068-59004i199612-200306

L=690

main90068-59008i200211-200501

L=760

main90068-59012i199810-200302

L=720

main90068-59016i199804-200212

L=770

main90446-07001i200210

L=1800(*H,L=720); L=1800(*H,L=760)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-59001i200103-200302

L=290

main90446-07001i200004-200306

L=1800(*H,L=150)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-59005i200208-200512

L=150

main90446-07001i200306-200503

L=1800(*H,L=290)

12 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota T.U.V

This section contains 17 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota T.U.V. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
