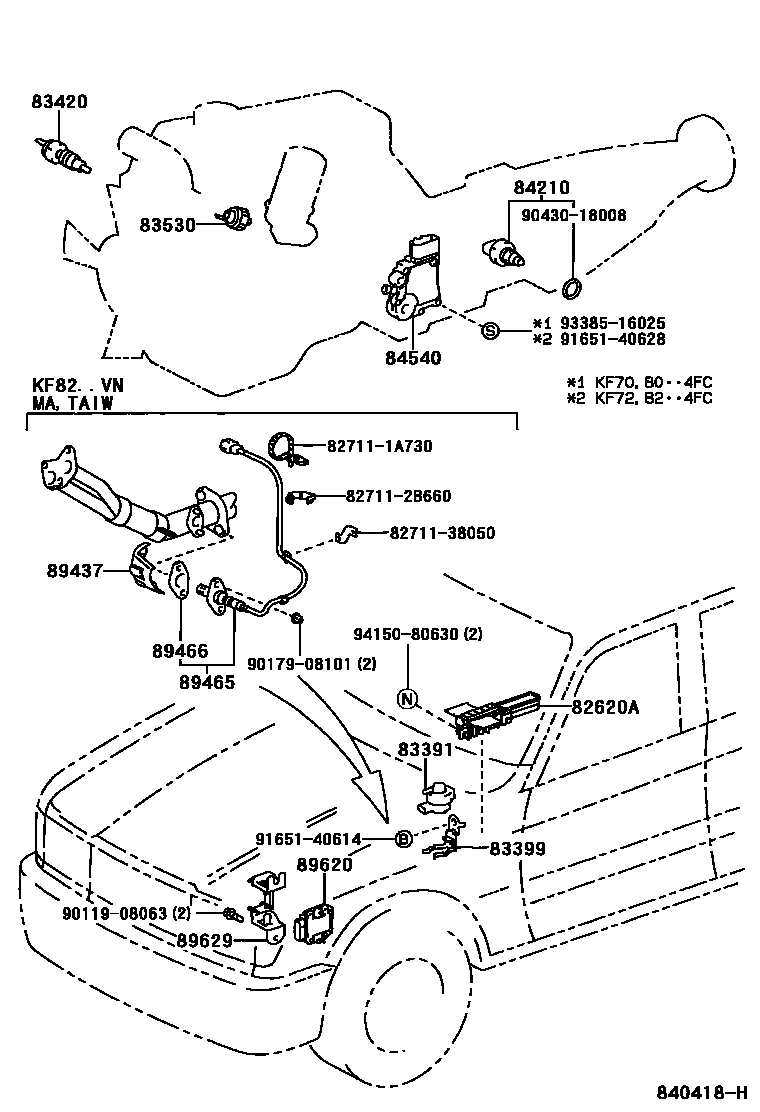

82620ABLOCK ASSY, FUSIBLE LINK

main82620-38010iKF82..RHD;KF72,80,RZF71,81..SRF..(DLX,GL,GLX)200102-200212

main82620-38020iKF80..VN200102-200302

main82620-38030iLF61,81,82,85..PHL,SA200211-200503

main82620-38040iRZF84,85..LHD;KF80..SHRW..TAIW200210-200612

83391SWITCH, VACUUM

main83391-20050iYF60,80;KF60,70,80..4F;KF70,80..(DLX,GL)..GEN199612-200012

83399BRACKET, VACUUM SWITCH

main83399-26050iKF60,70,80,YF60,80..GEN,SA200012-200306

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040×2iLF82..LHD200301-200411

main83420-20020×2iKF60..FD200408-200612

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iRZF71,80,81,84,85199911-200306

main83530-28030iYF60,80200004-200306

main83530-28040iKF82..RHD;KF60,7#,80199803-200302

main83530-30060iLF60,70,80199612-199803

main83530-30080iKF60,70,80199612-199803

sub83530-60040

main83530-60030iLF82..LHD200208-200411

84210SWITCH ASSY, BACK-UP LAMP

main84210-04010iKF80..5F..(GEN,MA,TAIW);KF60,7#,82,LF6#,8#,RZF61,80,81,85..5F..(GEN,SA,TAIW,VN)200208-200707

(L)

main84210-12040iRZF61,80,81..SA200306-200503

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-30270×2iRZF84,85..4FC200210-200612

main84540-30290iKF70,80,RZF71,81..4FC199612-200212

TOKAIRIKA

main84540-30300iKF70,80,RZF71,81..4FC199612-200212

MATSUSHITA

main84540-53010iKF72,82..4FC200001-200208

89437COVER, SENSOR

main89437-38010iKF82..VN200210-200512

89465SENSOR, OXYGEN

main89465-49095iKF60,80..TAIW199902-200210

main89465-49115iRZF84,85..LHD199911-200210

main89465-80024iKF80..MA199804-200212

89466GASKET, OXYGEN SENSOR

main89466-20020iKF82..VN200210-200512

89620IGNITER ASSY

main89621-20040iKF80..MA,PHL,TAIW,VN;KF60,72,82..(LUB,T2)..(GEN,TAIW)199804-200302

89629BRACKET, IGNITER ASSY

main89629-38010iKF80..MA,PHL,TAIW,VN;KF60,72,82..(LUB,T2)..(GEN,TAIW)199804-200302

827111A730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A730

827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B660

8271138050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-38050

9011908063

main90119-08063

9017908101

main90179-08101

9043018008

main90430-18008

9165140614

main91651-40614

9165140628

main91651-40628

9338516025

main93385-16025

9415080630

main94150-80630

22 parts on this diagram · 17 diagrams in section
