Toyota T.U.V — HORN

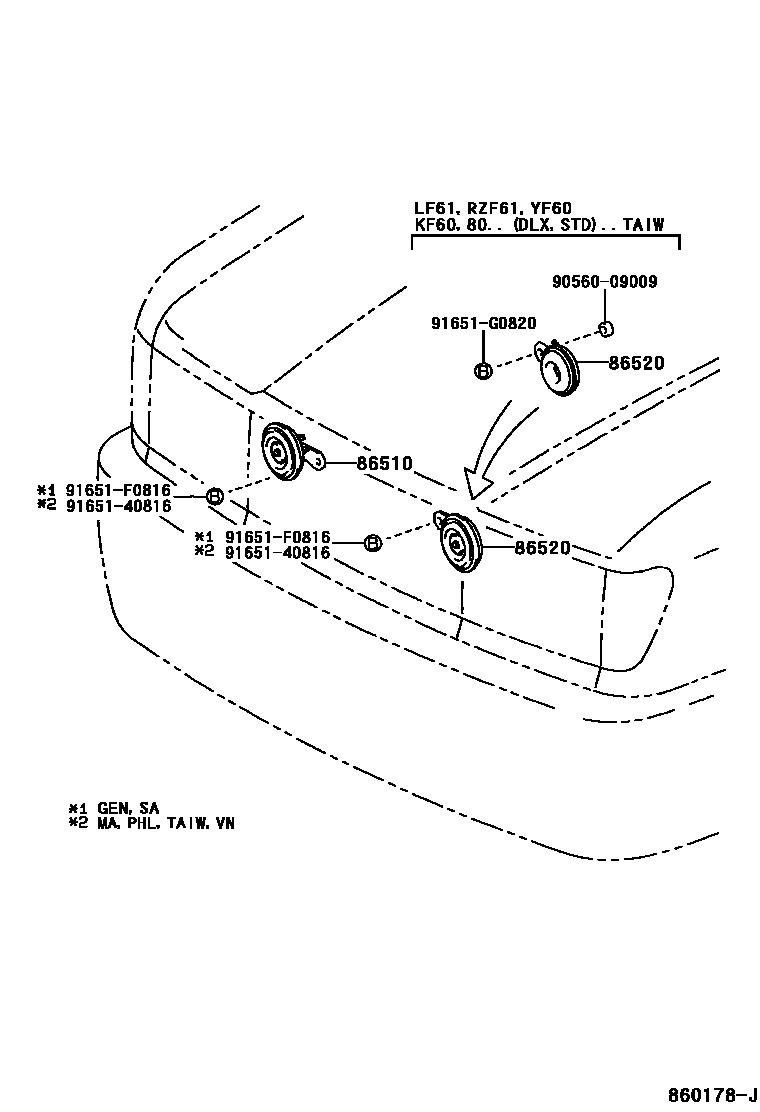

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-0B010i199612-199809

main86510-0B020i200212-200406

main86510-0B030i199810-200211

main86510-0B040i199902-200210

main86510-0B060i199809-200001

main86510-0B070i200407-200503

main86510-0B080i200210

main86510-38020i199909-200302

86520HORN ASSY, LOW PITCHED

main86520-0B010i199612-199809

main86520-0B020i200212-200407

main86520-0B030i199810-200211

main86520-0B040i199902-200210

main86520-0B070i200208-200612

main86520-0B080i200210

main86520-38020i200302-200601

9056009009

main90560-09009

9165140816

main91651-40816

91651F0816

main91651-F0816

91651G0820

main91651-G0820

6 parts on this diagram · 1 diagram in section

HORN for Toyota T.U.V

This section contains 6 genuine Toyota parts for the HORN system of the Toyota T.U.V. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
