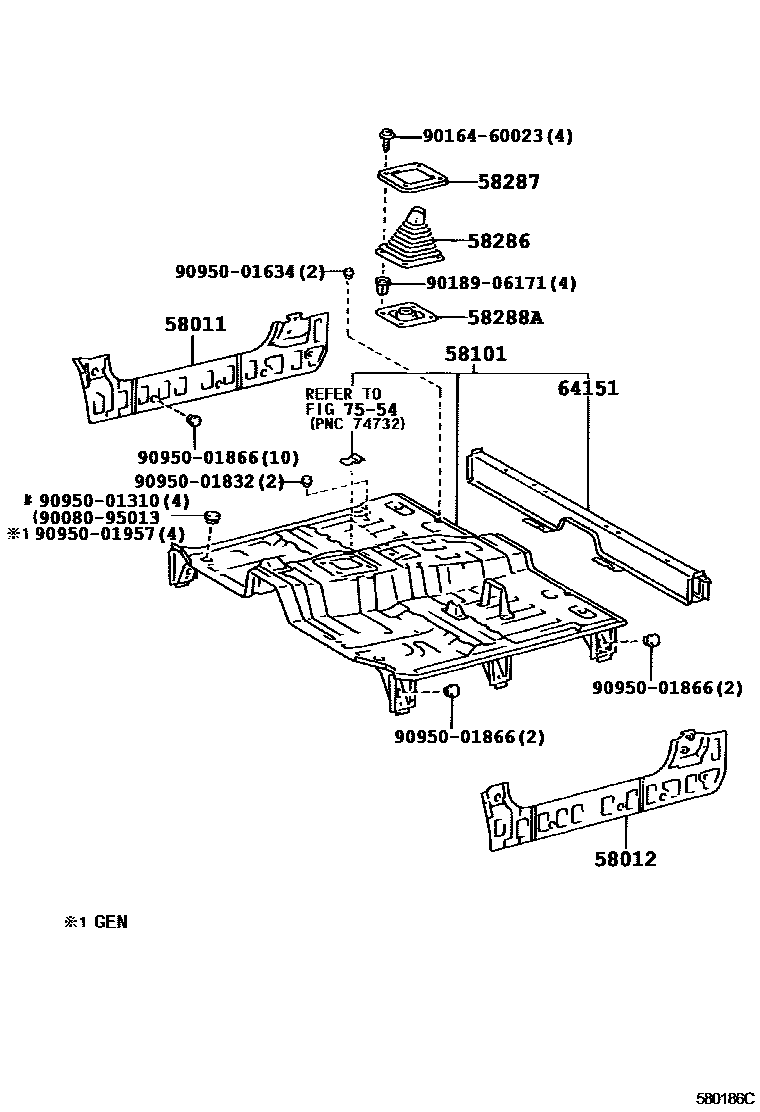

Toyota T.U.V — FRONT FLOOR PANEL & FRONT FLOOR MEMBER
58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH
main58011-0B030iKF80..(DLX,STD)..TAIW;KF80,LF80,RZF81..CBU..(GEN,MA,PHL,VN);KF82,LF61,81,82,85,RZF80,85,YF60,80..CBU..(GEN,SA)199612-200306
58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH
main58012-0B030iLF80..GEN;KF80..RHD;KF80..(DLX,STD)..TAIW;KF82,LF61,81,82,85,RZF61,80,81,82,85..(DLX,GL,STD)..(GEN,PHL,SA,VN)200208-200707
58101PAN SUB-ASSY, FRONT FLOOR
W(FRONT SEPARATE SEAT (1+2 TYPE))
W(FRONT SEPARATE SEAT (1+2 TYPE))
W(FRONT SEPARATE SEAT (1+2 TYPE))
PAPUA NEW GUINEA SPEC OR FIJI SPEC
W(FRONT SEPARATE SEAT (1+1 TYPE))
W(SIDE STEP)
58286BOOT, SHIFT & SELECT LEVER, NO.1
main58286-0B010iKF82..5F..RHD;KF60,7#,80,LF6#,80,81,82,RZF61,80,81..(DLX,STD)..(GEN,SA)200208-200612
58287RETAINER, SHIFT LEVER BOOT
58288ASEAL, SHIFT LEVER BOOT
64151FRAME, BACK
7554TOOL BOX & LICENSE PLATE BRACKET
9008095013
main90080-95013
9016460023
main90164-60023
9018906171
main90189-06171
9095001310
main90950-01310
9095001634
main90950-01634
9095001832
main90950-01832
9095001866
main90950-01866
9095001957
main90950-01957
16 parts on this diagram · 2 diagrams in section
FRONT FLOOR PANEL & FRONT FLOOR MEMBER for Toyota T.U.V
This section contains 37 genuine Toyota parts for the FRONT FLOOR PANEL & FRONT FLOOR MEMBER system of the Toyota T.U.V. Key components include: PLATE, STEP RH, PLATE, STEP LH, COVER, SIDE DOOR STEP PLATE, NO.1, COVER, SIDE DOOR STEP PLATE, NO.2.
