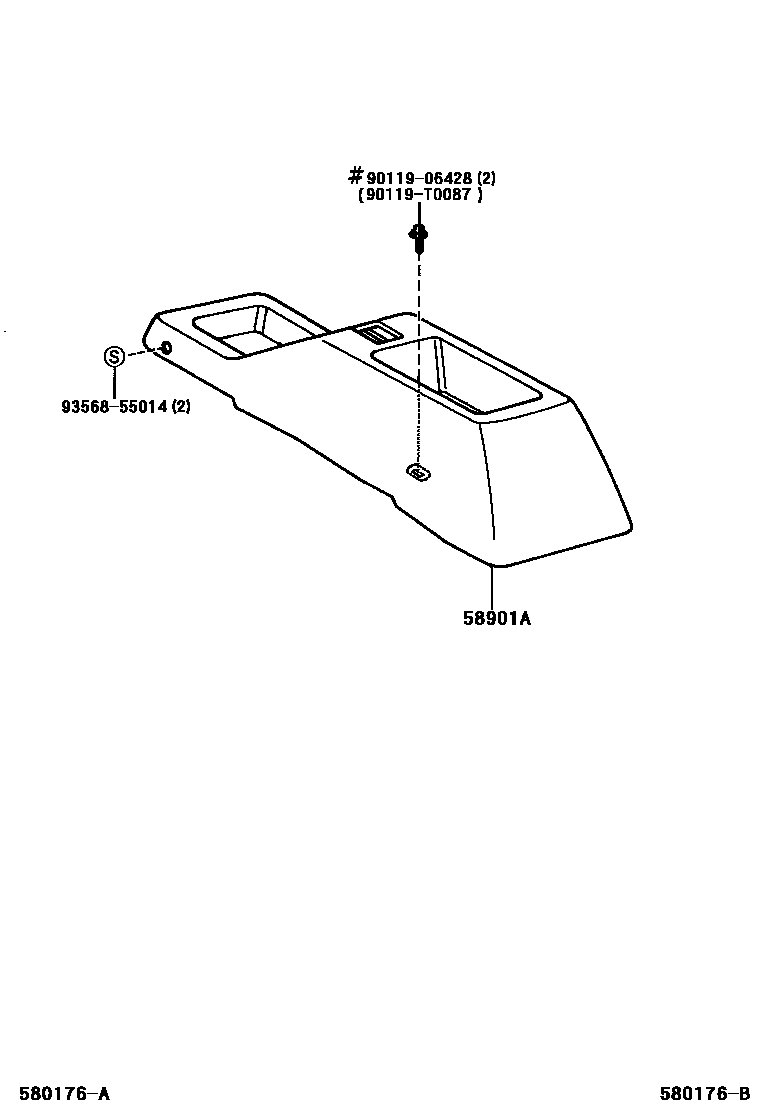

Toyota T.U.V — CONSOLE BOX & BRACKET

0001 1 0003 1 0007 1 0009 1 0013 1 0016 1 0019 1LUXURY 0021 1

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-0B010-B0iKF80..DLX..MA;KF7#,8#,LF80,82,RZF71,81..GL..RHD199612-200212

BLUISH GRAY,TRIM1#

main58901-0B020-B0iKF7#,8#,LF7#,80,82..DLX..CBU..GEN199612-200503

BLUISH GRAY,TRIM1#

main58901-0B040-B0iKF80..VN199902-200601

BLUISH GRAY,TRIM1#

main58901-0B040-B1iKF80..5F..DLX..TAIW200104-200210

BLUISH GRAY,TRIM1#

main58901-0B050-E0iKF72,8#,LF82,85,RZF80,81,85..GL..RHD200208-200503

FAWN,TRIM4#

main58901-0B060-B0iKF82..GL..VN200408-200601

WOOD GRAIN,BLUISH GRAY,TRIM1#

main58901-0B060-B0iKF80,RZF84,85..GL..TAIW200210-200707

BLUISH GRAY,TRIM1#

main58901-0B060-E0iKF80,RZF84,85..GL..TAIW200210-200707

W(SPARE WHEEL CARRIER),FAWN,TRIM4#

main58901-0B070-B0iKF82..GL..VN;KF80..DLX..TAIW200210-200707

BLUISH GRAY,TRIM1#

main58901-0B070-E0iKF80..GL200505-200707

FAWN,TRIM4#

9011906428

main90119-06428

90119T0087

main90119-T0087

9356855014

main93568-55014

4 parts on this diagram · 8 diagrams in section
