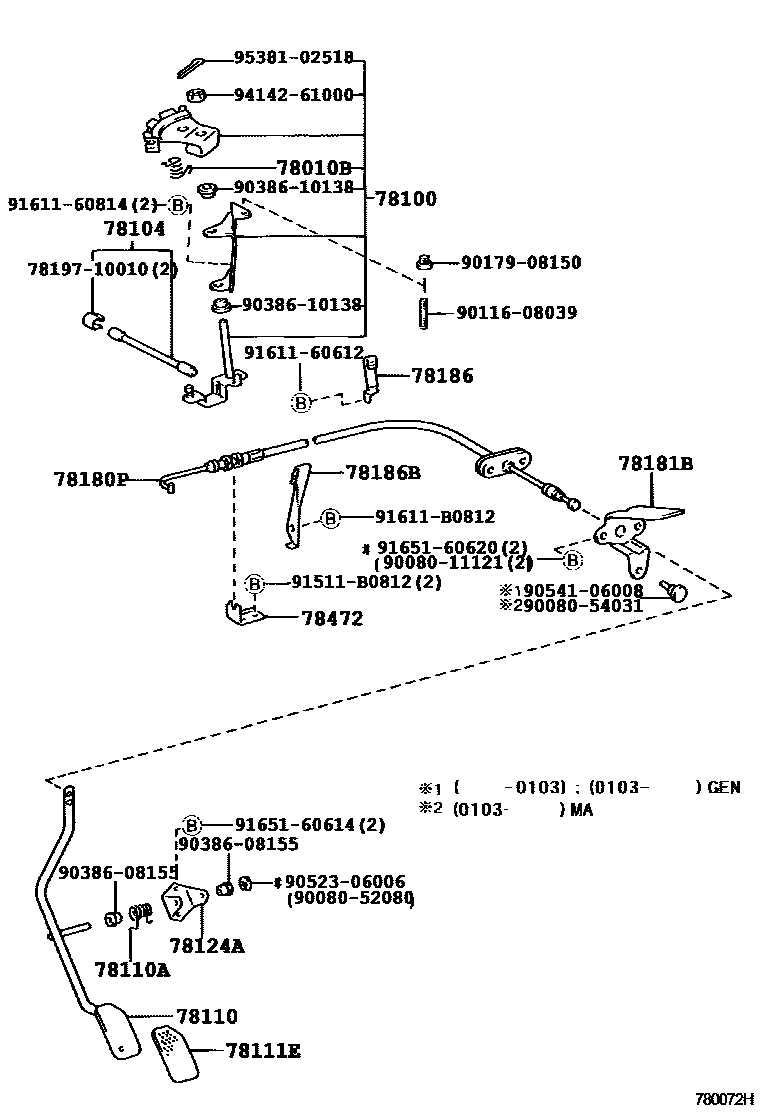

Toyota T.U.V — ACCELERATOR LINK
78010BSPRING, TORSION (FOR ACCELERATOR LINK)
78100LINK ASSY, ACCELERATOR
78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78110ROD ASSY, ACCELERATOR PEDAL
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111EPAD, ACCELERATOR PEDAL
main78111-0B010iKF82,YF60,80..GEN,SA;KF60,7#,80,LF60,72,80,82,RZF71,81,84,85..GEN,TAIW,VN200103-200306
78124ABRACKET, ACCELERATOR PEDAL ROD
78180PCABLE ASSY, ACCELERATOR CONTROL
78181BSTOPPER, ACCELERATOR IDLE ADJUSTING
main78181-38010iRZF71,81..4FC;KF82,LF82..RHD;KF60,7#,80,LF6#,7#,80,81,85,RZF80,84,85,YF60,80199612-200306
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
NO.1:REFER TO ILLUSTRATION
NO.1:REFER ILLUST.
NO.2:REFER TO ILLUSTRATION
NO.1:REFER TO ILLUSTRATION
NO.2:REFER TO ILLUSTRATION
NO.3:REFER TO ILLUSTRATION
NO.4:REFER TO ILLUSTRATION
NO.2:REFER ILLUST.
78186BSUPPORT, ACCELERATOR CONTROL CABLE NO.2
78472SUPPORT, THROTTLE CONTROL CABLE
(L)
(J)
BLACK,TRIM1#
7819710010CLIP, ACCELERATOR JOINT BALL
main78197-10010
9008011121
main90080-11121
9008052080
main90080-52080
9008054031
main90080-54031
9011608039
main90116-08039
9017908150
main90179-08150
9038608155
main90386-08155
9038610138
main90386-10138
9052306006
main90523-06006
9054106008
main90541-06008
91511B0812
main91511-B0812
9161160612
main91611-60612
9161160814
main91611-60814
91611B0812
main91611-B0812
9165160614
main91651-60614
9165160620
main91651-60620
9414261000
main94142-61000
9538102518
main95381-02518
30 parts on this diagram · 12 diagrams in section
ACCELERATOR LINK for Toyota T.U.V
This section contains 51 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota T.U.V. Key components include: SPRING, TORSION (FOR ACCELERATOR LINK), BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, LINK ASSY, ACCELERATOR, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, ROD ASSY, ACCELERATOR PEDAL.
