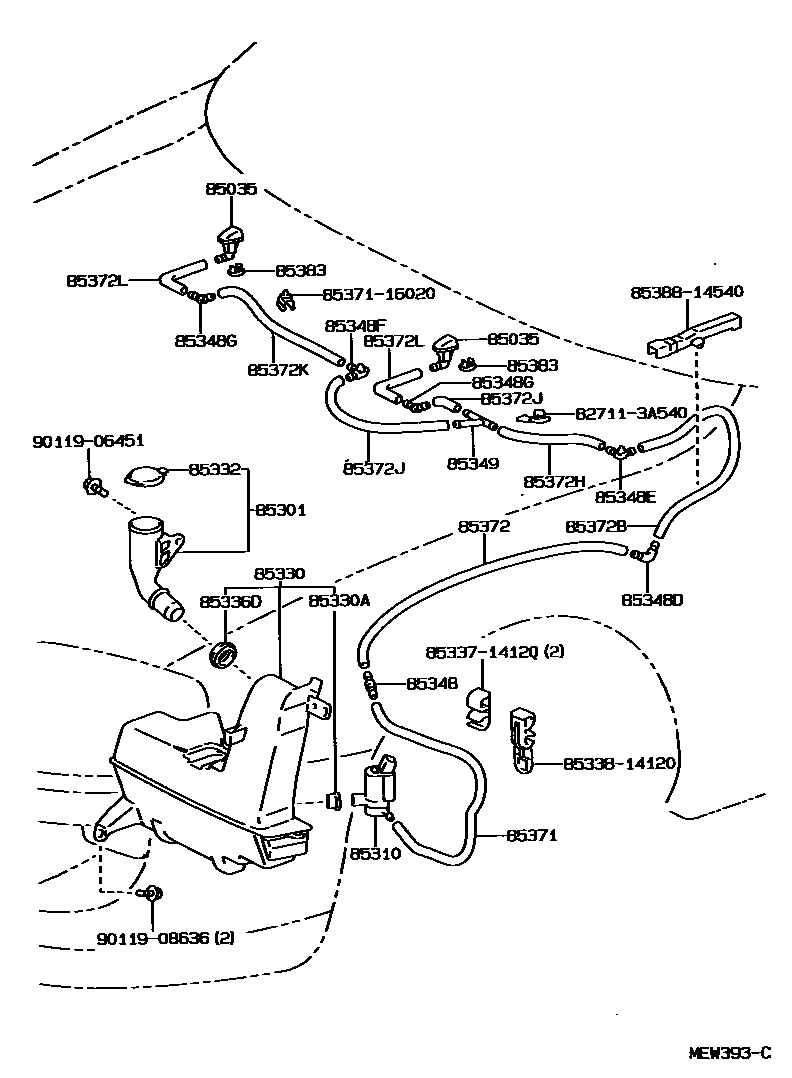

Toyota SUPRA — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
SUPER WHITE,040
SUPRA SE,SUPER WHITE PEARL M.,051
DK. BROWNISH GRAY M.,1A1
SILVER METALLIC,199
BLACK,202
SUPER RED 4,3L2
DK.GREEN M.M.,6P3
DEEP TEAL METALLIC,752
BLUE M.M.,8L5
85301INLET SUB-ASSY, WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1100
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=420)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1000(*H,L=315)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1000(*H,L=315)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=250)
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
L=1450(*H,L=350)
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
L=1450(*H,L=180)
85383HOLDER, FRONT WASHER NOZZLE
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A540
8533714120CASE, LEVEL WARNING SWITCH
main85337-14120
8533814120HOSE, BREATHER
main85338-14120
8537116020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-16020
8538814540CLAMP NO.2 (FOR WINDSEIELD WASHER)
main85388-14540
9011906451
main90119-06451
9011908636
main90119-08636
28 parts on this diagram · 1 diagram in section
