Toyota SUPRA — WINDSHIELD WASHER

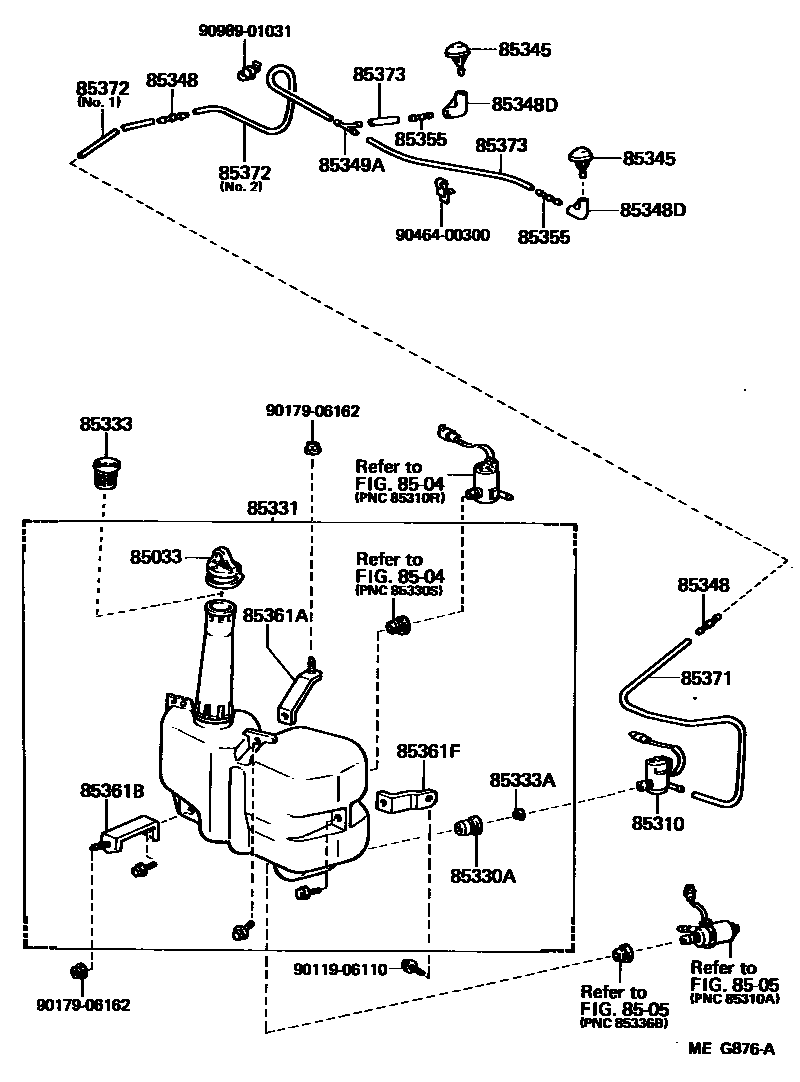

Parts diagram
85033CAP ASSY, WINDSHIELD WASHER
main85332-20441i198601-198808
8504REAR WASHER
→ Go to FIG 85-04
8505HEADLAMP CLEANER
→ Go to FIG 85-05
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-22111i198601-198808
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32103i198601-198808
85331JAR SUB-ASSY, WINDSHIELD WASHER
main85331-14690i198601-198808
main85331-14720i198601-198808
W/HEADLAMP CLEANER
85333FILTER, WINDSHIELD WASHER JAR
main85333-12470i198601-198808
85333AFILTER, WINDSHIELD WASHER JAR, NO.2
main85333-20020i198601-198808
85345NOZZLE, WINDSHIELD WASHER
main85035-14320i198601-198808
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85349-14010i198601-198808
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85355-14481i198601-198808
85349AJOINT, WINDSHIELD WASHER HOSE, NO.2
main85348-14390i198601-198808
85355VALVE, WINDSHIELD WASHER HOSE
main85031-12250i198601-198808
85361ABRACKET, WINDSHIELD WASHER, NO.1
main85361-14340i198601-198808
W/HEADLAMP CLEANER
main85361-14600i198601-198808
85361BBRACKET, WINDSHIELD WASHER, NO.2
main85362-14600i198601-198808
85361FBRACKET, WINDSHIELD WASHER, NO.3
main85363-14600i198601-198808
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33075i198601-198808
L=1100
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33075i198601-198808
L=1100,NO.1
main90099-33080i198601-198808
L=1450,NO.2
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080i198601-198808
L=1450
9011906110
main90119-06110
9017906162
main90179-06162
9046400300
main90464-00300
9098901031
main90989-01031

23 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota SUPRA

This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SUPRA. Key components include: CAP ASSY, WINDSHIELD WASHER, REAR WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
