Toyota SUPRA — VACUUM PIPING

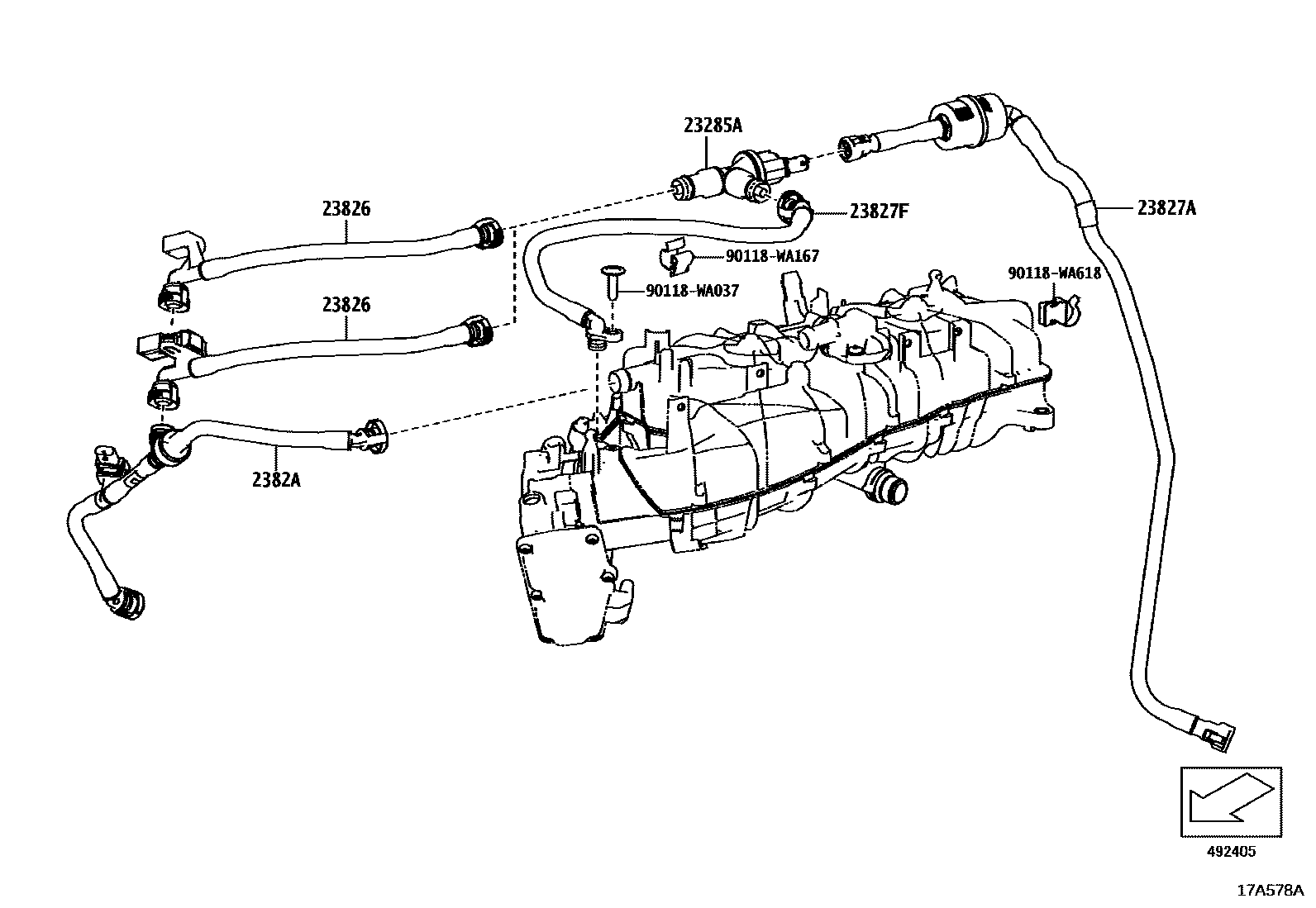

Parts diagram

23285AVALVE, CHECK, NO.1

main25748-WAA01i202003

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-WAA03i202007

main23826-WAA07i201903-202002

23827AHOSE, FUEL VAPOR FEED, NO.2

main23828-WAA01i202003

23827FHOSE, FUEL VAPOR FEED, NO.3

main23826-WAA01i202007

main23826-WAA08i201903-202002

2382AHOSE, FUEL VAPOR FEED, NO.4

main23826-WAA05i202007

main23826-WAA09i201903-202002

90118WA037

main90118-WA037

90118WA167

main90118-WA167

90118WA618

main90118-WA618

8 parts on this diagram · 3 diagrams in section

VACUUM PIPING for Toyota SUPRA

This section contains 9 genuine Toyota parts for the VACUUM PIPING system of the Toyota SUPRA. Key components include: VALVE, CHECK, NO.1, HOSE, FUEL VAPOR FEED, NO.1, HOSE, FUEL VAPOR FEED, NO.2, HOSE, FUEL VAPOR FEED, NO.3, HOSE, FUEL VAPOR FEED, NO.4.
