Toyota SUPRA — V-BELT

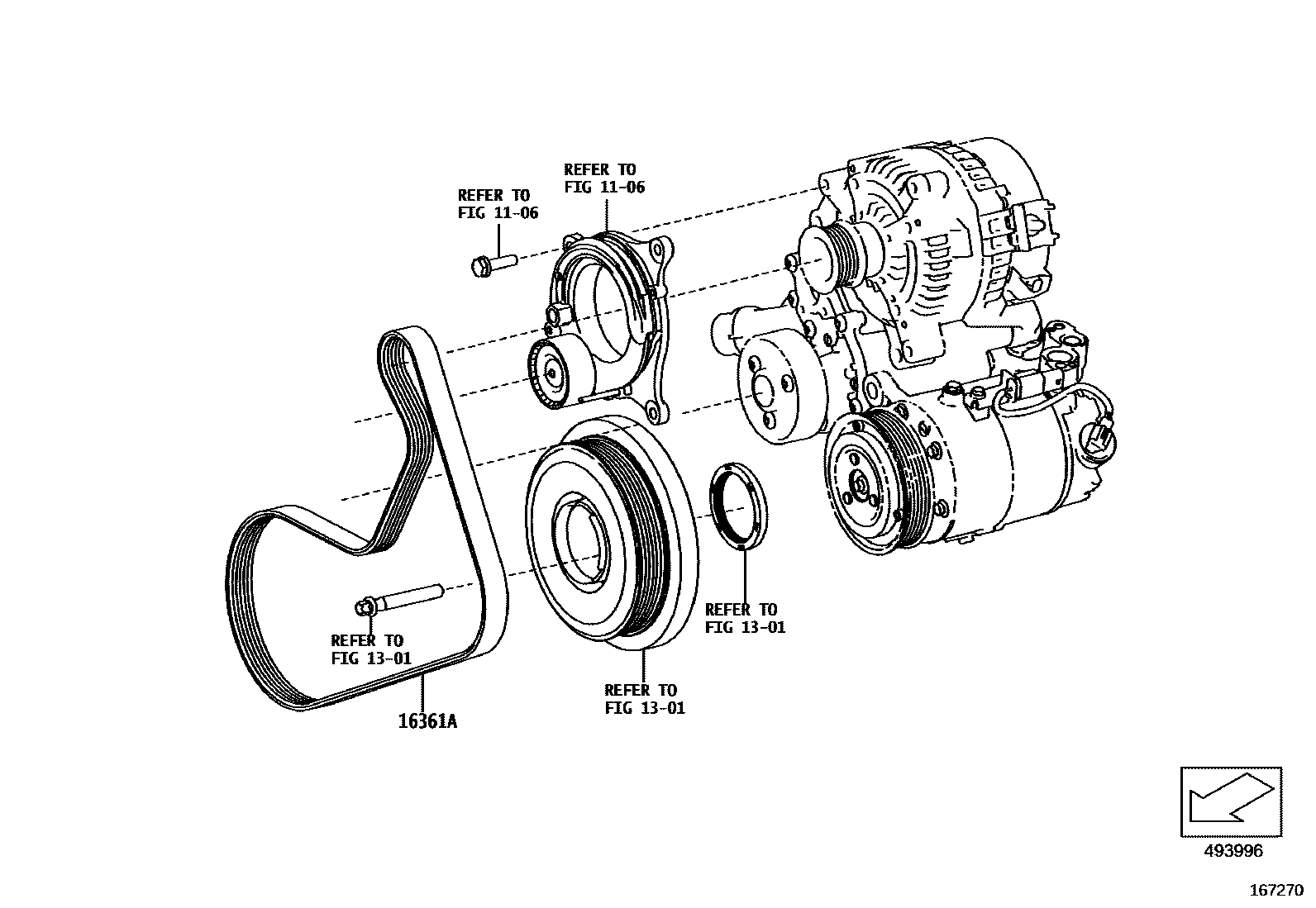

Parts diagram
1106TIMING GEAR COVER & REAR END PLATE
→ Go to FIG 11-06
1301CRANKSHAFT & PISTON
→ Go to FIG 13-01
16361ABELT, V(FOR FAN & ALTERNATOR)
main90118-WA391i201903-202002

3 parts on this diagram · 2 diagrams in section

V-BELT for Toyota SUPRA

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota SUPRA. Key components include: TIMING GEAR COVER & REAR END PLATE, CRANKSHAFT & PISTON, BELT, V(FOR FAN & ALTERNATOR).
