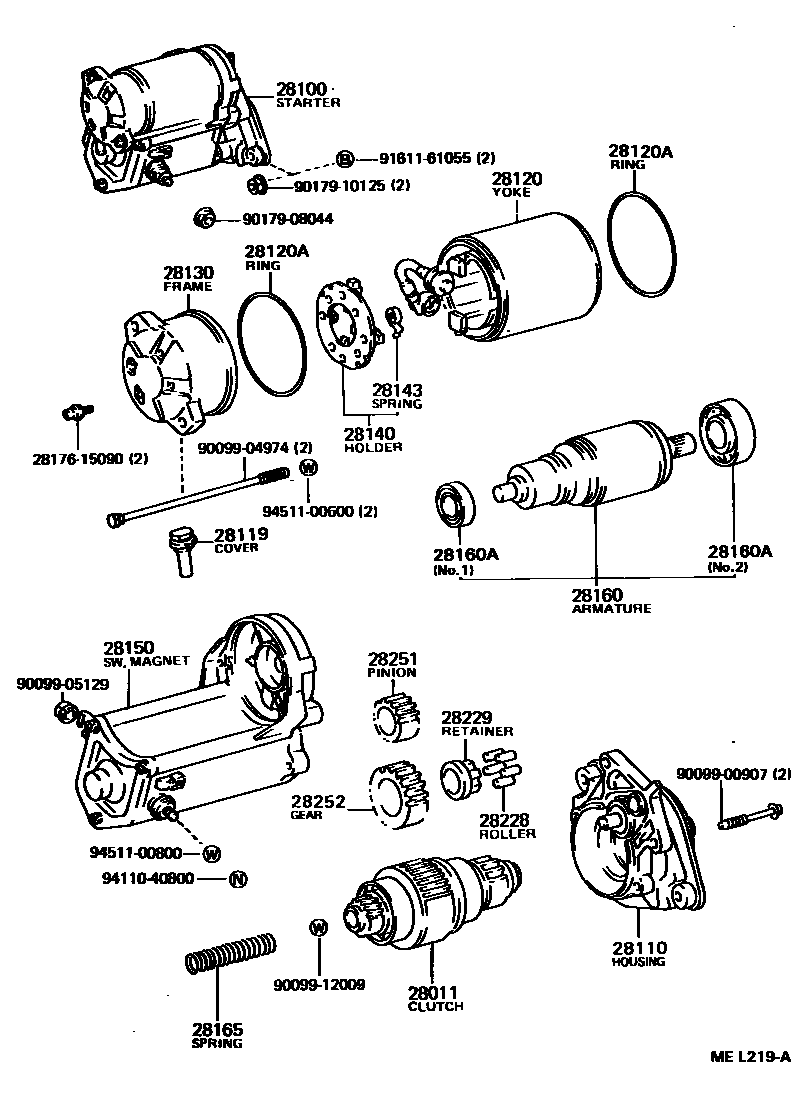

Toyota SUPRA — STARTER
28011CLUTCH SUB-ASSY, STARTER
main28011-26042i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008
28100STARTER ASSY
12V 1.4KW
28110HOUSING ASSY, STARTER DRIVE
28119COVER, STARTER END FRAME
28120YOKE ASSY, STARTER
28120ARING, O(FOR STARTER YOKE)
28130FRAME ASSY, STARTER COMMUTATOR END
28140HOLDER ASSY, STARTER BRUSH
28143SPRING, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28160ARMATURE ASSY, STARTER
main28160-15091i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008
28160ABEARING, STARTER ARMATURE
NO.2
NO.1
NO.2
NO.1
28165SPRING, STARTER MAGNET SWITCH RETURN
28228ROLLER, STARTER IDLE GEAR CLUTCH
28229RETAINER, STARTER IDLE GEAR
28251PINION, STARTER DRIVE
28252GEAR, STARTER IDLE
2817615090SCREW, STARTER
main28176-15090
9009900907
main90099-00907
9009904974
main90099-04974
9009905129
main90099-05129
9009912009
main90099-12009
9017908044
main90179-08044
9017910125
main90179-10125
9161161055
main91611-61055
9411040800
main94110-40800
9451100600
main94511-00600
9451100800
main94511-00800
28 parts on this diagram · 1 diagram in section
