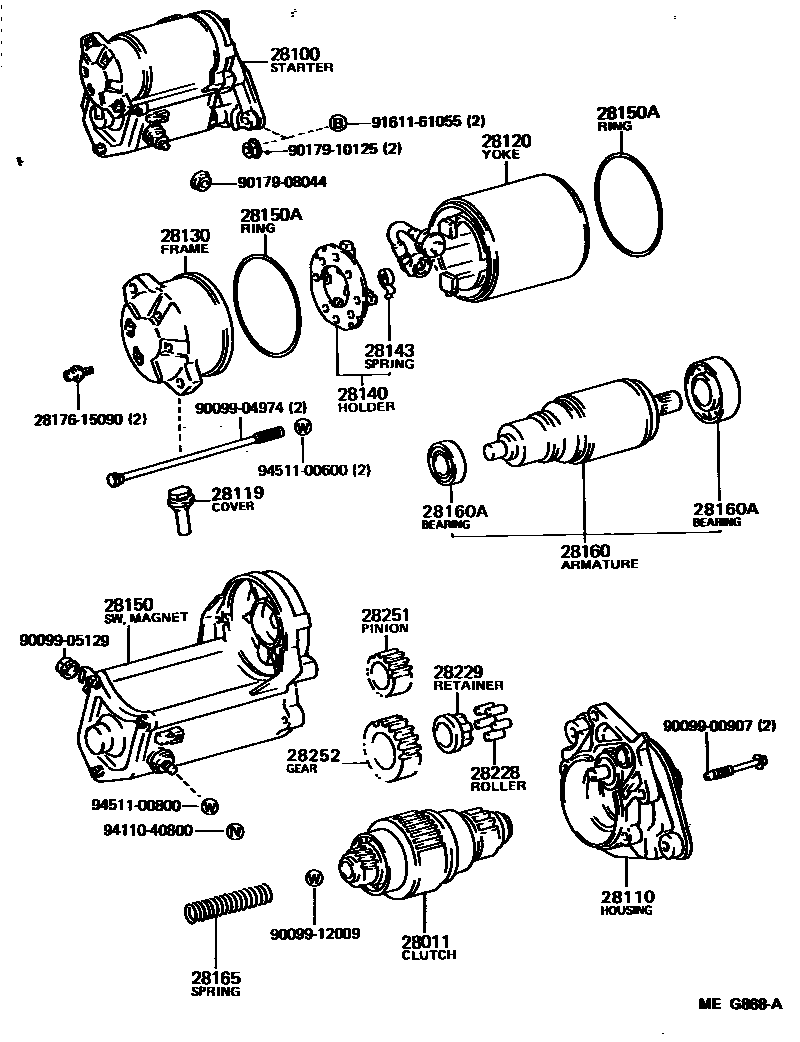

Toyota SUPRA — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i7MG#..MA70198601-198808

12V 1.4KW

28100STARTER ASSY

main28100-45050i7MG#..MA70198601-198808

12V 1.4KW,12V 1.4KW

28110HOUSING ASSY, STARTER DRIVE

main28110-45050i7MG#..MA70198601-198808

12V 1.4KW

28119COVER, STARTER END FRAME

main28199-15090i7MG#..MA70198601-198808

12V 1.4KW

28120YOKE ASSY, STARTER

main28120-15090i7MG#..MA70198601-198808

12V 1.4KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15090i7MG#..MA70198601-198808

12V 1.4KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i7MG#..MA70198601-198808

12V 1.4KW

28143SPRING, STARTER BRUSH

main90099-17112×4i7MG#..MA70198601-198808

12V 1.4KW

28150SWITCH ASSY, MAGNET STARTER

main28150-45050i7MG#..MA70198601-198808

12V 1.4KW

28150APACKING(FOR STARTER MAGNET SWITCH)

main90099-14064×2i7MG#..MA70198601-198808

12V 1.4KW

28160ARMATURE ASSY, STARTER

main28160-15090i7MG#..MA70198601-198808

12V 1.4KW

sub28160-15091

28160ABEARING, STARTER ARMATURE

main90099-10143i7MG#..MA70198601-198808

12V 1.4KW,LARGE TYPE

main90099-10144i7MG#..MA70198601-198808

12V 1.4KW,SMALL TYPE

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i7MG#..MA70198601-198808

12V 1.4KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i7MG#..MA70198601-198808

12V 1.4KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040i7MG#..MA70198601-198808

12V 1.4KW

28251PINION, STARTER DRIVE

main28251-15090i7MG#..MA70198601-198808

12V 1.4KW

28252GEAR, STARTER IDLE

main28254-45020i7MG#..MA70198601-198808

12V 1.4KW

2817615090SCREW, STARTER

main28176-15090

9009900907

main90099-00907

9009904974

main90099-04974

9009905129

main90099-05129

9009912009

main90099-12009

9017908044

main90179-08044

9017910125

main90179-10125

9161161055

main91611-61055

9411040800

main94110-40800

9451100600

main94511-00600

9451100800

main94511-00800

28 parts on this diagram · 1 diagram in section
