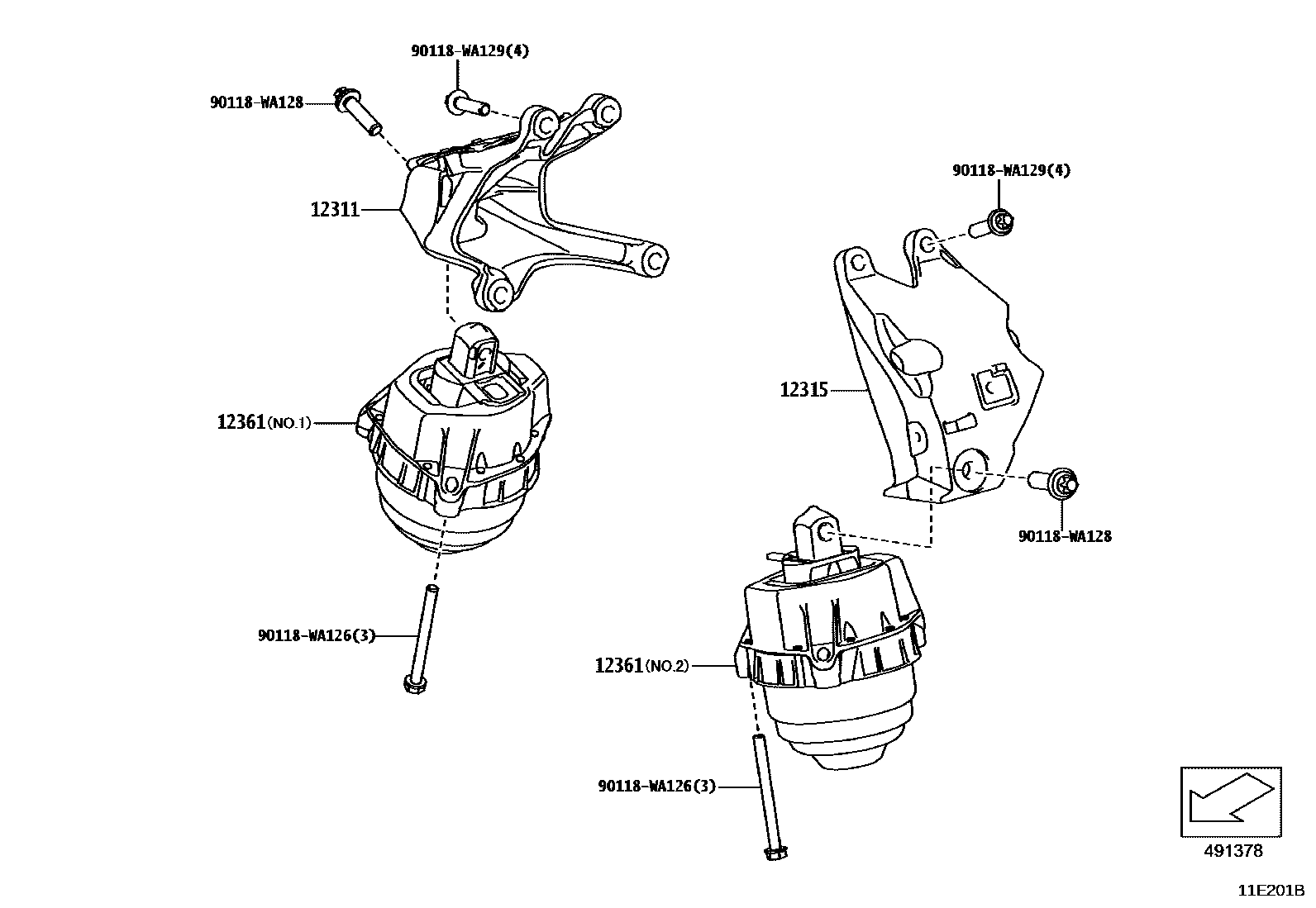

Toyota SUPRA — MOUNTING
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12361INSULATOR, ENGINE MOUNTING, FRONT
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
90118WA126
main90118-WA126
90118WA128
main90118-WA128
90118WA129
main90118-WA129
6 parts on this diagram · 3 diagrams in section
MOUNTING for Toyota SUPRA
This section contains 15 genuine Toyota parts for the MOUNTING system of the Toyota SUPRA. Key components include: CYLINDER BLOCK, BRACKET SUB-ASSY, ENGINE MOUNTING, REAR, BRACKET, ENGINE MOUNTING, FRONT NO.1 RH, BRACKET, ENGINE MOUNTING, BRACKET, ENGINE MOUNTING, FRONT NO.1 LH.
