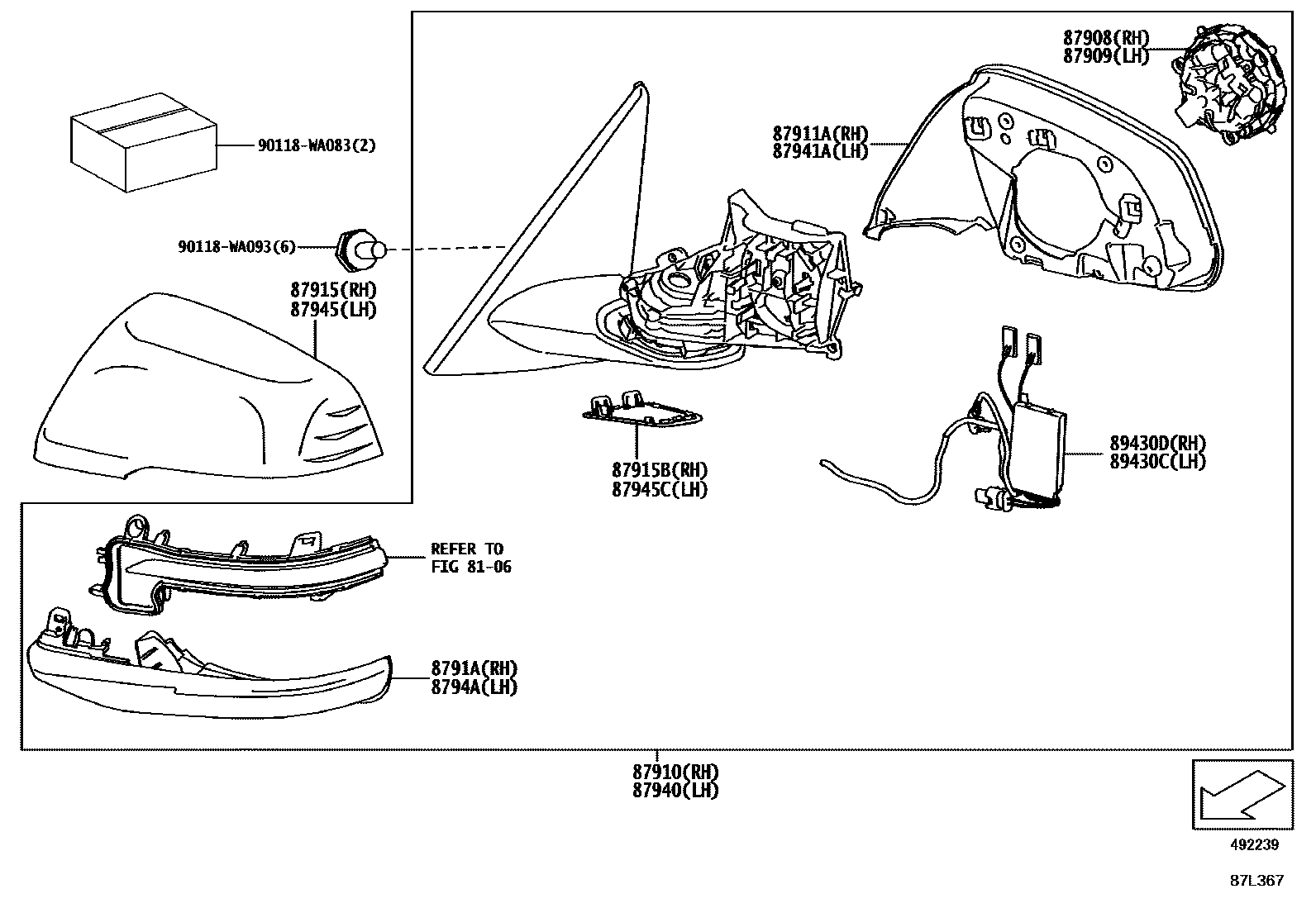

Toyota SUPRA — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT)
ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT)
87915COVER, OUTER MIRROR, RH
NO PAINT REQ.,BLACK MATT
NO PAINT REQ.,LAUNCH EDITION BLACK MIRROR PACKAGE,BLACK 2; NO PAINT REQ.,MAT WHT ED*(B) OR PLAS ORN 100 ED*(C),BLACK 2; NO PAINT REQ.,SPECIAL CONTROL SPECIAL EDITION PACKAGE,BLACK 2; NO PAINT REQ.,TRACK EDITION PACKAGE,BLACK 2; NO PAINT REQ.,TRACK EDITION RED MIRROR PACKAGE,BLACK 2; NO PAINT REQ.,WITHOUT,BLACK 2
NO PAINT REQ.,LAUNCH EDITION RED MIRROR PACKAGE,RED
87915BCOVER, OUTER MIRROR, LOWER RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT)
ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT)
87945COVER, OUTER MIRROR, LH
NO PAINT REQ.,BLACK MATT
NO PAINT REQ.,LAUNCH EDITION BLACK MIRROR PACKAGE,BLACK 2; NO PAINT REQ.,MAT WHT ED*(B) OR PLAS ORN 100 ED*(C),BLACK 2; NO PAINT REQ.,SPECIAL CONTROL SPECIAL EDITION PACKAGE,BLACK 2; NO PAINT REQ.,TRACK EDITION PACKAGE,BLACK 2; NO PAINT REQ.,TRACK EDITION RED MIRROR PACKAGE,BLACK 2; NO PAINT REQ.,WITHOUT,BLACK 2
NO PAINT REQ.,LAUNCH EDITION RED MIRROR PACKAGE,RED
87945CCOVER, OUTER MIRROR, LOWER LH
89430CCOMPUTER ASSY, OUTER MIRROR CONTROL, LH
ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT)
89430DCOMPUTER ASSY, OUTER MIRROR CONTROL, RH
ACTIVE SAFETY PACKAGE-WITH(DRIVING ASSISTANT)
90118WA083
main90118-WA083
90118WA093
main90118-WA093
17 parts on this diagram · 4 diagrams in section
MIRROR for Toyota SUPRA
This section contains 22 genuine Toyota parts for the MIRROR system of the Toyota SUPRA. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH.
