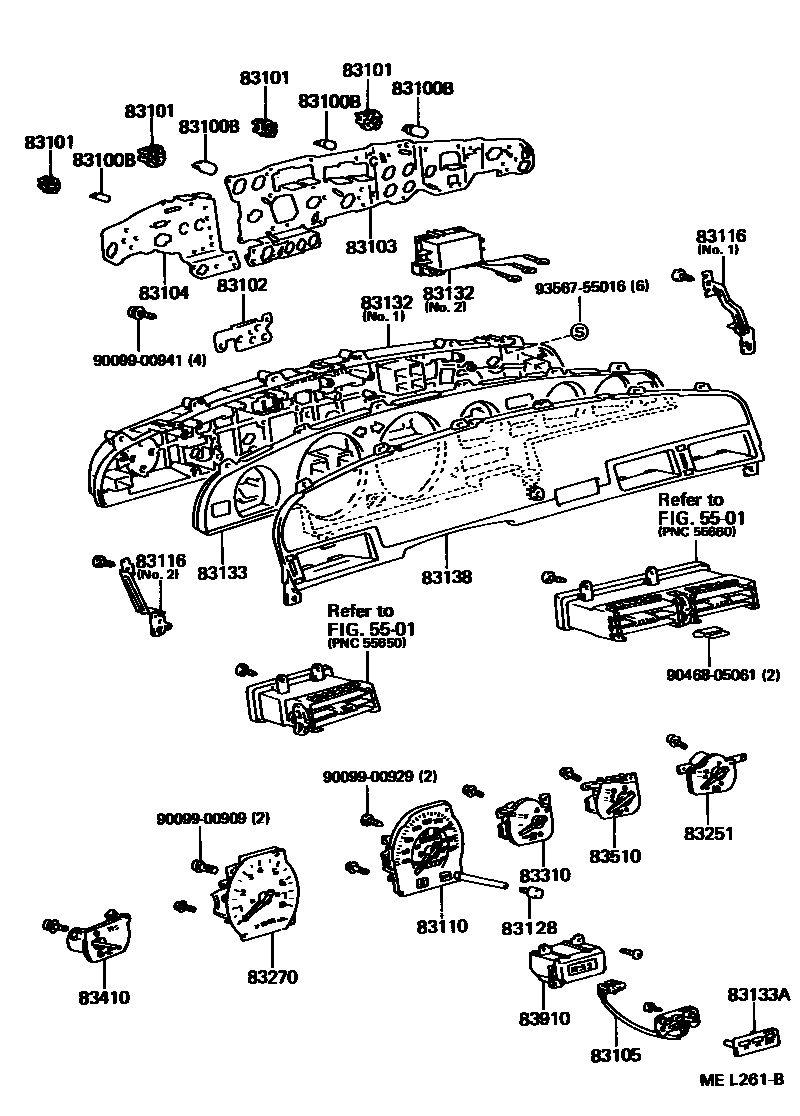

Toyota SUPRA — METER

0001 1 0002 1 0003 1

5501

83100BBULB, COMBINATION METER, NO.1

main83109-24010iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

12V 1.4W,GREEN CAP,SOCKET=83101-14040

main83109-24020×4iMA70198808-198908

12V3.4W W(GREEN CAP),SOCKET=83101-14030

main90981-11018×9iMA70..5F198808-198908

12V 1.2W W/O SOCKET,SOCKET=83101-14040

main99132-12034×4iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

12V 3.4W,SOCKET=83101-14030

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×8iMA70..CND199108-199305

BULB=12V 3.4W

main83101-14040×11iMA70..5F..USA199108-199305

BULB=12V 1.4W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-1J530iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-15710iMA70..CND199108-199305

main83247-1B240iMA70..TWT..USA198808-198908

main83247-1B260iMA70..TWT..CND198808-198908

main83247-1B780iMA70..TWC..USA198908-199305

main83247-1B800iMA70..TWC..USA198908-199305

W(TEMS)

main83247-1B820iMA70..TWT..USA198908-199305

main83247-1B840iMA70..TWT..USA198908-199305

W(TEMS)

main83247-1B860iMA70..TWC..CND198908-199008

main83247-1B880iMA70..SPR..TWT..CND198908-199008

main83247-1D880iMA70..4FC..CND199008-199108

main83247-1J280iMA70..TWT..USA198808-198908

W(TEMS)

main83247-1J770iMA70..TWC..USA198808-198908

main83247-1J790iMA70..TWC..USA198808-198908

W(TEMS)

main83247-1J810iMA70..TWC..CND198808-198908

83104PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3

main83247-15050iMA70..5F199008-199305

main83247-15070iMA70..4FC198908-199305

main83247-1D800iMA70..5F198808-198908

main83247-1D820iMA70..4FC198808-198908

83105PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.4

main83247-1J140iMA70198808-198908

83110SPEEDOMETER ASSY

main83110-1B151iMA70..USA198808-198908

main83110-1B152iMA70..USA198908-199008

main83110-1B153iMA70..USA199008-199305

main83110-1B161iMA70..CND198808-198908

main83110-1B162iMA70..CND199108-199305

83116BRACKET, SPEEDOMETER

main83116-14150iMA70198808-198908

NO.1

main83116-14170iMA70198808-198908

NO.2

83128KNOB, TRIP COUNTER

main83128-10260iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

83132CASE, COMBINATION METER

main83132-1B680iMA70..5F199108-199305

NO.1

main83132-1B700iMA70..4FC199108-199305

NO.1

main83132-1J710iMA70..5F..CND199008-199108

NO.1

main83132-1J730iMA70..4FC..CND198908-199108

NO.1

main83132-1J870iMA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

NO.2

83133PLATE, COMBINATION METER, NO.1

main83133-14700iMA70..USA198808-199008

main83133-14720iMA70..USA198808-199008

W(TEMS)

main83133-14740iMA70..CND198808-198908

main83133-1D110iMA70..USA199008-199305

main83133-1D130iMA70..USA199008-199305

W(TEMS)

main83133-1D150iMA70..CND199008-199305

83133APLATE, COMBINATION METER, NO.2

main83133-14840iMA70199008-199305

83138GLASS, SPEEDOMETER

main83138-1B190iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199008

83251METER, VOLTAGE

main83251-14830iMA70..TWC198808-199305

main83251-14850iMA70..TWT..USA198808-199305

main83251-14870iMA70..TWT..CND198808-198908

83270TACHOMETER ASSY, ENGINE

main83242-15310iMA70..5F..TWC..USA198908-199008

main83242-15330iMA70..4FC..TWC..USA198908-199008

main83242-15350iMA70..5F..TWT..USA198908-199008

main83242-15370iMA70..4FC..TWT..USA198908-199008

main83242-15390iMA70..5F..TWC..CND198908-199008

main83242-15410iMA70..4FC..TWC..CND198908-199008

main83242-15430iMA70..5F..CND199008-199305

main83242-15450iMA70..4FC..TWT..CND198908-199008

main83242-1D610iMA70..5F..TWC..USA198808-198908

main83242-1D630iMA70..4FC..TWC..USA198808-198908

main83242-1D650iMA70..5F..TWT..USA198808-198908

main83242-1D670iMA70..4FC..TWT..USA198808-198908

main83242-1D690iMA70..5F..TWC..CND198808-198908

main83242-1D710iMA70..4FC..TWC..CND198808-198908

main83242-1D730iMA70..5F..TWT..CND198808-198908

main83242-1D750iMA70..4FC..TWT..CND198808-198908

main83242-1J310iMA70..5F..TWC199008-199305

main83242-1J330iMA70..4FC..TWC199008-199305

main83242-1J350iMA70..5F..TWT..USA199008-199305

main83242-1J370iMA70..4FC..TWT..USA199008-199305

main83242-1J390iMA70..4FC..CND199008-199305

83310GAGE ASSY, FUEL RECEIVER

main83243-1B050iMA70..USA198808-199305

main83243-1B070iMA70..TWC..CND;MA70..SPR..TWT..CND198908-199008

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-1B350iMA70198808-198908

83510GAGE ASSY, OIL PRESSURE RECEIVER

main83246-14870iMA70..USA198808-199305

main83246-14890iMA70..TWC..CND;MA70..SPR..TWT..CND198908-199008

83910CLOCK ASSY

main83910-14351iMA70198808-198908

9009900909

main90099-00909

9009900929

main90099-00929

9009900941

main90099-00941

9046805061

main90468-05061

9356755016

main93567-55016

25 parts on this diagram · 3 diagrams in section
