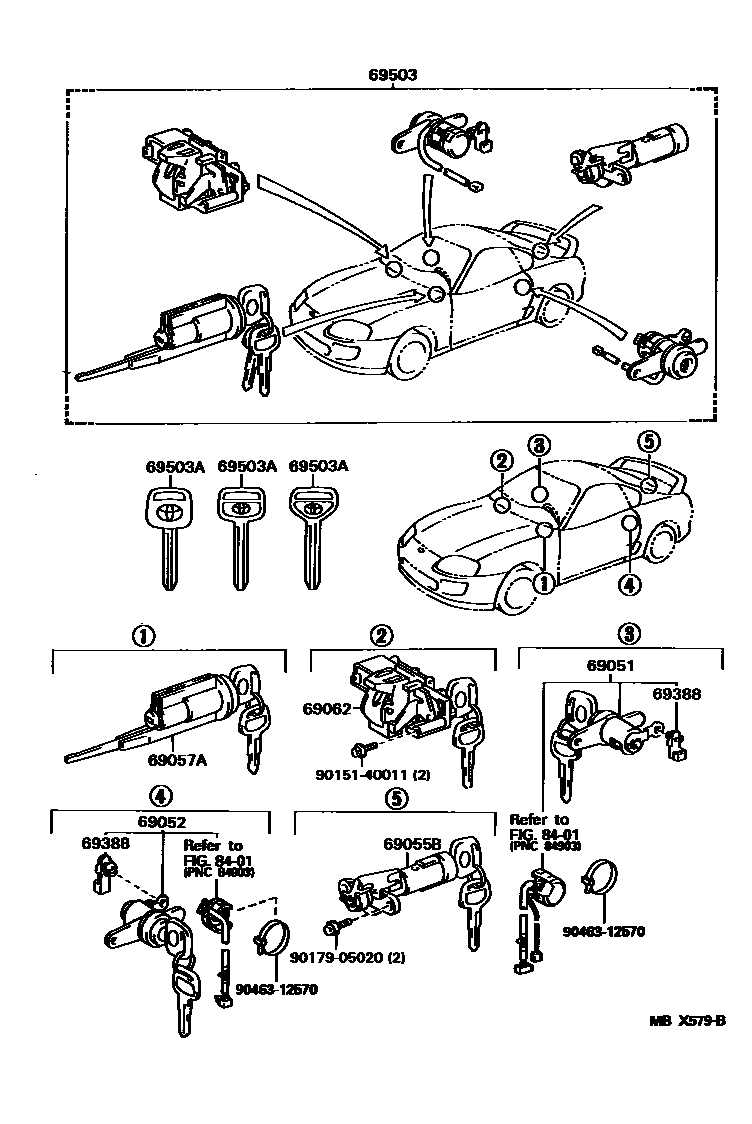

Toyota SUPRA — LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055BCYLINDER & KEY SET, BACK DOOR LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69388SNAP, ROD(FOR DOOR LOCK)
RH
LH
69503CYLINDER SET, LOCK
69503AKEY, BLANK
MASTER KEY,W(*68)
MASTER KEY
SUB KEY
8401SWITCH & RELAY & COMPUTER
9015140011
main90151-40011
9017905020
main90179-05020
9046312570
main90463-12570
12 parts on this diagram · 1 diagram in section
LOCK CYLINDER SET for Toyota SUPRA
This section contains 12 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota SUPRA. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK.
